HARDWARE SETUP

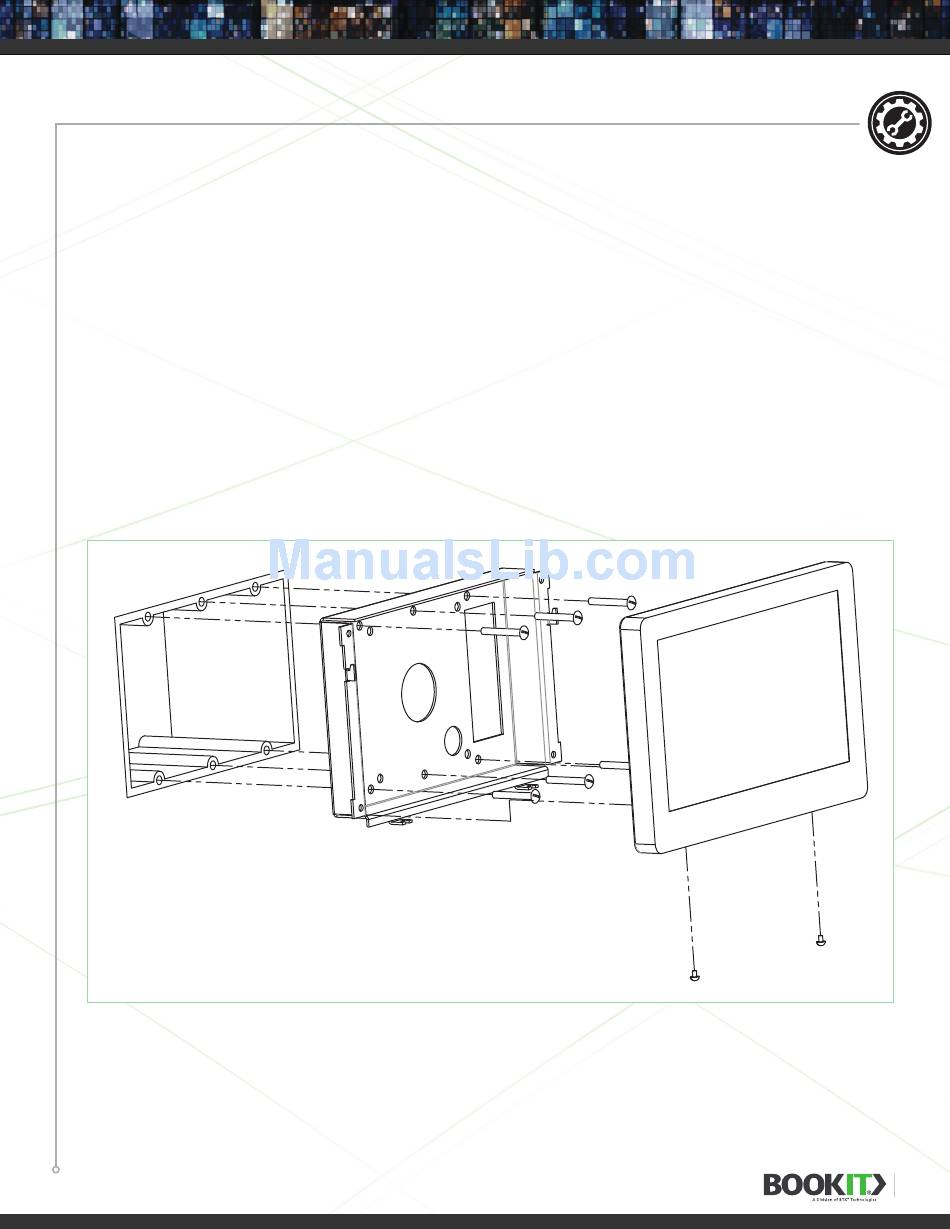

BOOKIT MOUNTING INSTRUCTIONS - SWITCH BOX MOUNTING
®
BookIT can be installed on a 3 gang switch box (example: Garvin Industries
using the BTX-BOOKITWM (sold separately).
Loosen the two bottom mounting screws but do not remove them completely.
1
Remove the included mounting bracket and discard or save for future use.
2
Place the BTX-BOOKITWM against the pre-installed 3 gang switch box so that the mounting holes align.
3
4 Install six 6-32 screws included with the BTX-BOOKITWM and tighten until the bracket is secure.
5 Plug the network cable into the BookIT display, if not using WiFi. Also plug in the power adapter
if PoE is not available.
6 Hang unit on the mounted bracket.
7 Secure the bottom mounting screws.
