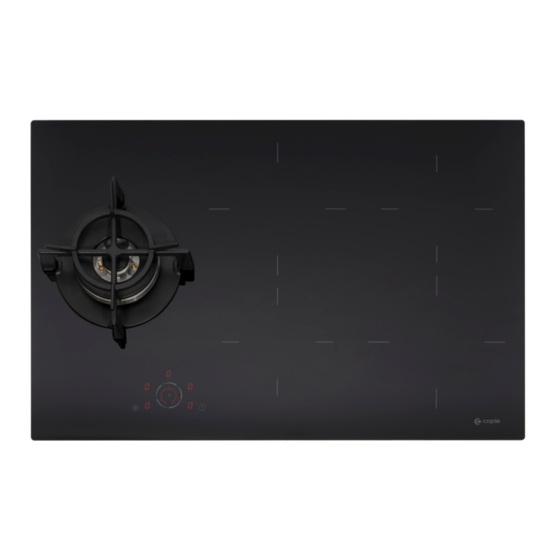

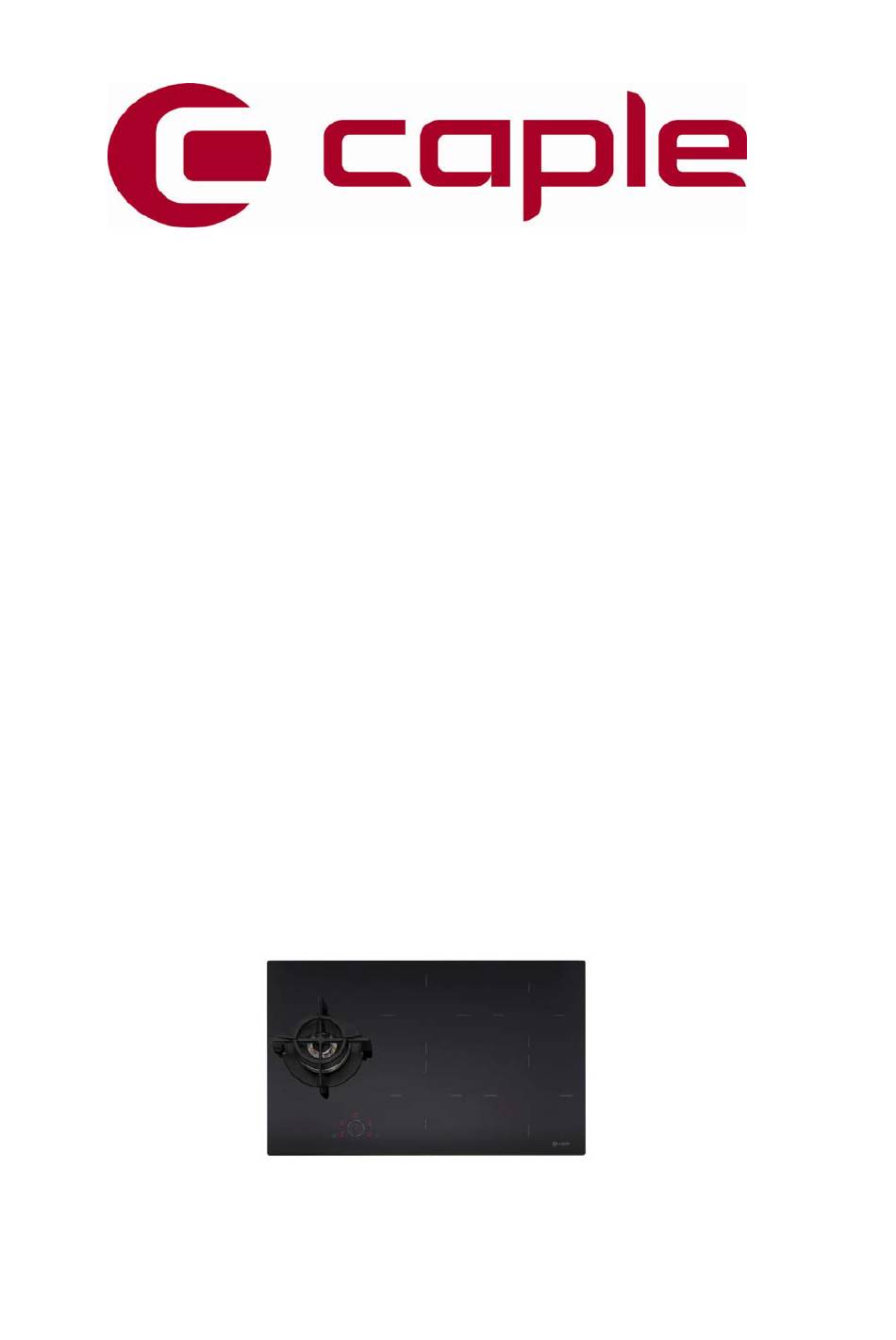

- Page 1 C896IBK Caple 78cm induction + gas Technical information Technical information...
- Page 3 C896IBK - Caple 78cm induction + gas Item Part Code Description A10154-0 CONNECTION CABLE A10712-0 CONNECTION BOX A11070-0 CABLE 4 WIRES FOR INDUCT. A11166-0 CABLE 4 WIRES A20064-0 CABLES 2 WIRES A20184-0 DUAL SINGLE BURNER GAS VALVE A20186-0 PAN SUPPORT DUAL...
-
Page 6: Configuration Procedure
CONFIGURATION PROCEDURE What to do when the symbol [ E 4 ] appears : I) The hob must be reconfigured according to the following procedure: Before you start the procedure: Make sure that there is no more pot on the hob. Use a pan adapted to induction. - Page 7 GAS TYPE CONFIGURATION PROCEDURE To change the gas type : I) The hob must be reconfigured according to the following procedure: Before you start the procedure: Make sure that there is no more pot on the hob. Disconnect the appliance from the electrical network by removing the fuse or turning the circuit breaker off Reconnect the table to the electrical network.
- Page 8 D44850-0 INDUGAS ERROR CODE Legend: Visual Control TC = Touch Control panel Cable LIN = White Cable 0.25 mm (ex : connection between TC and Filter Board PCB). No appropriated measure IHE = Induction Heating Element GPU = Gas power unit Measure with multimetre What to do…...
- Page 9 D44850-0 INDUGAS What to do… Error Code Provisional error code Description Potential Failure Measure Temperature sensor indicates overheat of induction coil A cool down is necessary Error is disappearing when cooling down IHE over Cooking zone has temperature Wrong overheated (maybe pot Replace IHE with sensor if E2 algorithm calculated boiled without food...)
- Page 10 D44850-0 INDUGAS What to do… Error Code Provisional error code Description Potential Failure Measure Defective Lin Bus cable Check the mains connection Communication Absence of power failure between TC Check and/or change Lin Bus cable supply and IHE Replace the IHE IHE not connected Frequency problem Check the frequency and voltage...
- Page 11 D44850-0 INDUGAS What to do… Error Code Provisional error code Description Potential Failure Measure minutes, error display shows message “E H“ As soon as the hob is installed, please check if it works properly. If you cannot turn on the appliance, please double check the electrical connections on both sides of the power cord.
- Page 12 D44850-0 INDUGAS What to do… Error Code Provisional error code Description Potential Failure Measure Cyclic bar Reconfigure the TC Defective or missing Lin display Bus cable between CU Review or replacement of Lin Bus and IHE Er31 Cable TC failure Er47 Replace TC Key evaluation defect,...
- Page 13 D44850-0 INDUGAS What to do… Error Code Provisional error code Description Potential Failure Measure Check main valve connection Short-circuited coil Coil resistance of the main valve out of range Measure coil resistance Supply line broken, GE01 E078, E121 driver circuit defective, No power supply at Replace main valve main valve coil...
- Page 14 D44850-0 INDUGAS What to do… Error Code Provisional error code Description Potential Failure Measure switching the burner stepper motor driver and motor valves 2. Short-circuit in switched +5V circuit Maybe reset of Power supply failure controller Voltage level 5V of power supply is permanently out of range...
- Page 15 D44850-0 INDUGAS What to do… Error Code Provisional error code Description Potential Failure Measure Controller flash defective, checksum not correct GE10 E008 Replace GPU Programming option not correct EEPROM checksum GE10 E044 Replace GPU not correct EEPROM data not GE10 E045 Replace GPU plausible...
- Page 16 D44850-0 INDUGAS What to do… Error Code Provisional error code Description Potential Failure Measure E001, E002, E005, E006, E007, E034, E035, E036, E038, E039, E048, E049, E050, E051, E052, E120, Timeout failure Severe external Disconnect powerline for at least 1 E124, E127, GE10 during software...
- Page 17 D44850-0 INDUGAS What to do… Error Code Provisional error code Description Potential Failure Measure Check wiring for short circuits E043, E064 Burner circuits GE71 Check valve unit E059, E173 locked Replace GPU All burner circuits GE81 E187 GPU defective Replace GPU locked 21/30 Créé...
- Page 18 ADVICE & HELP / AFTER SALES INDUCTION TC MULTI LITE SLIDER 1. To detect the wrong breakdowns : 1-1 Connection to the electric network: Control the tightening of the screws of the connection box Control the section of the cables used (see manual of use) ...
- Page 19 1-2 Gas connection: This cooktop must be installing and connect by a qualified technicians, installation of equipment must be in line with the relevant national standard. Ensure that the local distribution conditions (nature of the gas and gas pressure) and the adjustment of the appliance (indicate on the rating label) are compatible.
- Page 20 1-4 Pan dimensions for gas: The pan must be adapted to the burner. The use of a too large pot can affect the performance of the burner. The use of a too small pot can cause an overheating of the pot and therefore damage it.
- Page 21 1-5 Ventilation: The ventilation starts as soon as the heating zones reach a certain level of temperature. This ventilation goes on cooling the heating zones even after the stop of cooking. 1-6 Securities: In case of overflow, the hob stops as soon as 2 keys at least of the control panel are covered with the liquid of overflow.
- Page 22 Then, either slip on the SLIDER to regulate gradually from 1 to P, or press the selected level for a direct access. If no pan is put on the selected cooking zone, or if the pan is taken away during the cooking, or if the pan is not adapted to induction, you will have the following display: 10/15...
