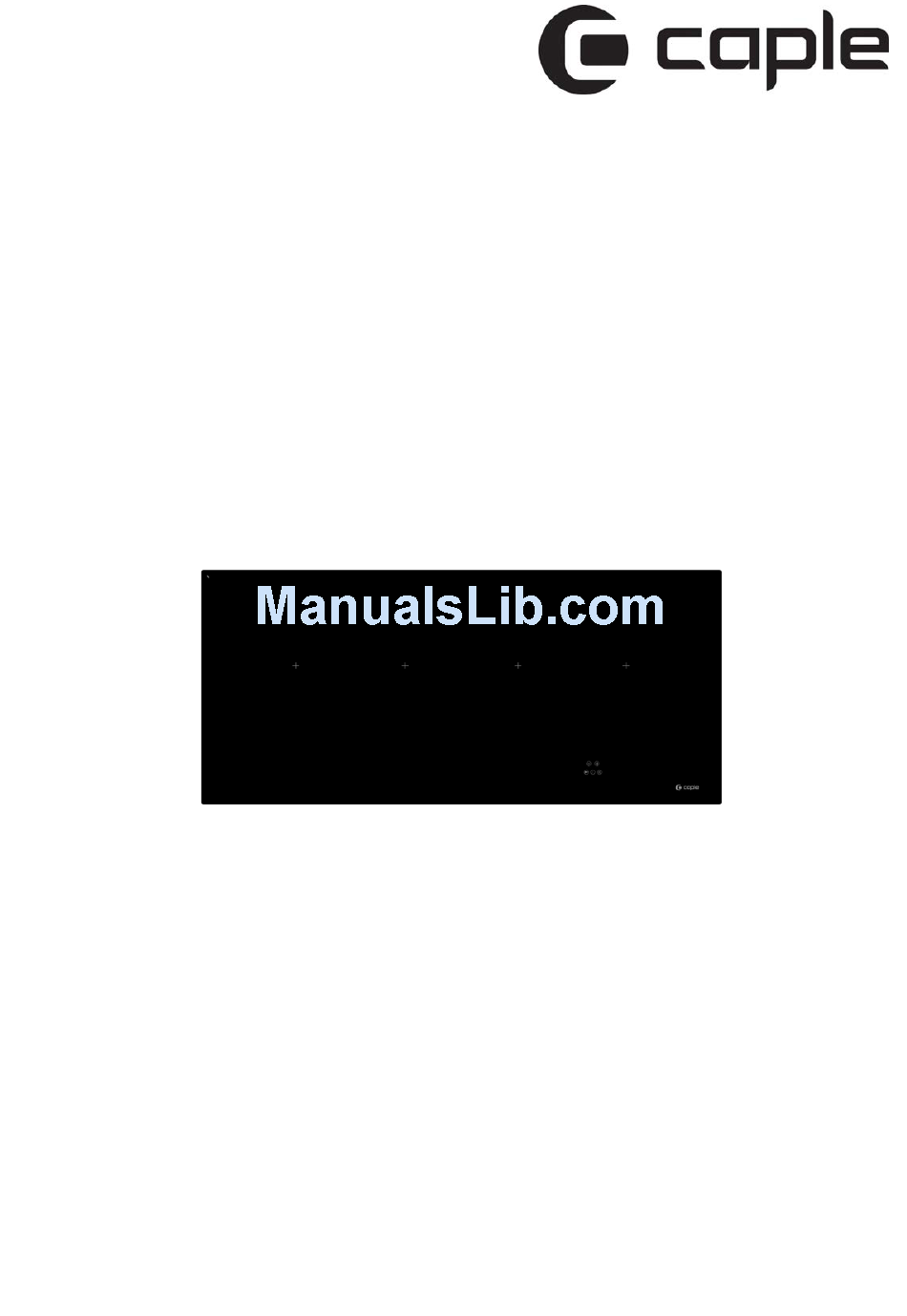

- Page 1 Instruction manual for induction hob Model code: C875I Contact Caple on 0844 800 3830 or for spare parts www.caple.co.uk...
-
Page 3: Table Of Contents
Summary Safety ............................4 Before using you hob for the first time ..................4 Using the appliance ........................4 Take care not to damage the appliance ..................5 In case of appliance failure ......................5 Other information ........................5 Description of the appliance ......................6 Technical characteristics ...................... -
Page 4: Safety
Safety Before using your hob for the first time Unpack all the materials. The installation and connection of the appliance must be done by approved specialists. The manufacturer cannot be responsible for damage caused by installation or connection errors. ... -
Page 5: Take Care Not To Damage The Appliance
In case of appliance failure If a defect is noticed, switch off the appliance and turn off the electrical supplying. If the ceramic glass is cracked or damaged, you must unplug the appliance and contact Caple service. ... -
Page 6: Description Of The Appliance
Total Power pan diameter heating zones Power* Power* Power* detection 4 zones: C875I 7400 W 2100 W 2600 W 3700 W 100 mm 220x180 mm * The given power may change according to the dimensions and material of the pan. -
Page 7: Ventilation
Ventilation The cooling system is fully automatic. The cooling fan starts with a low speed when the heat brought out by the electronic system reach a certain level. The ventilation starts at high speed when the hob is intensively used. The cooling fan reduces speed and stops automatically when the electronic circuit is cooled sufficiently. -
Page 8: Starting-Up
Starting-up your hob Start up / switch off the hob: Action Control panel Display To start press key [ [ 0 ] To stop press key [ nothing or [ H ] Start up / switch off a heating zone: Action Control panel Display... -
Page 9: Timer
Start / Stop Booster+ Action Control panel Display Start up the Booster slide to the end of the “SLIDER” [ P ] or press directly on the end of the “Slider” Start up Booster+ re-press directly on the end of the “Slider”... -
Page 10: Automatic Cooking
Egg timer function: The Egg timer is an independent function. It stops as soon as a heating zone starts up. If the egg timer is on and the hob is switched off, the timer continues until time runs out. Action Control panel Display... -
Page 11: Recall Function
Recall Function After switching off the hob ( ), it is possible to recall the last settings. cooking stages of all cooking zones (Booster) minutes and seconds of programmed cooking zone-related timers Keep warm function Automatic cooking The recall procedure is following: ... -
Page 12: Cooking Advice
Cooking advice Pan quality Suitable materials for use with Induction: steel, enamelled steel, cast iron, ferromagnetic stainless-steel, aluminium with ferromagnetic bottom. Materials not suitable for Induction : aluminium and stainless-steel without ferromagnetic bottom, copper, brass, glass, ceramic, porcelain. The manufacturers specify if their products are compatible induction. To check if pans are compatible you can: ... -
Page 13: Examples Of Cooking Power Setting
Examples of cooking power setting (the values below are indicative) 1 to 2 Melting Sauces, butter, chocolate, gelatine Reheating Dishes prepared beforehand 2 to 3 Simmering Rice, pudding, sugar syrup Defrosting Dried vegetables, fish, frozen products 3 to 4 Steam Vegetables, fish, meat 4 to 5 Water... -
Page 14: Environment Preservation
The control panel displays [ Er47 ] : The hob is not connected to the network. Check the connection and reconnect the hob. If one of the symbols above persists, please contact Caple Service on 0844 800 3830. Environment preservation ... -
Page 15: Installation Instructions
The cut out size is as follows: Model Cut-size C875I 890 x 390 mm Ensure that there is a distance of 50mm between the hob and the wall or sides. The hobs are classified as “Y” class for heat protection. Ideally the hob should be installed with plenty of space on either side. -
Page 16: Electrical Connection
Electrical connection The installation of this appliance and the connection to the electrical network should be entrusted only to a qualified electrician to comply with regulations and ensure they are respected scrupulously. Protection against the parts under tension must be ensured after the building-in. ... -
Page 20: Environmental Protection
CE Declarations of Conformity This appliance has been manufactured to the strictest standards and complies with all applicable legislation, Low Voltage Directive (LVD) and Electromagnetic Compatibility Directive (EMC). Caple Fourth Way Avonmouth BS11 8DW www.caple.co.uk 18343/0...
