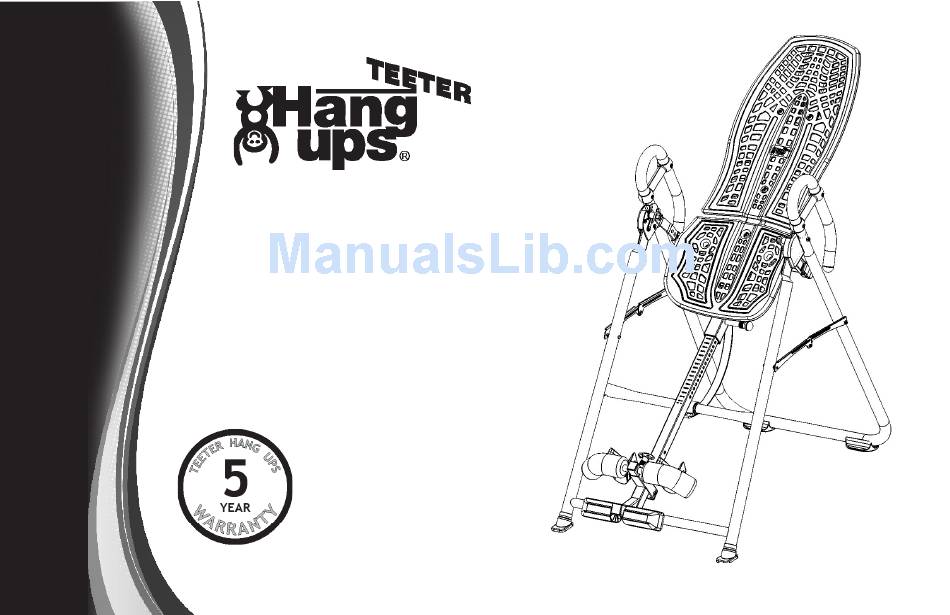

- Page 1 600ia ™ Inversion Table Assembly Instructions* *Inversion Table images may vary slightly from your model.
- Page 2 BEFORE YOU BEGIN: Review all steps before beginning assembly and read all precautions before using the inversion table. Carefully adhere to the Assembly Instructions and Owner’s Manual to help ensure safety and product integrity. IMPORTANT SAFETY INSTRUCTIONS READ ALL INSTRUCTIONS BEFORE USING THE INVERSION TABLE. WARNING WARNING - To reduce the risk of injury to persons: •...
- Page 3 BEFORE YOU BEGIN: Review all steps before beginning assembly and read all precautions before using the inversion table. Carefully adhere to the Assembly Instructions and Owner’s Manual to help ensure safety and product integrity. IMPORTANT SAFETY INSTRUCTIONS READ ALL INSTRUCTIONS BEFORE USING THE INVERSION TABLE. WARNING •...
- Page 4 Items for Assembly Items are not shown to scale. If you have any questions on assembly, contact Customer Service at 1-800-847-0143 or visit our website at teeter-inversion.com. ITEMS FOR ASSEMBLY ITEM NUMBER ITEMS FOR ASSEMBLY ITEM NUMBER ITEMS FOR ASSEMBLY...
- Page 5 Before Beginning Before reading further, study the drawing below to familiarize yourself with the important components of your new Teeter Hang Ups 600ia™ Inversion Table. ® Head Pillow Bed Frame Extension FitFlex™ Table Bed 3-Hole Roller Hinges Traction Support™ Handles...
- Page 6 Ankles must be properly secured before use. REPLACE LABEL IF DAMAGED, ILLEGIBLE, OR REMOVED. IA-2007 0611-1 We hope you enjoy your new Teeter Hang Ups Inversion Table! If you have any questions, please contact our Customer Service Department at 1.800.847.0143 or www.teeter-inversion.com.
- Page 7 Step FIGURE 1 Lower Bolt (1) Upper Bolts (2) Assemble the Table Bed (F1-1300) and Bed Frame Extension (F1-1380) NOTE: This assembly will be referred to as Table Bed (F1-1300) for the remainder of the Assembly Instructions. • Locate the following items to assemble the FitFlex Table Bed: Upper Portion (F1-1300A) Lower Portion &...
- Page 8 Step FIGURE 4 Assemble the front Stability Feet (IA-1101) onto the A-Frame (IA-2500) Feet may come pre-assembled. • Steady both sides of the A-Frame so that the legs will not swing open and turn the A-Frame so that the base points upwards. This will give you downward leverage to secure the Stability Feet (Figure 4).
- Page 9 Step 3 FIGURE 7 Assemble the 3-Hole Roller Hinges (F5-1065) to the Table Bed (F1-1300) • For ease-of-assembly, rest the Table Bed against the Crossbar (Figure 7). • Open the Cam Locks on each side of the Table Bed (Figure 8). •...
- Page 10 Step 4 FIGURE 11 Attach the Table Bed (F1-1300) to the A-Frame (IA-2500) • Pick up the Table Bed, holding each side near the Roller Hinges, and stand in front of the A-Frame where the Crossbar is located (refer to Figure 6 to determine A-Frame Front). •...
- Page 11 Step 5 FIGURE 13 Install the Front Ankle Bar Assembly (F5-1045) into the Main Shaft (IA-1600) • Insert the Front Ankle Bar (F5-1045) into the Front Ankle Bar Housing (Figure 13). Pull up on the T-Pin Lock to insert the Front Ankle Bar all the way and release in the shortest setting (the hole closest to the Front Ankle Bar).
- Page 12 Step 6 FIGURE 15 Insert the Main Shaft (IA-1600) into the Table Bed (F1-1300) • With the Height Adjustment Settings on the Main Shaft facing up, slide the end of the Main Shaft into the Main Shaft Housing (Figure 15) on the Table Bed. •...
- Page 13 A-Frame backwards and must be corrected. upside down into the Table Bed and must be corrected. We hope you enjoy your new Teeter Hang Ups Inversion Table! If you have any questions, please contact our Customer Service Department at 1.800.847.0143 or www.teeter-inversion.com.
- Page 14 Step 7 FIGURE 17 Assemble the Traction Support Handles (IA-1670) to the A-Frame (IA-2500) Bolts/Nuts may come pre-assembled in the Handles. Simply unscrew to remove. • Insert the Left and Right handles into the A-Frame (Figure 17), so that the long part of the handles are parallel with the rear legs of the A-Frame.
- Page 15 Step 8 FIGURE 20 Assemble the Angle Tether (F5-1007) to the Table Bed (F1-1300) • The Tether will come pre-assembled to the A-Frame. • Unfold the adjustable Tether and clip it to the U-Bar on the underside of the Table Bed (Figure 20).
- Page 16 • For your reference, the serial number can be found on the back of the Table Bed. WARNING Read the Owner’s Manual thoroughly before using your Teeter Hang Ups Inversion Table. Improper settings could result in serious injury or death!
- Page 17 Adjusting the Roller Hinge Setting FIGURE 23 Adjustments: Changing the Roller Hinge Setting To adjust the Roller Hinge setting, you’ll need to fully remove the Table Bed from the A-Frame. • Remove the Angle Tether from the U-Bar located on the underside of the Table Bed. •...
- Page 18 Maintenance/ Storage FIGURE 26 Maintenance • To clean the Inversion Table, wipe down with a damp cloth. Do not use abrasive cleaners or solvents. Storage • Remove the Angle Tether from the U-Bar located on the underside of the Table Bed. •...
- Page 19 30175 Hannover, Germany the UL Listing. U.S. and Foreign Patents Pending. Teeter Hang Ups is a registered trademark of Teeter. Specifications subject to change without notice. © COPYRIGHT 2012 Teeter. International Law Prohibits Any Copying. L1-6001 1212-1...
