Specifications

Processor
CPU
Cell/B.E. (1)
Cache memory
512 KB (PPU)
CPU clock speed 3.2 GHz
GPU
RSX (1)
GPU local memory
256 MB
Memory
System memory XDR + ECC (on board) / 1 GB
Sub-memory
DDR2-333 (on board) / 1 GB
Storage device
Internal hard disk drive
160 GB (Serial ATA 2.5 in.)
External connection ports
NETWORK-1, -2
RJ45
10 Base-T/100 Base-TX/1000 Base-T
USB
USB A × 2
RS-232C
9-pin D-sub (male) × 1
Data transfer rate: 38.4 Kbps
IN 1 to 4 (HD-SDI input)
BNC × 4, 75Ω
Signal format: SMPTE 292M standard
Signaling rate: 1.5 Gbps
Cable length: 100 m (approx. 328 ft.)
(when using 5C-FB cable (Belden
1694 equivalent))
Video*: 1080/59.94i, 1080/50i,
1080/23.98PsF, 1080/24PsF,
1080/25PsF, 1080/29.97PsF,
720/59.94p, 720/50p
OUT1 1 to 4 (HD-SDI output)
BNC × 4, 75Ω
Signal format: SMPTE 292M standard
Signaling rate: 1.5 Gbps
Video*: 1080/59.94i, 1080/50i,
1080/23.98PsF, 1080/24PsF,
1080/25PsF, 1080/29.97PsF,
720/59.94p, 720/50p
REF IN
BNC, 75Ω termination
HD tri-level sync / SD black burst
Tri-level sync is not supported for the
720p format.
* The supported video formats differ depending on the
application software used.
General
Power requirements
AC 100 V to 127 V, 200 V to 240 V,
50/60 Hz
Current consumption
100 V to 127 V: 4 A, 200 V to 240 V:
2 A
Peak inrush current
(1) Power ON, current probe method:
10 A (100 V), 28 A (240V)
(2) Hot switching inrush current,
measured in accordance with
European standard EN55103-1: 12 A
(230 V)
Operating temperature
5 °C to 40 °C (41 °F to 104 °F)
Performance guaranteed temperature
10 °C to 35 °C (50 °F to 95 °F)
Storage temperature
−20 °C to +60 °C (−4 °F to +140 °F)
Operating humidity
20% to 90% (no condensation)
Mass
Approx. 11.5 kg (25 lb. 5.6 oz.)
Dimensions
440.0 mm × 88 mm × 490 mm
3
(17
in. × 3
8
(w/h/d, excluding protrusions)
3
440 (17
/
)
8
482 (19)
7
452 (17
/
)
8
Supplied accessories
Operation Manual (1)
Installation Manual (1)
Notice Concerning Software (1)
1
3
in. × 19
in.)
2
8

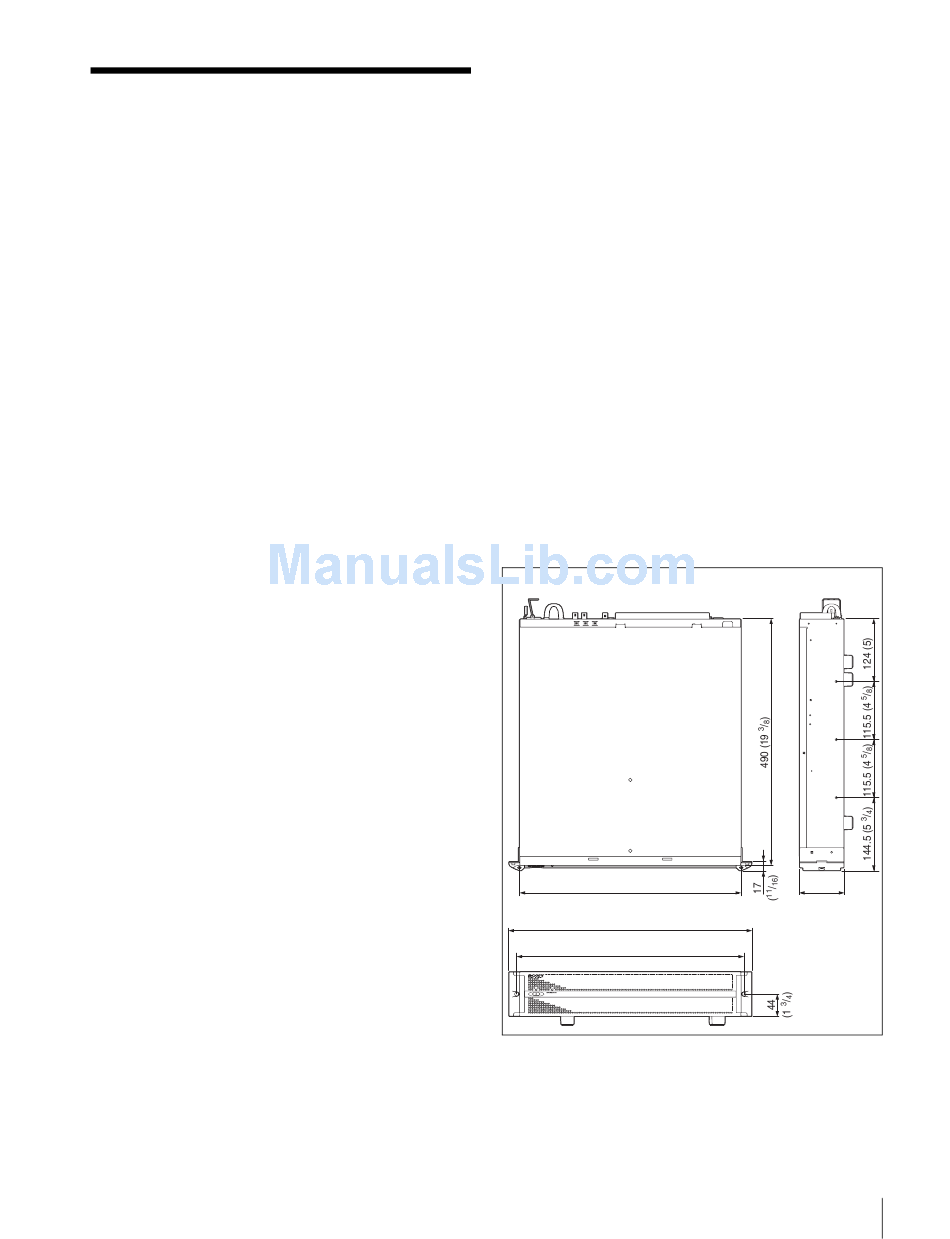

Unit: mm (inches)
88
1
(3
/
)
2
27
Specifications
