Rear

a NETWORK-2 connector/LED
Supports 10 Base-T, 100 Base-TX, and 1000 Base-T
Ethernet.
Right LED
Off
Lit (green)
Left LED
Off
Lit (orange)
Blinking (orange)
b RS-232C connector
Used for maintenance or system administration.
c NETWORK-1 connector/LED
Connects to networks for data transfer. Supports 10 Base-
T, 100 Base-TX, and 1000 Base-T Ethernet.
Right LED
Off
Lit (orange)
Left LED
Off
Lit (green)
Lit (red)
24

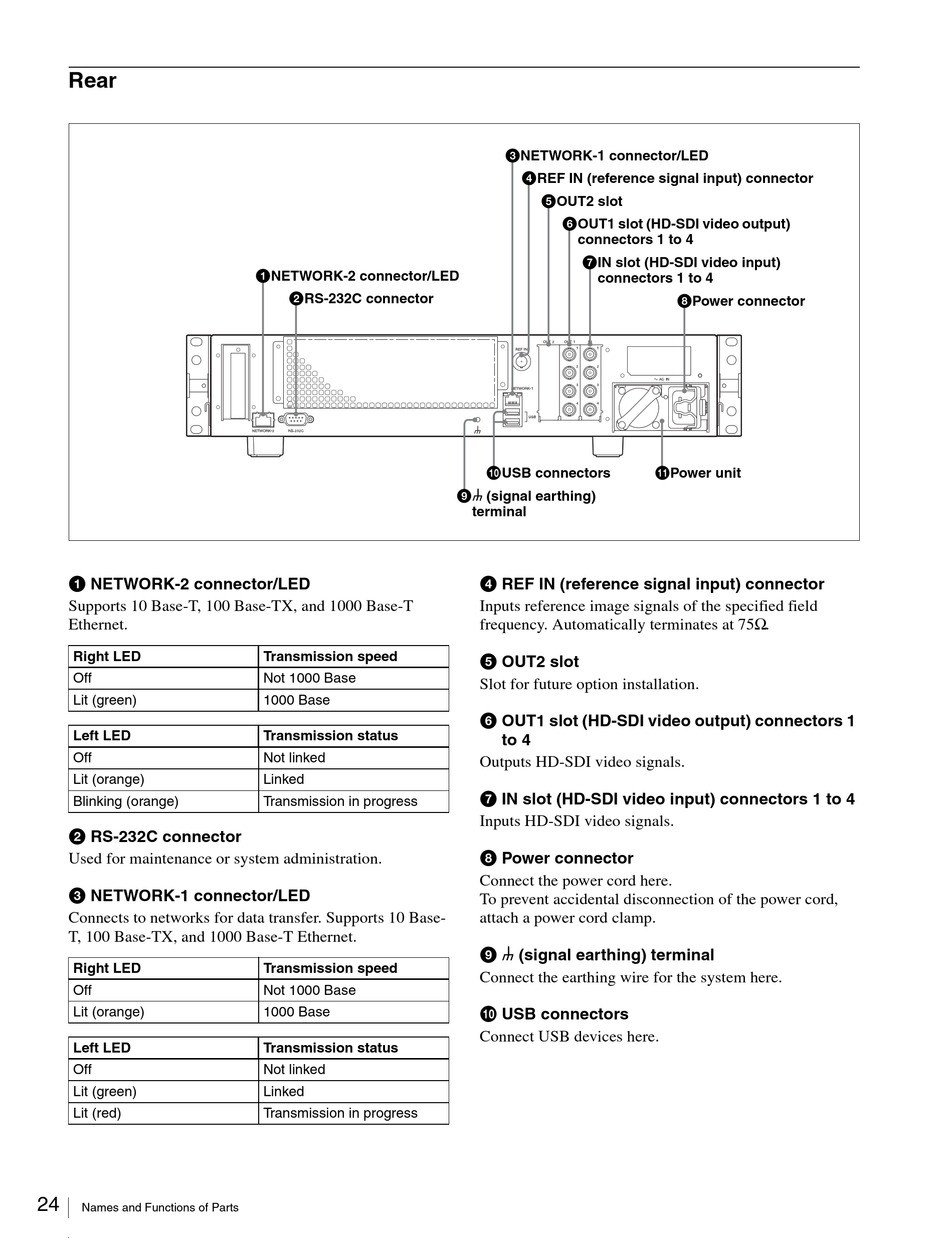

Names and Functions of Parts
aNETWORK-2 connector/LED
bRS-232C connector
Transmission speed
Not 1000 Base
1000 Base
Transmission status
Not linked
Linked
Transmission in progress
Transmission speed
Not 1000 Base
1000 Base
Transmission status
Not linked
Linked
Transmission in progress
cNETWORK-1 connector/LED
dREF IN (reference signal input) connector
eOUT2 slot
fOUT1 slot (HD-SDI video output)
connectors 1 to 4
gIN slot (HD-SDI video input)
connectors 1 to 4
jUSB connectors
iU (signal earthing)
terminal
d REF IN (reference signal input) connector
Inputs reference image signals of the specified field
frequency. Automatically terminates at 75Ω.
e OUT2 slot
Slot for future option installation.
f OUT1 slot (HD-SDI video output) connectors 1
to 4
Outputs HD-SDI video signals.
g IN slot (HD-SDI video input) connectors 1 to 4
Inputs HD-SDI video signals.
h Power connector
Connect the power cord here.
To prevent accidental disconnection of the power cord,
attach a power cord clamp.
i U (signal earthing) terminal
Connect the earthing wire for the system here.
j USB connectors
Connect USB devices here.
hPower connector
kPower unit
