INSTALLATION
1
3
\

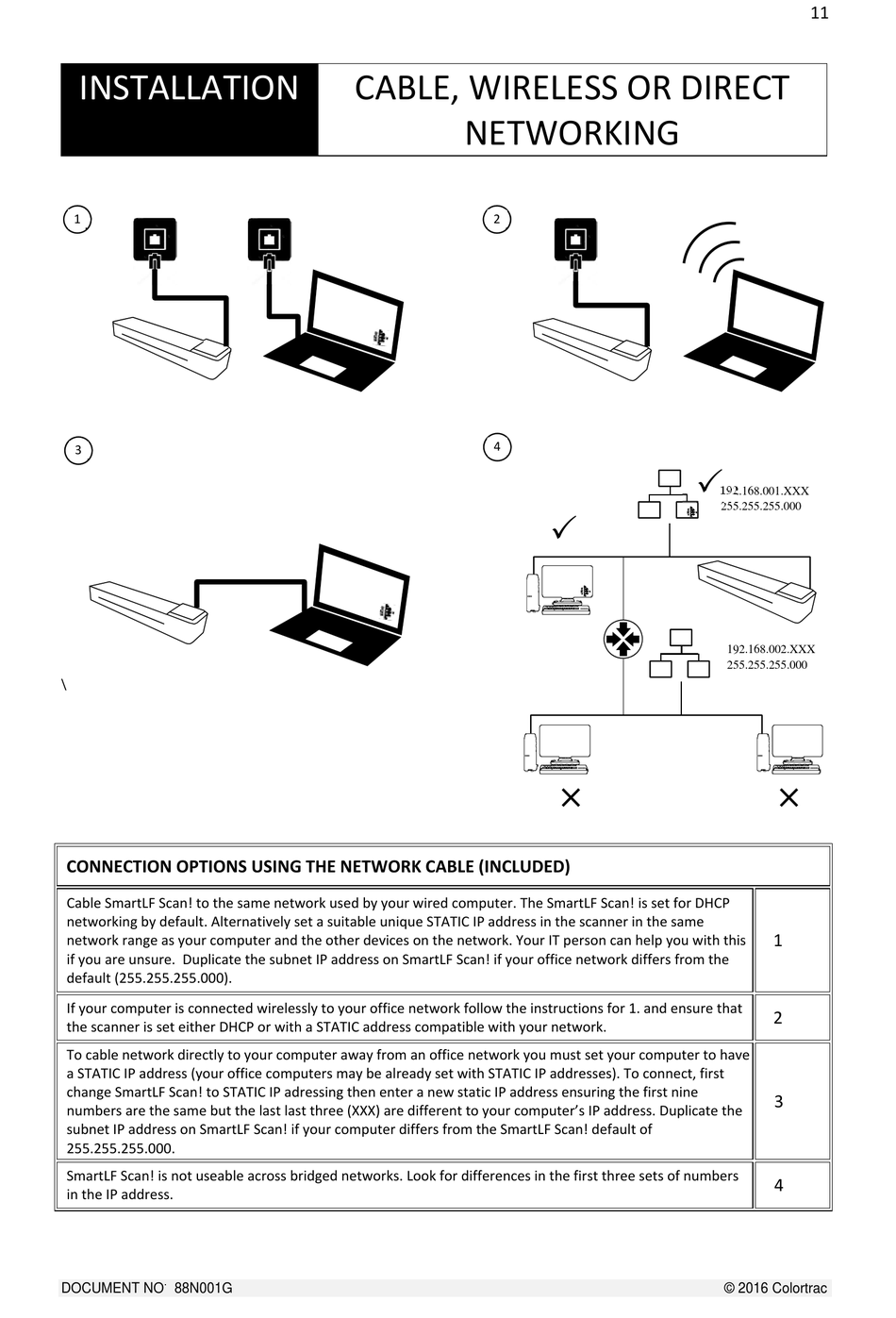

CONNECTION OPTIONS USING THE NETWORK CABLE (INCLUDED)
Cable SmartLF Scan! to the same network used by your wired computer. The SmartLF Scan! is set for DHCP
networking by default. Alternatively set a suitable unique STATIC IP address in the scanner in the same
network range as your computer and the other devices on the network. Your IT person can help you with this
if you are unsure. Duplicate the subnet IP address on SmartLF Scan! if your office network differs from the
default (255.255.255.000).
If your computer is connected wirelessly to your office network follow the instructions for 1. and ensure that
the scanner is set either DHCP or with a STATIC address compatible with your network.
To cable network directly to your computer away from an office network you must set your computer to have
a STATIC IP address (your office computers may be already set with STATIC IP addresses). To connect, first
change SmartLF Scan! to STATIC IP adressing then enter a new static IP address ensuring the first nine
numbers are the same but the last last three (XXX) are different to your computer's IP address. Duplicate the
subnet IP address on SmartLF Scan! if your computer differs from the SmartLF Scan! default of
255.255.255.000.
SmartLF Scan! is not useable across bridged networks. Look for differences in the first three sets of numbers
in the IP address.
.
DOCUMENT NO 88N001G
CABLE, WIRELESS OR DIRECT
NETWORKING
2
4

×
11

192.168.001.XXX
255.255.255.000
192.168.002.XXX
255.255.255.000
×
1
2
3
4
© 2016 Colortrac
