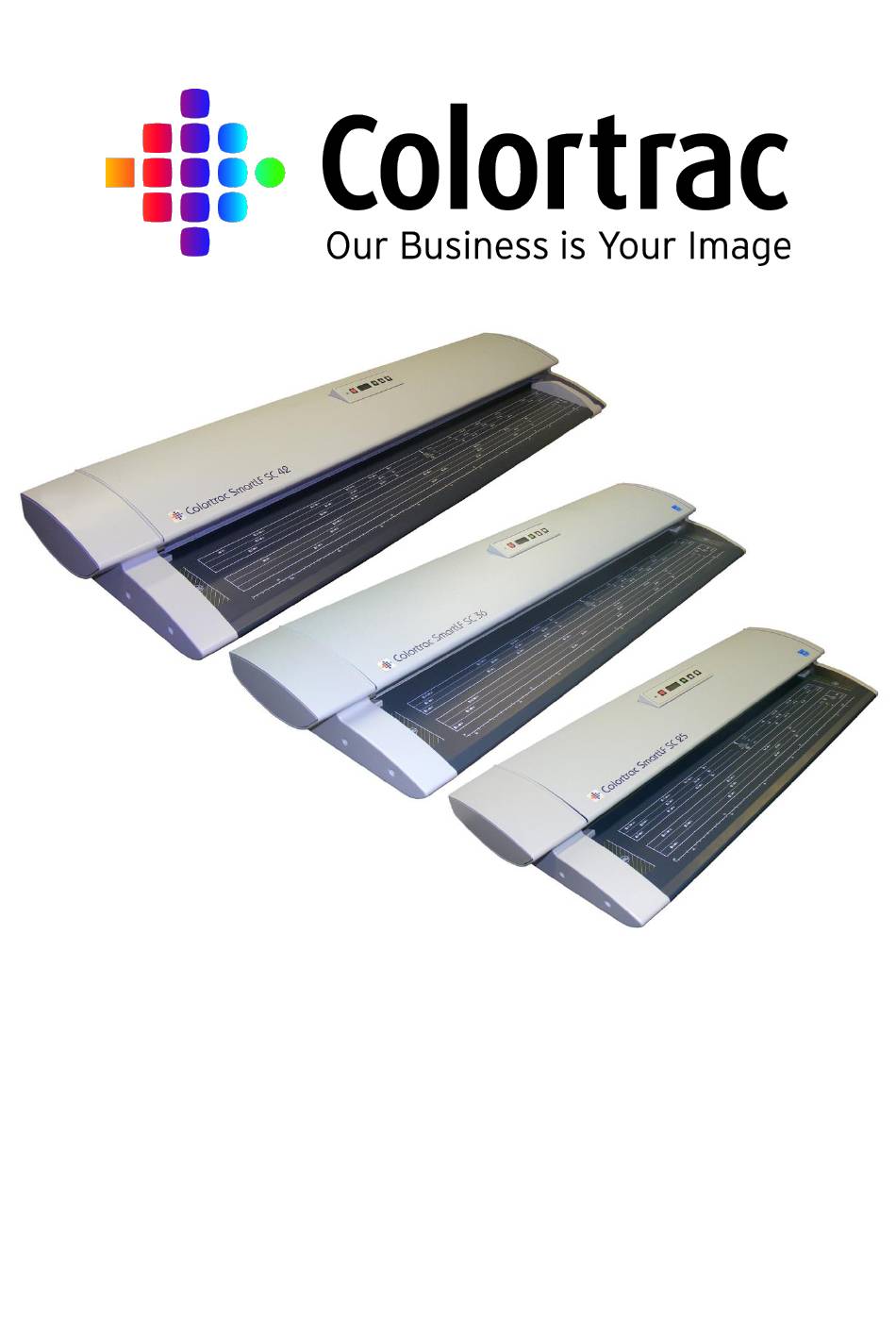

Colortrac SC25m Instruction Manual

Hold up roller
Hide thumbs Also See for SC25m:

Advertisement

Quick Links

Download this manual
C
o
l
o
r
C
o
l
o
r
I
n
s
I
n
t
r
a
c
t
r
a
c
H
o
l
d
U
H
o
l
d
U
t
r
u
c
t
i
o
s
t
r
u
c
t
i
S
C
S
c
S
C
S
p
R
o
l
l
p
R
o
l
n
M
a
o
n
M
a
a
n
n
c
a
n
n
e
r
l
e
r
n
u
a
l
n
u
a
l
e
r
e
r

Advertisement

loading
Need help?

Need help?

Do you have a question about the SC25m and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Colortrac SC25m

Summary of Contents for Colortrac SC25m

  • Page 2 Technical Support, Colortrac Ltd.  Colortrac Ltd shall not be liable for any damages, errors, issues or events that result from the use of the equipment or this manual. Page 2 of 28...
  • Page 3 SC Scanner Instruction Manual  CONTENTS Tools Required ......................... 4 Hold Up Roller Unit ........................5 Calibration ..........................25 Auto-stitch ..........................27 Page 3 of 28...

  • Page 4: Tools Required

    SC Scanner Instruction Manual Tools Required To maintain the SC Scanner the tools listed below are required. The tools are generally available; they are not the responsibility of Colortrac to supply. 1. Wristband 2. Pencil   Anti-static and cable.

  • Page 5: Hold Up Roller Unit

    SC Scanner Instruction Manual Hold Up Roller Unit Safety Precautions  Ensure that the power and USB cables are completely disconnected from the scanner unit.  Ensure the scanner is positioned on a stable maintenance platform. Associated Part Numbers  10H202 : SC42 Hold Up Roller Unit ...
  • Page 6 SC Scanner Instruction Manual 3. Use a Medium Pozi-drive screwdriver to remove the 5 x M5 screws from the Left End Cover. 4. Remove the Left End Cover and store in a safe place. 5. Open the Lid Assembly by releasing the Latches at either end of the scanner.
  • Page 7 SC Scanner Instruction Manual 7. Gently lever the screw driver by nudging it back at its top to release the latch. NOTE: When removing the cover be extremely careful not to apply to much force. 8. Gently pull the whole cover up, freeing it from the extrusion.
  • Page 8 SC Scanner Instruction Manual 11. Finally remove the opposite end Lower Cover. 12. Loosen the Main Timing Belt Tension Bar. Making sure not to release the nut fully from the bolt. Slide the Tension Bar up and re-tighten to hold the bar out of the way.
  • Page 9 SC Scanner Instruction Manual 15. Loosen the Drive Roller Timing Belt Tension Bar. Making sure not to release the nut fully from the bolt. Slide the Tension Bar down out of the way. 16. Remove the Drive Roller Timing Belt from around the 2 pulleys.
  • Page 10 SC Scanner Instruction Manual 18. Pull the Drive Pulley from the Hold Up Rollershaft. 19. Rotate the Drive Roller Unit until the screw nearest the Hold Up Roller Unit is accessible. 20. Remove the M3 CSK Screw from the Hold Up Roller Unit Collar Assembly.
  • Page 11 SC Scanner Instruction Manual 21. Rotate the Hold Up Roller Unit again until the other screw, nearest the End Plate, is accessible. 22. Remove the M3 CSK screw from the Hold Up Roller Unit Collar Assembly. 23. Use the small Flat Screwdriver to assist sliding the Hold Up Roller Unit Collar Assembly across towards the...
  • Page 12 SC Scanner Instruction Manual 24. Use the Small Flat Screwdriver to lift the Hold Up Roller Unit. 25. Gently lift the Hold Up Roller Unit out of the scanner. 26. (When replacing the older style Hold Up Roller, with the newer version) If the Holdup Roller Support Bar is fitted, remove and disguard.
  • Page 13 SC Scanner Instruction Manual 28. Remove the Hold Up Rollershaft. The bearing should come out with the Hold Up Rollershaft, if not remove the bearing from the end plate bracket before proceeding. 29. If fitting a newer Hold Up Roller that requires the springs to be replaced: Using pliers, lift the pressure spring out of it’s recess, and refit...
  • Page 14 SC Scanner Instruction Manual 31. Refit the bearing into the Hold Up Bracket in the Left Hand End Plate on top of the pressure spring cap. 32. Refit the Hold Up Rollershaft. 33. Refit the Hold Up Rollershaft Collar. Page 14 of 28...
  • Page 15 SC Scanner Instruction Manual 34. For the SC42, fit the newer style short Holdup Roller Support Bar (p/n: 10H154) (sold separately) 35. Remove the bearing from the Hold Up Roller Unit. 36. When replacing, make sure the curvature of the Spring Cap is aligned ready for the bearing.
  • Page 16 SC Scanner Instruction Manual 38. Fit the Hold Up Roller Unit Shaft into the bearing in the Right End Plate. 39. Gently lower the Hold Up Roller Unit into place, making sure not to damage its sleaving. 40. Rotate the Hold Up Roller Unit until the threaded hole is accessible.
  • Page 17 SC Scanner Instruction Manual 42. It may be necessary to use the Allen Key to help line up the holes to make it easier for refitting the screw 43. Refit the M3 CSK screw to hold the Hold Up Rollershaft to the Hold Up Roller Unit Collar.
  • Page 18 SC Scanner Instruction Manual 46. Refit the Lower Covers, starting at one end. 47. Ensure the earthing brush at the rear is not trapped under the cover. 48. Refit the remaining Lower Covers, remembering to position those with cut-outs for the paper sensors are in the correct position.
  • Page 19 SC Scanner Instruction Manual 50. Make sure the covers are fully press down so as not to catch media that passes through. 51. Close the Lid Assembly making sure both Lid Latches lock securely. 52. Refit the Drive Pulley onto the Hold Up Rollershaft, making sure it is pressed fully in place.
  • Page 20 SC Scanner Instruction Manual 53. Refit the Circlip to hold the Drive Pulley onto the Hold Up Rollershaft. 54. Using pliers, press the Circlip fully on to stop the Drive Pulley from coming off. 55. Replace the Drive Roller Timing Belt, position around the Rear Drive Roller Pulley and then the Hold Up Roller Unit Pulley.
  • Page 21 SC Scanner Instruction Manual 56. Make sure the Drive Roller Timing Belt goes around the part of the Rear Drive Roller Pulley nearest the End Plate. 57. Make sure the Drive Roller Timing Belt goes over the 2 larger pulleys, and over the top of the Drive Roller Timing Belt Tension Bar.
  • Page 22 SC Scanner Instruction Manual 60. Fit the Main Timing Belt over the Motor Pulley. 61. Make sure the Main Timing Belt goes around the secondary Tension Bar. 62. Position the Main Timing Belt over the Rear Drive Roller Pulley. Page 22 of 28...
  • Page 23 SC Scanner Instruction Manual 63. Position the Main Timing Belt over the Front Driver Roller Pulley and rotate the pulley if necessary to get the Main Timing Belt completely on. 64. Make sure the Main Timing Belt follows the correct path as shown.
  • Page 24 SC Scanner Instruction Manual 66. Refit the Left End Cover. 67. Run the Calibration as described in Chapter 3 “Calibration” page 25. 68. Run the Auto-stitch as described in Chapter 4 “Auto-stitch” page 27. 69. Restart the PC and scanner. Page 24 of 28...
  • Page 25 SC Scanner Instruction Manual Calibration Associated Part Numbers  10H028 : Calibration and Auto-stitch Target 1. Open the Lid Assembly and clean the SingleSensor Glass Sub-Assy. Close the Lid Assembley. 2. Insert the Calibration Target so that the black part section is inserted first, face NOTE: It is necessary to remove the Magnetic Paper Guide AND the Document...

  • Page 26: Calibration

    SC Scanner Instruction Manual 5. Click ‘OK’ to except the message. 6. After approx. 4 minutes, the ‘Calibration’ (or Normalisation) is complete. During calibration , the target will move through the scanner in stages several times. Page 26 of 28...

  • Page 27: Auto-Stitch

    SC Scanner Instruction Manual Auto-stitch Associated Part Numbers  10H028A : Calibration and Auto-stitch Target 1. Double click the SmartLF SC Utilities icon. 2. To enter the second level utilities Click ‘Utilities’ at the bottom of the front page. 3. Insert the Calibration Target so that the black section is in first, and face up.
  • Page 28 SC Scanner Instruction Manual 5. Click ‘OK’ to except the message. 6. On completion, click the ‘OK button. Page 28 of 28...
