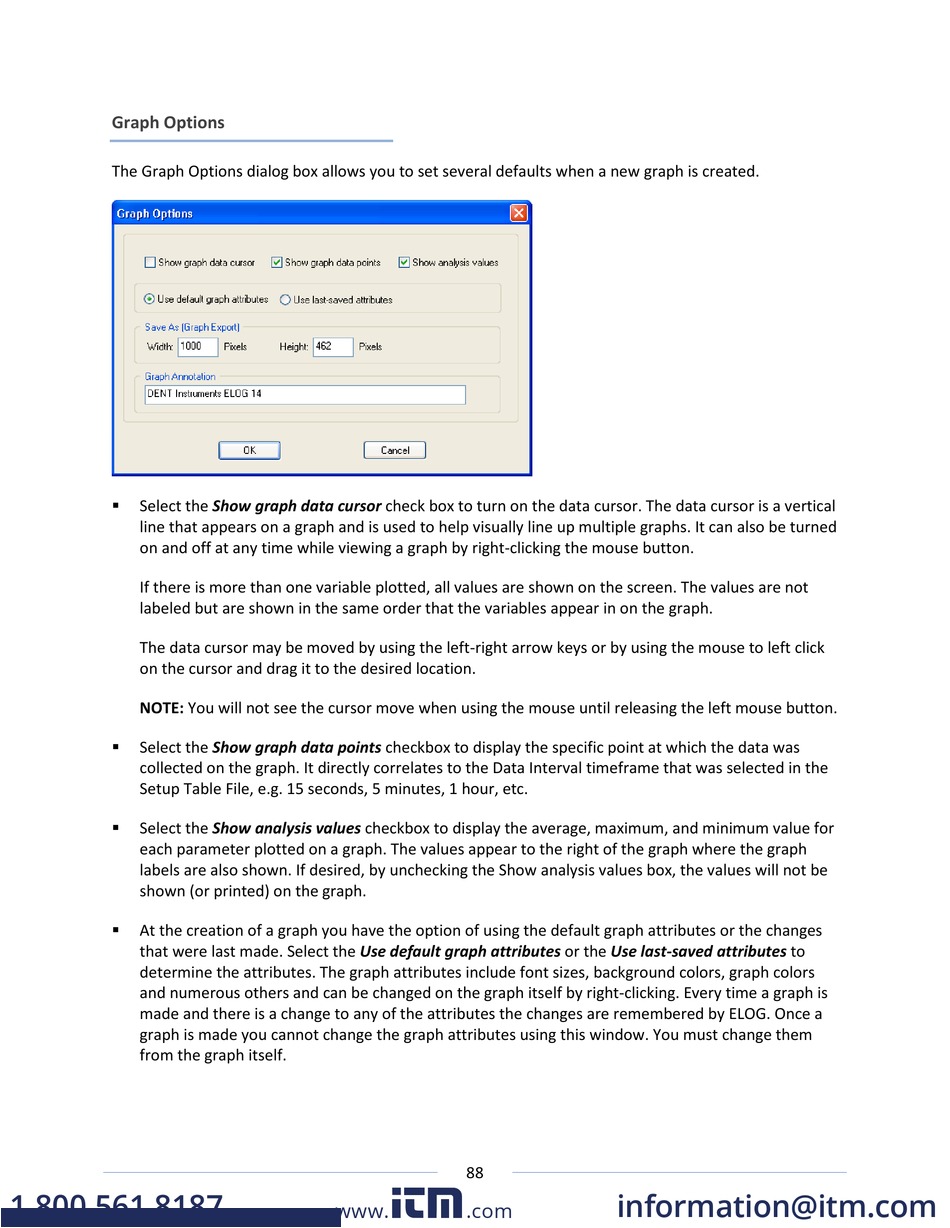

Graph Options

The Graph Options dialog box allows you to set several defaults when a new graph is created.
Select the Show graph data cursor check box to turn on the data cursor. The data cursor is a vertical

line that appears on a graph and is used to help visually line up multiple graphs. It can also be turned
on and off at any time while viewing a graph by right-clicking the mouse button.
If there is more than one variable plotted, all values are shown on the screen. The values are not
labeled but are shown in the same order that the variables appear in on the graph.
The data cursor may be moved by using the left-right arrow keys or by using the mouse to left click
on the cursor and drag it to the desired location.
NOTE: You will not see the cursor move when using the mouse until releasing the left mouse button.
Select the Show graph data points checkbox to display the specific point at which the data was

collected on the graph. It directly correlates to the Data Interval timeframe that was selected in the
Setup Table File, e.g. 15 seconds, 5 minutes, 1 hour, etc.
Select the Show analysis values checkbox to display the average, maximum, and minimum value for

each parameter plotted on a graph. The values appear to the right of the graph where the graph
labels are also shown. If desired, by unchecking the Show analysis values box, the values will not be
shown (or printed) on the graph.
At the creation of a graph you have the option of using the default graph attributes or the changes

that were last made. Select the Use default graph attributes or the Use last-saved attributes to
determine the attributes. The graph attributes include font sizes, background colors, graph colors
and numerous others and can be changed on the graph itself by right-clicking. Every time a graph is
made and there is a change to any of the attributes the changes are remembered by ELOG. Once a
graph is made you cannot change the graph attributes using this window. You must change them
from the graph itself.
