DENT Instruments ELITEpro XC Operator's Manual page 124

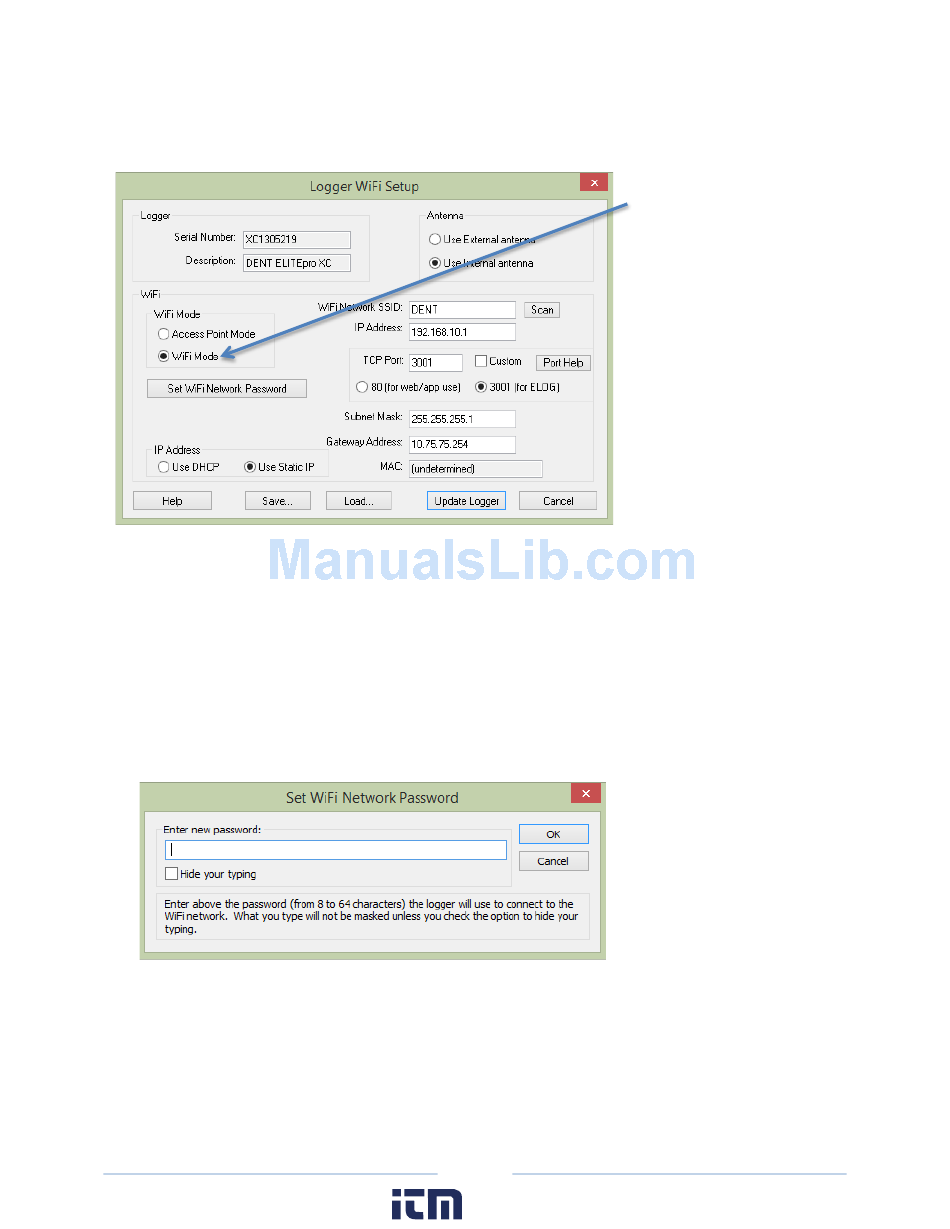

3) From the ELOG menu, select Logger > Communication > Logger Wi-Fi Setup.... The Logger Wi-Fi
Setup dialog box appears.
Note: All ELITEpro XC loggers that are equipped with a Wi-Fi package contain an internal antenna. An
external antenna is optional. You may toggle between using the internal and external antenna (if it is
available on your logger) by selecting the appropriate radio button.
4) Select the Wi-Fi Mode radio button in the Wi-Fi Mode section of the dialog box.
A network administrator may be needed for the next three steps.
5) Enter the name of the wireless network in the Wi-Fi Network SSID field.
6) Click Set Wi-Fi Network Password and enter the network's password in the dialog box.
7) Click the Use DHCP radio button if your network uses DHCP to assign IP address information.
-or-
Click the Use Static IP radio button and enter the IP Address, Subnet Mask, and Gateway Address
provided by the network administrator when your network uses static IP address assignments.
1.800.561.8187
124
www. .com
WiFi Mode Radio
Button
