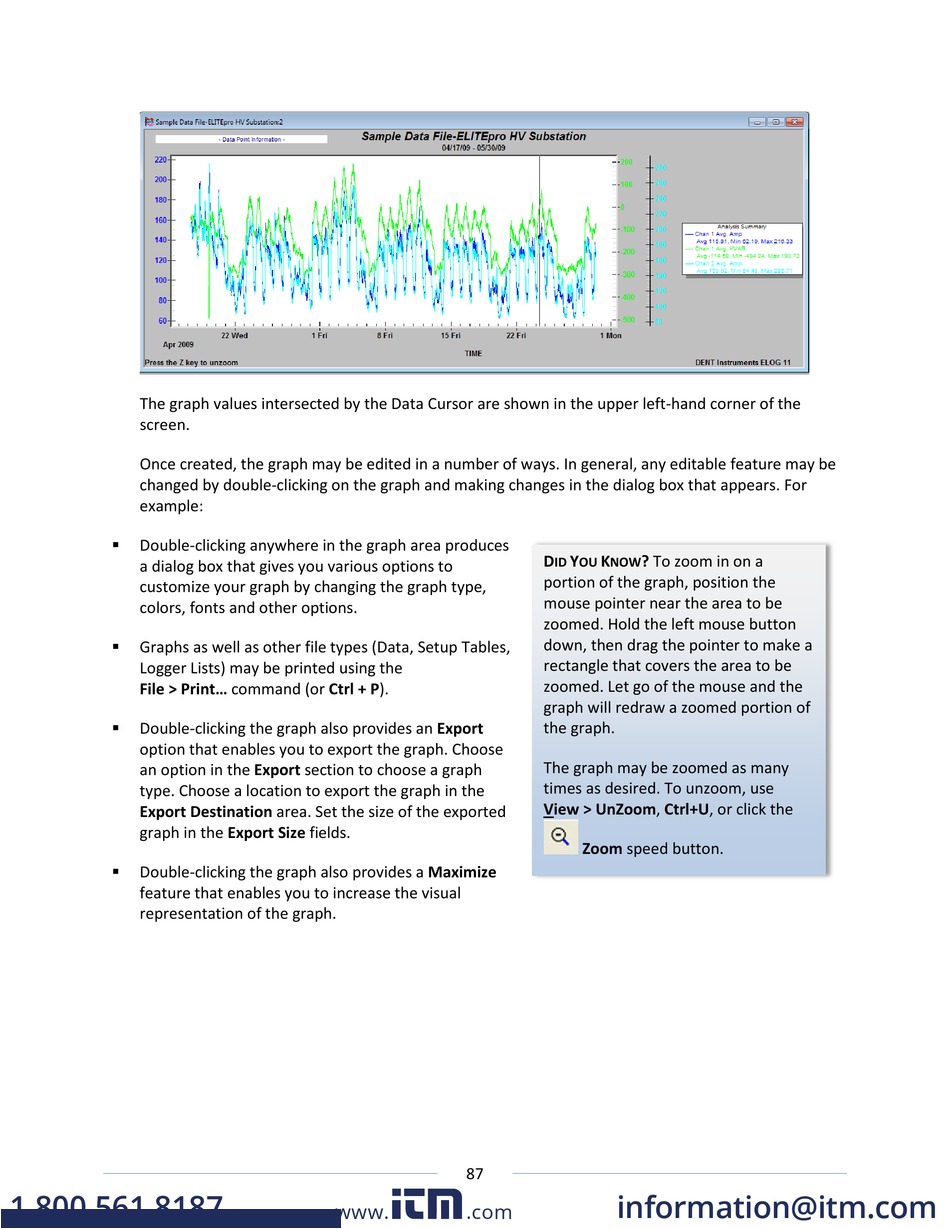

DENT Instruments ELITEpro XC Operator's Manual page 87

The graph values intersected by the Data Cursor are shown in the upper left-hand corner of the
screen.
Once created, the graph may be edited in a number of ways. In general, any editable feature may be
changed by double-clicking on the graph and making changes in the dialog box that appears. For
example:
Double-clicking anywhere in the graph area produces

a dialog box that gives you various options to
customize your graph by changing the graph type,
colors, fonts and other options.
Graphs as well as other file types (Data, Setup Tables,

Logger Lists) may be printed using the
File > Print... command (or Ctrl + P).
Double-clicking the graph also provides an Export

option that enables you to export the graph. Choose
an option in the Export section to choose a graph
type. Choose a location to export the graph in the
Export Destination area. Set the size of the exported
graph in the Export Size fields.
Double-clicking the graph also provides a Maximize

feature that enables you to increase the visual
representation of the graph.
1.800.561.8187
87
www. .com
D Y K ? To zoom in on a
ID OU NOW
portion of the graph, position the
mouse pointer near the area to be
zoomed. Hold the left mouse button
down, then drag the pointer to make a
rectangle that covers the area to be
zoomed. Let go of the mouse and the
graph will redraw a zoomed portion of
the graph.
The graph may be zoomed as many
times as desired. To unzoom, use
View > UnZoom, Ctrl+U, or click the
Zoom speed button.
