MPLAB ICD 3 In-Circuit Debugger User's Guide
10.6.2
For standard communications, a modular cable connects the debugger and the target
application. The specifications for this cable and its connectors are listed below.
10.6.2.1
• Manufacturer, Part Number – AMP Incorporated, 555165-1
• Distributor, Part Number – Digi-Key, A9031ND
The following table shows how the modular connector pins on an application corre-
spond to the microcontroller pins. This configuration provides full ICD functionality.

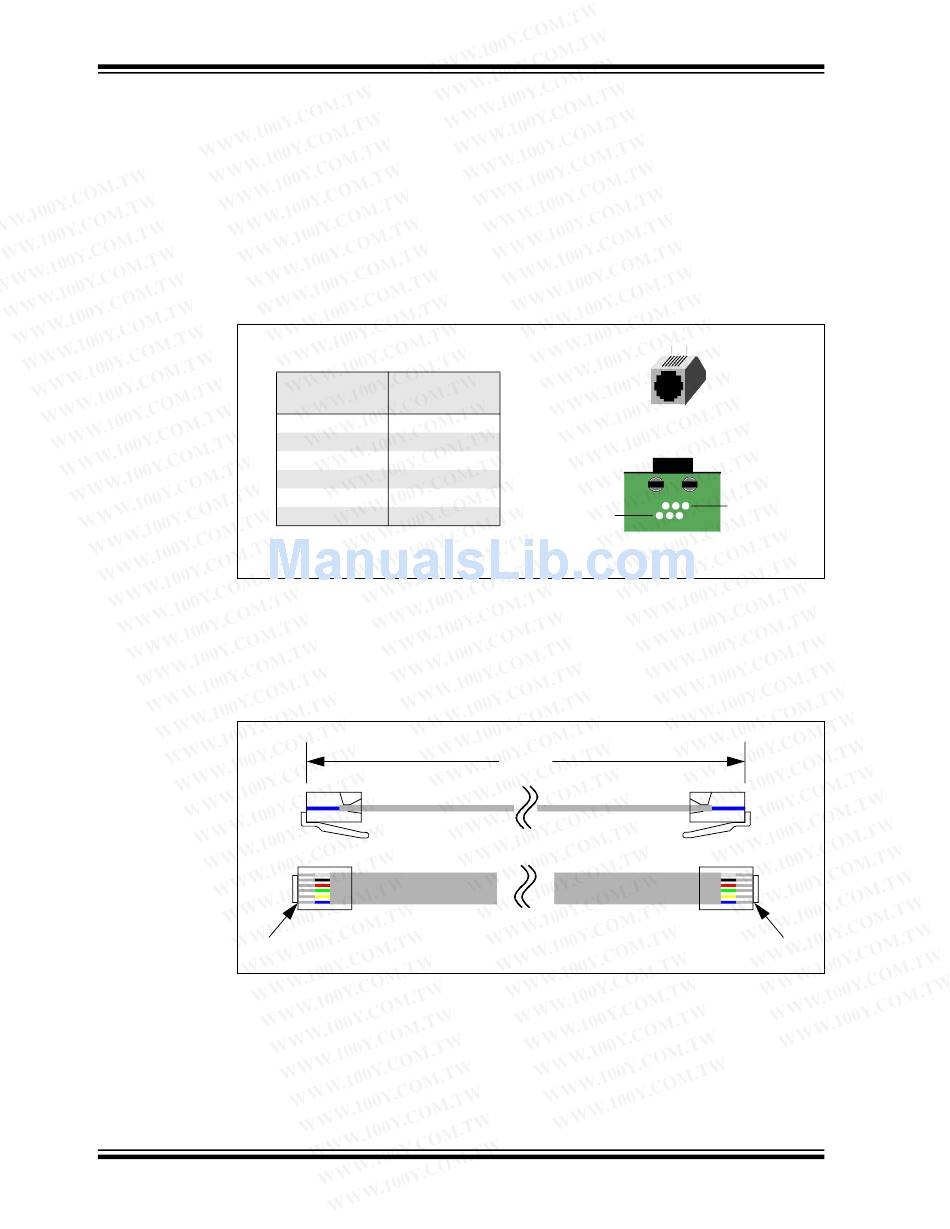

FIGURE 10-2:
10.6.2.2
• Manufacturer, Part Number – AMP Incorporated, 5-554710-3
• Distributor, Part Number – Digi-Key, A9117ND
10.6.2.3
• Manufacturer, Part Number – Microchip Technology, 07-00024
Pin 1
10.7

ICD 3 TEST INTERFACE BOARD

This board can be used to verify that the debugger is functioning properly. To use this
board:
DS51766A-page 82
Modular Cable and Connector
MODULAR CONNECTOR SPECIFICATION
MODULAR CONNECTOR PINOUT OF TARGET BOARD
Modular Microcontroller
Connector Pin Pin
6 LVP
5 RB6
4 RB7
3 Ground
2 V Target
DD
1 V
PP
MODULAR PLUG SPECIFICATION
MODULAR CABLE SPECIFICATION
1 6
Front view of Modular Connector
on Target Board
1
Bottom view of Modular Connector
Pinout on Target Board
8.00"
© 2008 Microchip Technology Inc.
6
Pin 6
