Silicon Laboratories AN515 Si4010 Quick Start Manual

Si4010 K
EY

1. Purpose

Thank you for your interest in Silicon Laboratories Si4010 RF SoC transmitter Key fob development kit. This
development kit (4010-DK KF 434) contains everything you need to develop your software with the Si4010
embedded Si8051 MCU. The key features of the development platform are as follows:

The 434 MHz key fob development board has five push buttons and one LED output.
 The key fob development board has a battery to enable disconnect from the programming interface board.
 Uses Silicon Laboratories Integrated Development Environment (IDE) for software debugging and can also use
any Keil C compiler, assembler, and linker.
 Interfaces with Silicon Laboratories USB Debug Adapter or Toolstick.
 Contains a socketed key fob development board for burning the OTP NVM memory.
 Contains five blank NVM Si4010 chips and key fob demo boards without IC for burning and testing user code on
an actual key fob PCB.

2. Kit Contents

The kit contains the following items:
 Burning Adapter (P/N MSC-BA 4, shown in Figure 1)

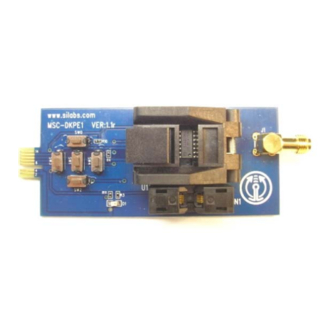

 Si4010 Socketed Key fob development board (P/N MSC-DK PE 1, shown in Figure 2)
 Si4010 SOIC Key Fob development board 434 MHz, PCB ant. (P/N 4010-DK PB 434, shown in Figure 3)
 Programming adapter board (P/N MSC-BA 5, shown in Figure 4)
 4010 Key fob demo board without IC (quantity = 2) (P/N 4010-UB PB 434, shown in Figure 5)
 Key fob Plastic Case (translucent grey, P/N MSC-PL PB 1, shown in Figure 6)
 WDS CDROM Set (P/N MSC-DKSW1)
 Si4010 sample, SOIC Package (rev B1, quantity = 5, P/N Si4010-B1 GS, shown in Figure 7)
 USB Cable (P/N MSC-DK CS 5)
 EC3 Debug adapter (P/N EC3, shown in Figure 8)
Rev 1.0 7/10
F D
OB EVELOPMENT

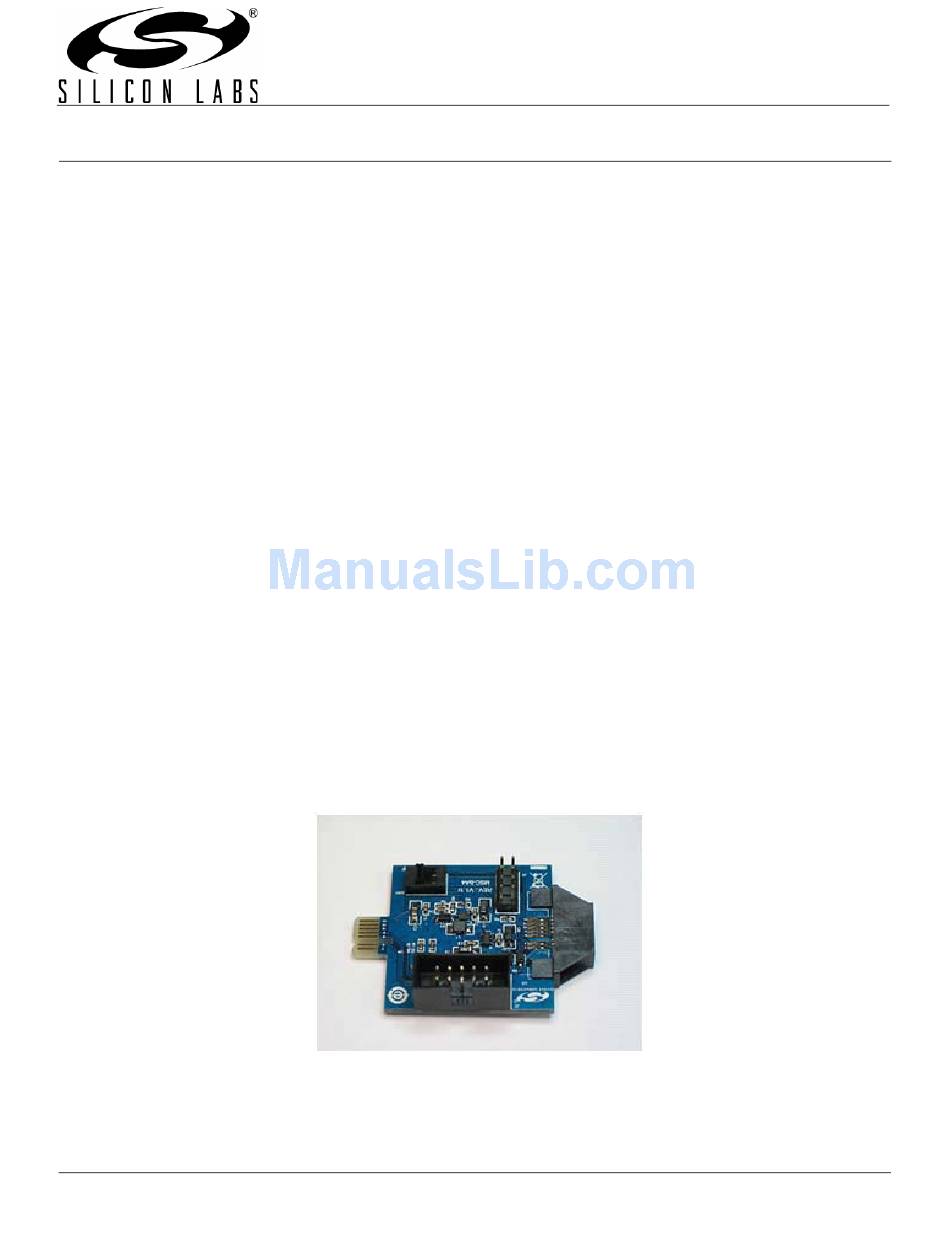

Figure 1. Burning Adapter (P/N MSC-BA 4)
Copyright © 2010 by Silicon Laboratories
K Q S
I T U IC K
AN515
G
TA RT UIDE
AN515
