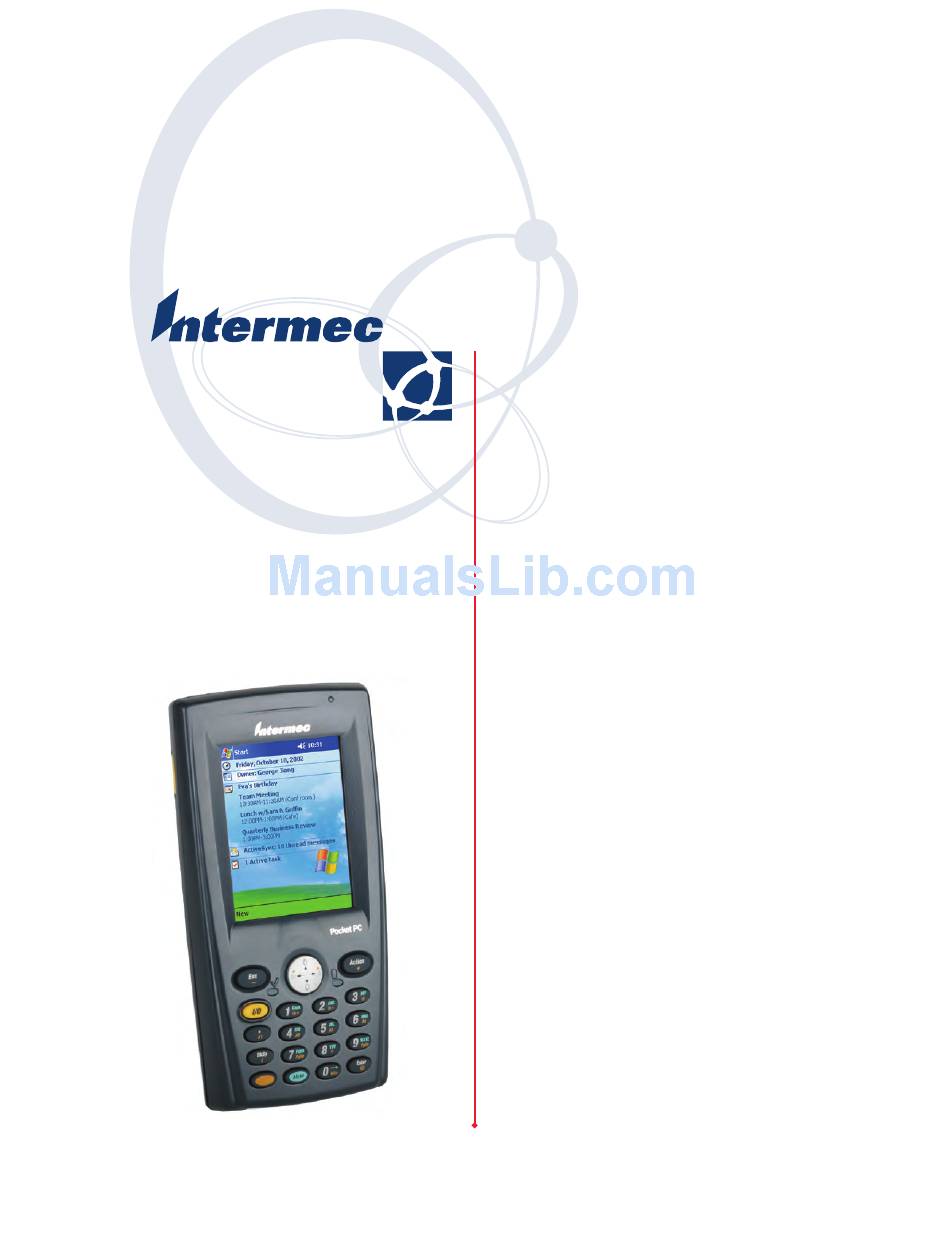

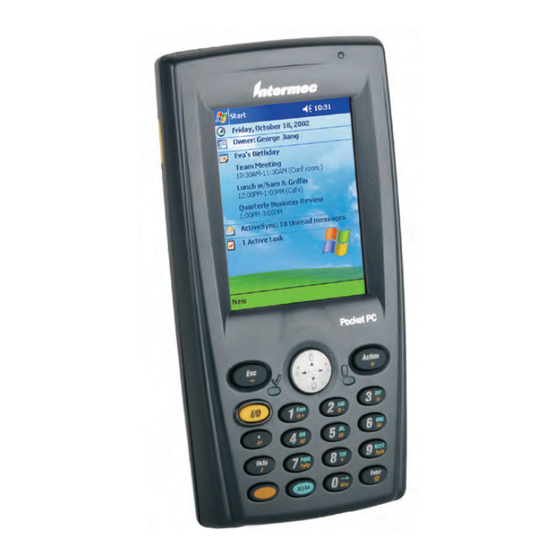

Page 1 User's Manual 700 Series Color Mobile Computer...
Page 2 The information contained herein is proprietary and is provided solely for the purpose of allowing customers to operate and service Intermec-manufactured equipment and is not to be released, reproduced, or used for any other purpose without written permission of Intermec.
Page 3 04/2004 Updated 802.11 security supplicant information. Added new network selection APIs. Incorporated information about the Intermec Settings control panel applet for PSM Builds 3.00 or newer. Added information about the PhoneUtility application. Revised Chapter 4, “Network Support.” Added tethered scanner and internal scanner configura- tion and troubleshooting information to Chapter 6, “Scanner Support.”...
Page 4 700 Series Color Mobile Computer User’s Manual...
Page 5: Table Of Contents
............700 Series Color Mobile Computer User’s Manual...
Page 6 ............700 Series Color Mobile Computer User’s Manual...
Page 7 ........700 Series Color Mobile Computer User’s Manual...
Page 8 ..........viii 700 Series Color Mobile Computer User’s Manual...
Page 9 ............. . SNMP Configuration on the 700 Series Computer .
Page 10 ........700 Series Color Mobile Computer User’s Manual...
Page 11 ..........700 Series Color Mobile Computer User’s Manual...
Page 12 ............700 Series Color Mobile Computer User’s Manual...
Page 13 ............700 Series Color Mobile Computer User’s Manual...
Page 14 ............700 Series Color Mobile Computer User’s Manual...
Page 15 ..........700 Series Color Mobile Computer User’s Manual...
Page 16 ..............700 Series Color Mobile Computer User’s Manual...
Page 17: Before You Begin
Safety Summary Your safety is extremely important. Read and follow all warnings and cautions in this document before handling and operating Intermec equipment. You can be seriously injured, and equipment and data can be damaged if you do not follow the safety warnings and cautions.
Page 18: Safety Icons
Note: Notes either provide extra information about a topic or contain special instructions for handling a particular condition or set of circumstances. xviii 700 Series Color Mobile Computer User’s Manual...
Page 19: Global Services And Support
Web Support Visit the Intermec web site at http://www.intermec.com to download our current manuals in PDF format. To order printed versions of the Intermec manuals, contact your local Intermec representative or distributor. Visit the Intermec technical knowledge base (Knowledge Central) at http://intermec.custhelp.com to review technical information or to request...
Page 20: Who Should Read This Manual
Series Color Mobile Computer and how to configure, troubleshoot, and support it. You must be familiar with your host PC, your network, and your other Intermec equipment. Related Documents This table contains a list of related Intermec documents and their part numbers. Document Title Part Number...
Page 21: Introduction
Introduction This chapter introduces the 700 Series Color Mobile Computer, devel- oped by Intermec Technologies Corporation to enhance wireless connec- tivity needs. This chapter contains hardware and software configuration information to assist you in making the most out of your 700 Color Computer. The com-...
Page 22: Ambient Light Sensor
To adjust the ambient light sensor, tap Start > Settings > the System tab > the Backlight icon > the Both Power tab. Make your selections, then tap ok to exit this applet. 700 Series Color Mobile Computer User’s Manual...
Page 23: Audio System
1–8 KHz. Speaker Speaker 700 Color Computer 730 Computer This illustration shows the back of the 700 Color Computer on the left and of the 730 Computer on the right. 700 Series Color Mobile Computer User’s Manual...
Page 24: Microphone
Hirose docking connector. Charging/Docking Headset jack connector This is the bottom of the 700 Color Computer. Note that the keypad is to the bottom in this illustration. 700 Series Color Mobile Computer User’s Manual...
Page 25: Battery
The 730 Computer comes with a 8.8 Watt-hour, 3.7V, replaceable LiIon battery. To view the status of this battery from the 700 Series Computer, tap Start > Settings > the System tab > the Power icon > the Power tab to view the current status of both the main battery and the backup battery.
Page 26 Be sure to put the computer in a suspend mode before doing so. If you have at least one device in your 700 Series Computer (radio, scan- ner, imager, or Ethernet), the battery power fail level is set so that after the...
Page 27: Beeper
1 Tap Start > Settings > the Personal tab > Sounds & Notifications > the Volume tab. 2 Drag the System volume slider bar to the right off the “Silent” position. 3 Tap ok to exit this applet. 700 Series Color Mobile Computer User’s Manual...
Page 28: Disable The Scanner Mute
3 Drag its slider bar (note the greyed slider bar) to the appropriate level of loudest, with the left side being the most quiet and the right side being the most loud. Tap ok to exit this applet. 700 Series Color Mobile Computer User’s Manual...
Page 29: Select A Beeper Volume
Vibrate option is not supported. 4 Tap ok to confirm this change, then tap ok to exit the Data Collection control panel applet. 700 Color with Laser Scanner 700 Color with Imager Screen 730 Screen Screen 700 Series Color Mobile Computer User’s Manual...
Page 30: Disable The Beeper
Do the following to select a beeper volume for the 700 Color Computer. Tap Start > Settings > the System tab > the Intermec Settings icon. Tap the 700 Settings folder twice, tap (+) to expand the Beeper folder, then tap (+) to expand the Volume option.
Page 31: Keypad
Start > Settings > the System tab > Backlight. Use the left/right scroll arrows to move to and tap the Keyboard tab. Make your selection, then tap ok to exit this applet. 700 Series Color Mobile Computer User’s Manual...
Page 32: Key Sequences
Tab to the left. [Gold] Note: Pocket PC applications are accessible only if configured to do so in the App Launch portion of the Utilities control panel applet. See page 379 for more information. 700 Series Color Mobile Computer User’s Manual...
Page 33 Tab to the left. [Gold/White] Note: Pocket PC applications are accessible only if configured to do so in the App Launch portion of the Utilities control panel applet. See page 379 for more information. 700 Series Color Mobile Computer User’s Manual...
Page 34: Alpha (Blue) Plane Keys
F 1 8 8 8 F 1 9 F 9 9 F 1 9 9 F 9 9 9 F 1 9 9 9 F 9 9 9 9 F 1 9 9 9 9 700 Series Color Mobile Computer User’s Manual...
Page 35 F g P F g Q F g R F g S F g T F g U F g V F g W F g X F g Y F g Z 700 Series Color Mobile Computer User’s Manual...
Page 36: Modem Support
In addition to storing applications and data files, you do have the option to store a persistent registry to the PSM region. To determine what PSM Build is on your 700 Series Computer, tap Start > Programs > File Explorer > the PSMinfo text file. Take note of your information, then tap ok to exit.
Page 37: Software Build Version
— Introduction Software Build Version To check to see if your 700 Series Computer has the latest software build, select Start > Internet Explorer > the Intermec logo. The latest software build version is displayed beneath the Version Information title. This information would be useful should you need assistance.
Page 38: Storage Media
The 700 Color Computer supports both CompactFlash and Secure Digital storage cards. To access either card slot, locate the access door at the top of the 700 Series Computer, remove its two screws, then remove the door. See the 700 Series Color Mobile Computer Quick Start Guide (P/N: 962-054-053) for more information.
Page 39: Vibrator
2 Use the right and left arrows to scroll to the Beeper/LED tab, then tap this tab. 3 Tap Beeper, select the “Vibrate” option, then tap Apply. 4 Tap ok to confirm this change, then tap ok to exit the Data Collection control panel applet. 700 Series Color Mobile Computer User’s Manual...
Page 40: Wireless Network Support
Do the following to enable the vibrator for the 700 Color Computer. Tap Start > Settings > the System tab > the Intermec Settings icon. Tap the 700 Settings folder twice, tap (+) to expand the Beeper folder, then tap (+) to expand the Vibrate option.
Page 41: Accessories
Introduction Accessories The following accessories are available for the 700 Series Computer. Note that this is not a complete list. Contact your Intermec representative for in- formation about these and other accessories that are not in this list. Intermec Accessory Descriptions...
Page 42: What's New
Support,” Chapter 7, “Programming,” and Appendix A, “Configur- able Settings.” S Incorporated information about the Intermec Settings control panel ap- plet throughout the manual for PSM Builds 3.00 or newer. S Added information about the PhoneUtility application to and revised information about Bluetooth in Chapter 4, “Network Support.”...
Page 43: Windows Mobile 2003
Microsoft Pocket Outlook (page 46) Pocket Word (page 78) Pocket Excel (page 82) MSN Messenger (page 84) Windows Media Player for Pocket PC (page 89) Microsoft Reader (page 90) Pocket Internet Explorer (page 94) 700 Series Color Mobile Computer User’s Manual...
Page 44: Software Builds
— Windows Mobile 2003 Software Builds Do the following to determine which Intermec build of Windows Mobile 2003 is on your unit. 1 Select Start > Internet Explorer > the Intermec logo. 2 Note the “Software Build” information displayed beneath the Version Information title.
Page 45: Where To Find Information
Windows Mobile and many of the technologies supported by the 700 Col- or Computer are not from Intermec Technologies. Many of the utilities and features on a Windows Mobile device come directly from Microsoft without any modification from Intermec Technologies. There may be cer-...
Page 46: Basic Skills
Status icons display information such as low batteries or when the 700 Color Computer is connected to a desktop or to the Internet. You can tap an icon to open the associated setting or program. 700 Series Color Mobile Computer User’s Manual...
Page 47: Programs
Internet. Create handwritten or typed notes, drawings, and recordings. Keep track of your tasks. Play digital audio and video files that are stored on your 700 Series Com- puter or on a network. 700 Series Color Mobile Computer User’s Manual...
Page 48: Navigation Bar And Command Bar
Drag the stylus off the button so that the command is not carried out. Tap to display the input panel. Tap to select button commands. Tap to select menu commands. 700 Series Color Mobile Computer User’s Manual...
Page 49: Pop-Up Menus
S A message box appears on the screen. S A sound, which you can specify, is played. S A light flashes on your 700 Color Computer. S The 700 Color Computer vibrates. You can choose notification types. 700 Series Color Mobile Computer User’s Manual...
Page 50: Entering Information
To show or hide the input panel, tap the Input Panel button. Tap the ar- row next to the Input Panel button to see your choices. Select an input method. Tap to see your choices. Input Panel button. 700 Series Color Mobile Computer User’s Manual...
Page 51: Typing With The Onscreen Keyboard
S To backspace one character, drag the stylus to the left across at least two keys. S To insert a carriage return, tap and hold the stylus anywhere on the keyboard and drag down. 700 Series Color Mobile Computer User’s Manual...
Page 52: Using Block Recognizer
When you write a letter, it is converted to typed text that appears on the screen. For specific instructions on using Block Recognizer, with Block Recogniz- er open, tap the question mark next to the writing area. Tap for assistance. 700 Series Color Mobile Computer User’s Manual...
Page 53: Using Letter Recognizer
You can cut, copy, and paste text by tapping and holding the selected words and then tapping an editing command on the pop-up menu, or by tapping the command on the Edit menu. 700 Series Color Mobile Computer User’s Manual...
Page 54: Writing On The Screen
You can cut, copy, and paste written text in the same way you work with typed text: tap and hold the selected words and then tap an editing com- mand on the pop-up menu, or tap the command on the Edit menu. 700 Series Color Mobile Computer User’s Manual...
Page 55: Converting Writing To Text
Tap to return to your original writing. Or, tap the word you want to use. 700 Series Color Mobile Computer User’s Manual...
Page 56 S If you add writing to a word to change it (such as changing a “3” to an “8”) after you attempt to recognize the word, the writing you add is not included if you attempt to recognize the writing again. 700 Series Color Mobile Computer User’s Manual...
Page 57: Drawing On The Screen
Edit menu. To resize a drawing, make sure the Pen button is not selected, and drag a selection handle. 700 Series Color Mobile Computer User’s Manual...
Page 58: Recording A Message
To play a recording, tap it in the list or tap its icon in the note. Indicates an em- bedded recording. Tap to show or hide the Recording toolbar. Tap to begin recording. 700 Series Color Mobile Computer User’s Manual...
Page 59: Using My Text
S To edit a My Text message, tap Tools > Edit My Text Messages. Tap the message you want to edit and enter new text at the bottom of the screen. Tap to select a prewritten message. 700 Series Color Mobile Computer User’s Manual...
Page 60: Finding And Organizing Information
Note: You can move files in File Explorer by tapping and holding the item you want to move, and then tapping Cut or Copy and Paste on the pop- up menu. 700 Series Color Mobile Computer User’s Manual...
Page 61: Customizing Your 700 Color Computer
You can install any program created for your 700 Color Computer, as long as your 700 Color Computer has enough memory. The most popular place to find software for your 700 Color Computer is on the Windows Mobile Web site (http://www.microsoft.com/windowsmobile/resources/ communities/default.mspx). 700 Series Color Mobile Computer User’s Manual...
Page 62 3 Read program installation instructions, Read Me files, or other docu- mentation. Many programs provide installation instructions. 4 Tap the file, such as a *.XIP or *.EXE file to start the installation wi- zard. Follow the directions on the screen. 700 Series Color Mobile Computer User’s Manual...
Page 63 If the program does not appear in the list of installed programs, use File Explorer on your 700 Color Computer to locate the program, tap and hold the program, and then tap Delete on the pop-up menu. 700 Series Color Mobile Computer User’s Manual...
Page 64: Microsoft Activesync
Microsoft Outlook on your desktop was copied to your 700 Color Com- puter, and you did not have to type a word. Disconnect the 700 Color Computer from your computer and you are ready to go! 700 Series Color Mobile Computer User’s Manual...
Page 65 Tap to stop synchronization. View synchronization status. Tap to synchronize via IR or change synchronization settings. For more information about ActiveSync on your 700 Color Computer, switch to ActiveSync, then tap Start > Help. 700 Series Color Mobile Computer User’s Manual...
Page 66: Microsoft Pocket Outlook
If you use Outlook on your desktop, you can synchronize appointments between your device and desktop. Tap to go to Today Tap to display or edit the appointment details. Tap to create a new appointment 700 Series Color Mobile Computer User’s Manual...
Page 67: Synchronizing Calendar
Calendar and only display appointments for that project. Note: In Month View, the day of an appointment assigned to the Holiday category appears in red. This day was assigned the Holiday category. Tap to access the Month view 700 Series Color Mobile Computer User’s Manual...
Page 68: What's An All Day Event
“Normal,” then adjust the date and time appropriately. This describes the all day event. Tap to access the Day view 700 Series Color Mobile Computer User’s Manual...
Page 69: Viewing Appointments
To see a list of available actions for an appointment, tap and hold the appointment. This displays the ap- pointment in bold. Tap to access the Agenda view Note: Tap Start > Today to quickly see your appointments for the day. 700 Series Color Mobile Computer User’s Manual...
Page 70 This displays an all day event not marked Free. This displays a morn- ing appointment. This displays appoint- ments in both morning and afternoon. This displays an after- noon appointment. Tap to access the Month view 700 Series Color Mobile Computer User’s Manual...
Page 71: Creating Or Changing An Appointment
Tap to choose from predefined text. Tap to choose from previously entered locations. Tap to select a time. Tap to select a date. Notes is a good place for maps and directions. 700 Series Color Mobile Computer User’s Manual...
Page 72: Creating An All Day Event
Calendar. For more information on copying files, see Active- Sync Help. To use the device to schedule an appointment with attendees lasting all day, set type to Normal, then adjust date and time accordingly. 700 Series Color Mobile Computer User’s Manual...
Page 73: Setting A Reminder For An Appointment
Tap this to set reminders for new appointments automatically. To choose how you are reminded, for example by a sound, Tap Start > Settings > the Personal tab > the Sounds & Notifications icon. 700 Series Color Mobile Computer User’s Manual...
Page 74: Adding A Note To An Appointment
Tap to activate the keyboard. Tap to activate the writing pad. Tap to activate the recorder. Note: To edit an existing note, tap the appointment in the calendar, tap Edit, then tap the Notes tab. 700 Series Color Mobile Computer User’s Manual...
Page 75: Making An Appointment Recurring
<Edit pattern...>, and follow the steps in the wizard. Select your recurrence pattern from this drop- down list. Select <Edit pattern...> to access the wizard with which to custom- ize your recurrence. 700 Series Color Mobile Computer User’s Manual...
Page 76: Assigning An Appointment To A Category
Note: To find an appointment assigned to a category, tap Tools > Catego- ries and select the type of appointment that you want displayed. To show all appointments again, tap Tools > Categories and clear all categories. 700 Series Color Mobile Computer User’s Manual...
Page 77: Sending A Meeting Request
ISP or the network, rather than through synchronization with your desk- top, tap Tools > Options. From the Send meeting requests via drop-down list, tap the service to use to send the meeting request. 700 Series Color Mobile Computer User’s Manual...
Page 78: Finding An Appointment
Deleting an Appointment 1 In the calendar, tap and hold the appointment. 2 On the pop-up menu, tap Delete Appointment. The next time you synchronize, the appointment is also deleted from the desktop. 700 Series Color Mobile Computer User’s Manual...
Page 79: Changing Calendar Options
You may see less appointment information. Tap this to view larger text. Tap to indicate private. Tap to indicate attendees. Tap to indicate locations. Tap to indicate notes. Tap to indicate recurrences. Tap to indicate reminders. 700 Series Color Mobile Computer User’s Manual...
Page 80: Contacts: Tracking Friends And Colleagues
Tap to display or edit the contact details. Tap and hold to display a pop-up menu of actions. Tap to toggle to By Company (note the Name view) Tap to create a new contact. 700 Series Color Mobile Computer User’s Manual...
Page 81: Creating A Contact
Handwritten notes and drawings are saved as pictures when syn- chronizing with your desktop, but are removed when synchronizing with a server. For more information on synchronization, see ActiveSync Help on the desktop. 700 Series Color Mobile Computer User’s Manual...
Page 82: Viewing Contacts
Note: You can change the appearance of the contact list by tapping Tools > Options. Tap for a list of phone num- bers and e-mail addresses. Indicates the default number. Tap to toggle By Name and By Company views. 700 Series Color Mobile Computer User’s Manual...
Page 83: Creating Or Changing A Contact
Name arrow and enter the names in the proper box. Tap to access the Name fields. Tap anywhere outside the box to close and return to details. Note: New contacts are added to the displayed category. 700 Series Color Mobile Computer User’s Manual...
Page 84: Adding A Note To A Contact
Tap to activate the keyboard. Tap to activate the writing pad. Tap to activate the recorder. Note: To edit an existing note, tap the contact, tap Edit, then tap the Notes tab. 700 Series Color Mobile Computer User’s Manual...
Page 85: Assigning A Contact To A Category
A check mark indicates a selected category. Copying a Contact 1 In the contact list, select the contact. To select multiple contacts, tap and drag. 2 Tap Tools, and then select Copy Contacts. 700 Series Color Mobile Computer User’s Manual...
Page 86: Sending A Message To A Contact
Note: To send an e-mail message, you must have an e-mail address config- ured for the contact. To send an SMS (Short Messaging Service) message, you must have an SMS number for the contact, which is usually the mo- bile phone number. 700 Series Color Mobile Computer User’s Manual...
Page 87: Finding A Contact
1 In the contact list, tap and hold the contact. To select multiple contacts, tap and drag. Then, tap and hold the selected contacts. 2 On the pop-up menu, tap Delete Contact. The next time you synchro- nize, the contact is deleted from the desktop also. 700 Series Color Mobile Computer User’s Manual...
Page 88: Changing Contacts Options
S To increase the available space for displaying contacts in the list, clear Show ABC tabs. Clear this to view more contacts per screen. Tap this to view larger text. Enter the three-digit area code. Select from a drop-down list. 700 Series Color Mobile Computer User’s Manual...
Page 89: Tasks: Keeping A To Do List
Tap and hold to display a pop-up menu of actions. Tap to create a new task. Note: To change the way information is displayed in the list, tap Tools > Options. 700 Series Color Mobile Computer User’s Manual...
Page 90: Creating A Task
New items entered on one computer are copied to the other during syn- chronization. Handwritten notes and drawings are saved as metafiles (pic- tures). For more information on synchronization, see ActiveSync Help on the desktop. 700 Series Color Mobile Computer User’s Manual...
Page 91: Notes: Capturing Thoughts And Ideas
Using the input panel, enter typed text into the 700 Color Computer. Do this by tapping keys on the onscreen keyboard or by using hand- writing recognition software. S Recording Create a stand-alone recording or embed a recording into a note. 700 Series Color Mobile Computer User’s Manual...
Page 92: Synchronizing Notes
Outlook on your desktop and no longer store in the My Docu- ments folder for the 700 Color Computer. 700 Series Color Mobile Computer User’s Manual...
Page 93: Inbox: Sending And Receiving E-Mail Messages
ActiveSync. For information on initiating Inbox synchronization or changing synchro- nization settings, see ActiveSync Help on your desktop or select Start > Help > Connections to see Connections Help. 700 Series Color Mobile Computer User’s Manual...
Page 94: Managing E-Mail Messages And Folders
This synchronization of folders occurs whenever you con- nect to your mail server, create new folders, or rename or delete folders when connected. For all accounts except ActiveSync, you can access folder options by tap- ping Tools > Manage Folders. 700 Series Color Mobile Computer User’s Manual...
Page 95: Connecting To A Mail Server
Note: You can set up several e-mail accounts including your ActiveSync account, but you can set up only one SMS account. Note: You cannot add a new account while connected. Tap Accounts > Disconnect to disconnect. Note: You cannot delete your SMS account. 700 Series Color Mobile Computer User’s Manual...
Page 96 Note: The size column in the message list displays the local size and server size of a message. Even when a message has downloaded fully, these num- bers may differ because the size of a message can vary between the server and the device. 700 Series Color Mobile Computer User’s Manual...
Page 97: Composing And Sending Messages
You can directly call the sender of an SMS message by tapping the icon shown to the left, then Call. Note: Depending on the e-mail address options that you select, you can use a directory service in addition to your contact list to verify names. 700 Series Color Mobile Computer User’s Manual...
Page 98: Companion Programs
Tap to change the sort order of the list. Tap to open a document. Tap and hold an item to see a pop-up menu of actions. Tap to create a new document. 700 Series Color Mobile Computer User’s Manual...
Page 99: Typing Mode
Tap and hold to see a pop-up menu of actions. Tap to return to the document list (changes are saved automatically). Tap to change formatting options. Tap to format text. Tap to show or hide the toolbar. 700 Series Color Mobile Computer User’s Manual...
Page 100: Writing Mode
.WAV files. For more information on recording, see “Basic Skills” on page 26. For more information on using Pocket Word, tap Start > Help > Pocket Word to see Pocket Word Help. 700 Series Color Mobile Computer User’s Manual...
Page 101: Drawing Mode
Help on the desktop. Note: When you delete a file on either your desktop or your 700 Color Computer, the file is deleted in the other location the next time you syn- chronize. 700 Series Color Mobile Computer User’s Manual...
Page 102: Pocket Excel
To do so, open the workbook, tap Edit > Password. Ev- ery time you open the workbook, enter a password, preferably one that is easy for you to remember but hard for others to guess. 700 Series Color Mobile Computer User’s Manual...
Page 103: Tips For Working In Pocket Excel
Then tap Format > Column > Un- hide. For more information on using Pocket Excel, tap Start > Help > Pocket Excel to see Pocket Excel Help. 700 Series Color Mobile Computer User’s Manual...
Page 104: Msn Messenger
To set up an Exchange account, see your network administrator. For more information on using MSN Messenger, tap Start > Help > MSN Messenger to see MSN Messenger Help. To switch to MSN Messenger, tap Start > Programs > MSN Messenger. 700 Series Color Mobile Computer User’s Manual...
Page 105: Setting Up An Account
Run this program upon connection box. S Signing in to an Exchange account may take several minutes depending upon your connection speed. Reducing the number of Exchange con- tacts decreases your sign-in time. 700 Series Color Mobile Computer User’s Manual...
Page 106: Working With Contacts
To delete a contact, tap and hold the contact’s name, then tap Delete Contact from the pop-up menu. To see others online without being seen, tap Tools > My Status > Appear Offline. 700 Series Color Mobile Computer User’s Manual...
Page 107: Managing Contacts
S To receive an alert when someone adds you to their contacts list, select Alert me when I am added to a Passport contact list. S To see who has you listed as a contact, tap View. 700 Series Color Mobile Computer User’s Manual...
Page 108: Sending A Message
S To invite another contact to an ongoing chat, tap Tools > Invite and tap a contact. S To see who is already chatting or to switch between chats, tap Chats. Enter a message. Tap to send message. 700 Series Color Mobile Computer User’s Manual...
Page 109: Windows Media Player For Windows Mobile
Windows Media Player for Windows Mobile Use Microsoft Windows Media Player for Windows Mobile to play digital audio and video files that are stored on your 700 Series Computer or on a network. To switch to Windows Media Player on your 700 Color Computer, tap Start >...
Page 110: Microsoft Reader
Extras folder on the Windows Mobile Companion CD. Use ActiveSync to download the files from your desktop to your activated mobile computer as described in the Read Me file in the MSReader folder. 700 Series Color Mobile Computer User’s Manual...
Page 111: Using The Library
3 To open a book, tap its title in the Library list. Tap to scroll through the Library list. Tap to select a sort order. Tap to open a book. Tap here to navigate to other parts of the Reader. 700 Series Color Mobile Computer User’s Manual...
Page 112: Reading A Book
Tap arrows to turn the page, or tap and hold page number to bring up page riffle. You can also page through a book by using the Up/Down/Left/Right con- trols on your 700 Color Computer. 700 Series Color Mobile Computer User’s Manual...
Page 113: Using Reader Features
To remove a book from your 700 Color Computer, tap and hold the title in the Library list, and then tap Delete on the pop-up menu. 700 Series Color Mobile Computer User’s Manual...
Page 114: Pocket Internet Explorer
Favorites. For more information on using Internet Explorer, see Internet Explorer Help on the desktop. 3 Connect your 700 Color Computer to your desktop. If synchronization does not start automatically, in ActiveSync on your desktop, click Sync. 700 Series Color Mobile Computer User’s Manual...
Page 115: Mobile Favorites
S Limit the number of downloaded linked pages. In Internet Explorer on the desktop, right-click the mobile favorite you want to change and then Properties. In the Download tab, specify “0” or “1” for the number of linked pages you want to download. 700 Series Color Mobile Computer User’s Manual...
Page 116: Using Avantgo Channels
2 Tap the AvantGo Channels link. 3 Tap Activate. 4 Follow the directions on the screen. Synchronize your 700 Series Com- puter with your desktop, then tap My Channels to complete the Avant- Go setup.
Page 117: Viewing Mobile Favorites And Channels
Tap the arrow to choose from previously entered addresses. Note: To add a favorite link while using the 700 Color Computer, go to the page you want to add, tap and hold on the page, and tap Add to Favorites. 700 Series Color Mobile Computer User’s Manual...
Page 118: Getting Connected
If you do not have a built-in modem, install a modem card, or use a NULL modem cable and appropriate adapters to connect an external mo- dem to your 700 Color Computer through the serial port. 700 Series Color Mobile Computer User’s Manual...
Page 119 If you are using an external modem that is connected to your 700 Color Computer with a cable, select “Hayes Compatible on COM1.” Tap Next to continue. 700 Series Color Mobile Computer User’s Manual...
Page 120 Chapter — Windows Mobile 2003 3 Enter the access phone number, then tap Next. 4 Enter the user name, password, and domain (if provided by an ISP or your network administrator). 700 Series Color Mobile Computer User’s Manual...
Page 121: Advanced
TCP/IP tab, tap Use specific IP address, then enter the address. Tap ok to close the Advanced page, then tap Finish. 6 Tap the Advanced tab, then tap Select Location to specify your current location. These settings apply to all connections. Tap Edit to continue. 700 Series Color Mobile Computer User’s Manual...
Page 122 “MSN Messenger” on page 84. Note: To change modem connection settings in My ISP, tap Manage existing connections. Select the desired modem connection, tap Settings, and follow the instructions on the screen. 700 Series Color Mobile Computer User’s Manual...
Page 123: Creating An Ethernet Connection To An Isp
> Connections > the Advanced tab > Network Card. Tap “LAN9000” from the list of adapters installed to access and configure its properties. 4 Connect the dock to the network by using a network cable. For infor- mation, see your owner’s manual. 700 Series Color Mobile Computer User’s Manual...
Page 124: Connecting To Work
Get the following information from your network administrator. S Dial-up access telephone number S User name S Password If your 700 Color Computer does not have access to a mobile phone net- work, insert a modem card. 700 Series Color Mobile Computer User’s Manual...
Page 125 Manage existing connections. Select the desired modem connection, tap Settings, and follow the instructions on the screen. To view additional information for any screen in the wizard or while changing settings, tap the Help icon. 700 Series Color Mobile Computer User’s Manual...
Page 126: Creating A Modem Connection To Work
In the Country/Region box, enter the appropriate code when dial- ing internationally. For more information, contact an operator at your local phone company. b In the Area code box, enter the area code. Area codes are not need- ed in all countries. 700 Series Color Mobile Computer User’s Manual...
Page 127 S You want to change baud rate settings, dialing string commands, or credit card options. S You need to change port settings. S The server you are connecting to does not use dynamically-assigned addresses, and you need to enter your TCP/IP settings. 700 Series Color Mobile Computer User’s Manual...
Page 128: Creating A Wireless Network Connection To Work
1 Tap Start > Settings > the Connections tab > Connections > the Ad- vanced tab > Network Card > the Wireless tab > Add New Settings. 700 Series Color Mobile Computer User’s Manual...
Page 129 S To automatically use a network key, tap The Key is provided for me automatically. Otherwise, enter the network key. S For increased security, select Enable network access using IEEE 802.1X. Then, select the appropriate EAP type. 700 Series Color Mobile Computer User’s Manual...
Page 130 7 Tap ok to close this screen. Note: If you select to automatically connect to non-preferred networks, your device detects any new networks and provide you the opportunity to configure them. 700 Series Color Mobile Computer User’s Manual...
Page 131: Creating A Vpn Server Connection To Work
Next to VPN type, select the type of authentication to use with your device: “IPSec/L2TP” or “PPTP.” If you are not sure which option to choose, ask your network administrator. Tap Next to continue. 700 Series Color Mobile Computer User’s Manual...
Page 132 Insert necessary equipment, such as a network (Ethernet) card, into the device, and use a desired program to automatically begin connecting. For example, switch to Pocket Internet Explorer and browse to a Web page. 700 Series Color Mobile Computer User’s Manual...
Page 133: Creating An Ethernet Connection To Work
Remote synchronization with a desktop works only if a partnership is set up with that computer through ActiveSync and ActiveSync is set to al- low remote connections. Other restrictions apply. For more informa- tion, see ActiveSync Help on your desktop. 700 Series Color Mobile Computer User’s Manual...
Page 134: Ending A Connection
1 On your 700 Color Computer, tap Start > Inbox to access the Inbox application. Tap Accounts > New Account. 2 Enter an e-mail address, tap Next, then tap Next again after the status of the automatic configuration is listed as “Completed.” 700 Series Color Mobile Computer User’s Manual...
Page 135 3 Enter your user name and password, then tap Next. 4 Select the appropriate service type from the Service type drop-down list, either POP3 or IMAP4, or enter a new service type, then tap Next. 700 Series Color Mobile Computer User’s Manual...
Page 136 When finished, to connect to your e-mail server, from the Inbox applica- tion, tap Services > Connect. For more information on using the Inbox program, see “Inbox: Sending and Receiving E-mail Messages” on page 73. 700 Series Color Mobile Computer User’s Manual...
Page 137: Installing Applications
Installing Applications There are multiple ways to get an application to your 700 Series Color Mobile Computer; just as there are multiple ways to package the applica- tion for delivery. 700 Series Color Mobile Computer User’s Manual...
Page 138: Packaging An Application
700 Color Computer — providing the AutoRun system is installed in the appropriate location You can find this system in the 700 Color Management Tools portion of the Intermec Developer’s Library CD. Copying a CAB file to the “\CABFILES” folder on one of these cards automatically extracts that CAB file on every cold-boot to ensure that your system is properly set up (see page 124).
Page 139: Installing Applications
ActiveSync cable or IrDA. 2 Wait for a “Connected” message to appear in the Microsoft ActiveSync application to signal a connection to the 700 Series Computer. If neces- sary, select File > Get Connected to initiate a connection. 700 Series Color Mobile Computer User’s Manual...
Page 140: Using The Ftp Server
3 Click Explore to access the Mobile Device folder on your unit. 4 From your desktop, select Start > Windows Explorer, then browse the “C:\Intermec\700C Mgmt Tools\CabFiles” path for any CAB files needed for your 700 Color Computer. Select the appropriate file, right- click the file for a pop-up menu, then select Copy.
Page 141: Copying To A Secure Digital Storage Card
Updating the System Software You can use the Intermec Developer’s Library CD to reinstall or update the operating system software on the 700 Color Computer. For more informa- tion, contact your Intermec representative.
Page 142: Application Migration
1 From your desktop, double-click the Intermec CE Imager desktop icon to access the Intermec CEImager application. If this icon is not on your desktop, then double-click the CEIMAGER.EXE executable from the “C:\Intermec\700C Mgmt Tools\Tools\CEImager”...
Page 143 Utilities control panel applet, as follows. See Appendix A, “Configurable Settings,” for more information about this applet. a From the 700 Series Computer, tap Start > Settings > the System tab > the Utilities icon > the Registry Save tab.
Page 144: Migrating From A 700 Monochrome Computer
S Use the AUTOCAB method to extract all files when a cold-boot is per- formed on the 700 Color Computer. This method is on the Intermec Developer’s Library CD, see its Software Tools User’s Manual for informa- tion.
Page 145: Network Support
Network Support The 700 Series Color Mobile Computer can integrate up to three radios in a single unit, and automatically installs the appropriate software for radio use when the unit is powered on. The Intermec CORE (Common Object Resource Environment) applica-...
Page 146: Core
CORE The Intermec CORE application provides a framework for various mod- ules that let you configure and manage your Intermec products. These modules are software plug-ins that can be configuration tools, such as the 802.11b radio configuration module, or they can provide information on your environment, such as a battery life module.
Page 147: Network Adapters
S WWAN (Wireless WAN) — page 134. S Wireless Personal Area Networking — page 173. Note that the tip of the antenna attached to your 700 Series Computer is color-coded to identify its WWAN radio type. This does not apply to the 730 Computer.
Page 148: Ethernet Communications
Ethernet Communications Note: This section does not apply to the 730 Computer. Follow the steps below to start Ethernet communications on the 700 Series Computer. If your system does not contain an 802.11b radio, then Ethernet networking using DHCP is selected as the default.
Page 149: B Communications
802.11 antenna icon shown to the left appears in the system tray as circled in the following illustration. To configure 802.11b communications on the 700 Series Computer, tap Start > Settings > the System tab > Wireless Network to access the Profile Wizard for the 802.11b radio module.
Page 150: 700 Series Color Mobile Computer User's Manual
Identifies the antenna used with the 802.11b radio: “Primary,” “Secondary,” or “Diversity.” AP Mac Identifies the MAC address of the access point to which this 700 Series Computer is connected. Connected to Reports the connection status and to which SSID this 700 Series Computer is attached.
Page 151: 700 Series Color Mobile Computer User's Manual
Desired SSID Identifies the preferred Service Set Identifier (SSID). Driver Name Identifies the 802.1x driver installed on this 700 Series Computer. Last 5 Supp Msgs Monitors and reports the 802.1x Security Supplicant activity. Scanlist Indicates whether the Scan List option was enabled or disabled.
Page 152: No Networking
The Network Selection APIs change the network adapter configuration programmatically. Both drivers support the same IOCTL function num- bers for loading and unloading the drivers. Go to Chapter 7, “Program- ming,” to see the APIs. 700 Series Color Mobile Computer User’s Manual...
Page 153: Network Connections
Network Support Network Connections From the 700 Series Computer, tap Start > Settings > the Connections tab > Connections > the Advanced tab > Network Card to access the net- work connections for this unit. Make the changes necessary for your net- work, then tap ok when finished.
Page 154: Wwan Radio Options
Indicates whether serial communications passed (“Serial com OK”) or failed (“Serial com FAIL”) in its last transaction. A status of “Serial com FAIL” typically indicates that the 700 Series Com- puter is unable to establish communication with the radio module installed within.
Page 155: 700 Series Color Mobile Computer User's Manual
Usually indicates the signal strength for this radio module. Three filled dots indicate a high quality or strong signal. Three empty dots indicate that the signal is out of range or there is no signal detected. 700 Series Color Mobile Computer User’s Manual...
Page 156: 700 Series Color Mobile Computer User's Manual
Identifies the hardware revision of the WAN radio module installed in your unit. IMSI/MIN Shows the IMSI (International Mobile Subscriber Identity) number assigned to the Subscriber Identity Module (SIM) card installed in this 700 Series Computer. Manufacturer Lists the name of the manufacturer that developed this radio module, such as “Sierra Wireless.”...
Page 157: 700 Series Color Mobile Computer User's Manual
(beneath the Tools category), download any of the CAB files shown, then choose your carrier CAB files. Intermec recommends two methods with which to load these CAB files onto your 760 Computer: via the Microsoft ActiveSync application (next paragraph) or via a CompactFlash or Secure Digital storage card (next page).
Page 158: 700 Series Color Mobile Computer User's Manual
3 Cold-boot your 760 Computer. Remove the battery pack and press the reset button in the bottom of the battery compartment. 4 Go through the normal getting started steps detailed in your 700 Series Color Mobile Computer Quick Start Guide P/N: 962-054-053.
Page 159: 700 Series Color Mobile Computer User's Manual
3 Tap Yes, I accept to accept the license agreement, then tap OK to con- tinue. Note that this license agreement does not appear again after this installation. 4 Tap OK for the 760 Computer to perform a warm-boot and complete the installation. 700 Series Color Mobile Computer User’s Manual...
Page 160: 700 Series Color Mobile Computer User's Manual
Intermec Technologies does not recommend using the SB555 Watcher program to make data and voice calls on a daily basis for these reasons: S The SB555 Watcher application is a third-party application unaware of certain power management methods used in your 760 Computer.
Page 161: 700 Series Color Mobile Computer User's Manual
1 Tap Start > Programs > the Watcher icon or tap the Watcher icon from the NDISTRAY via the Today screen (circled in the following illustra- tion) to launch the SB555 Watcher program. 700 Series Color Mobile Computer User’s Manual...
Page 162: 700 Series Color Mobile Computer User's Manual
5 At the appropriate screen, enter the Activation Code (OTSL, MSL, OTKSL, or SPC) provided by your carrier and tap Next. 6 Enter the phone number provided when your 760 Computer was acti- vated and tap Next. 700 Series Color Mobile Computer User’s Manual...
Page 163: 700 Series Color Mobile Computer User's Manual
2 Start the Watcher program again, select Automated Activation, then click Next. Note: You must be in the Verizon coverage area to activate your 760 Computer and only in the location of intended use. 700 Series Color Mobile Computer User’s Manual...
Page 164: 700 Series Color Mobile Computer User's Manual
Chapter — Network Support 3 Click Next, click Next again to dial the number displayed on the screen. 4 The activation process starts automatically. 700 Series Color Mobile Computer User’s Manual...
Page 165: 700 Series Color Mobile Computer User's Manual
Chapter 4 — Network Support 5 You will see a series of unlock codes on your screen. 6 The following illustration shows the result of a successful activation. 700 Series Color Mobile Computer User’s Manual...
Page 166: 700 Series Color Mobile Computer User's Manual
8 Select Start > Internet Explorer, then choose a web site. Your unit is now successfully activated. 9 Perform a cold-boot on your 760 Computer to uninstall the Watcher application. Watcher is intended for activation purposes only. Intermec recommends using the following for establishing and maintaining con- nection to the WAN radio.
Page 167: 700 Series Color Mobile Computer User's Manual
Registry Save tab. Clear the Enable Registry Save box. 2 Perform a cold-boot on your 760 Computer, then go through the nor- mal Pocket PC set-up (i.e. Align Screen etc.). 700 Series Color Mobile Computer User’s Manual...
Page 168: 700 Series Color Mobile Computer User's Manual
(circled in the following illustration). 7 In the NDISTRAY pop-up menu (the Network Driver Interface Speci- fication tray application), select No Networking and Auto FTP Off. Tap anywhere on the screen to close the menu. 700 Series Color Mobile Computer User’s Manual...
Page 169: 700 Series Color Mobile Computer User's Manual
SB555 Watcher program. 9 Tap Yes, I accept to accept the license agreement, then tap OK to con- tinue. Note that this license agreement does not appear again after this installation. 700 Series Color Mobile Computer User’s Manual...
Page 170: 700 Series Color Mobile Computer User's Manual
1 Tap Start > Programs > the Watcher icon or tap the Watcher icon from the NDISTRAY via the Today screen (circled in the following illustra- tion) to launch the SB555 Watcher program. 700 Series Color Mobile Computer User’s Manual...
Page 171: 700 Series Color Mobile Computer User's Manual
Network Support 2 If your 760 Computer was not previously activated, Watcher automati- cally starts the Activation Wizard. Otherwise, select Manual Activation to continue. 3 Enter the MSL or lock code received from Sprint. 700 Series Color Mobile Computer User’s Manual...
Page 172: 700 Series Color Mobile Computer User's Manual
Note: If the “searching for SB555” screen does not proceed to the next screen after 30-40 seconds, perform a warm-boot on your 760 Comput- er, then restart the Watcher program. 700 Series Color Mobile Computer User’s Manual...
Page 173: 700 Series Color Mobile Computer User's Manual
6 If Data Provisioning does not start automatically, select Admin > Data Provisioning from the bottom menu bar. 7 Tap Yes to proceed with data provisioning. Activation over the air typically takes 1–20 minutes. 700 Series Color Mobile Computer User’s Manual...
Page 174: 700 Series Color Mobile Computer User's Manual
If after several attempts to complete the Data Provisioning over the air, it may be necessary to manually enter the data activation method. Manual activation is beyond the scope of this guide, therefore, go to Intermec Knowledge Central (http://www.intermec.com, then select Service & Support >...
Page 175: 700 Series Color Mobile Computer User's Manual
10 Select Start > Internet Explorer, then choose a web site. Your unit is now successfully activated. Perform a cold-boot on your 760 Computer to uninstall the Watcher ap- plication. Watcher is intended for activation purposes only. Intermec rec- ommends using the following for establishing and maintaining connection to the WAN radio.
Page 176: 700 Series Color Mobile Computer User's Manual
You must use a Secure Digital storage card with only the WWANINITxxxxx.CAB file in the “SDMMC/Cabfiles” directory, where “xxxxx” is the version number. You can download this CAB file from the Intermec web site, via the fol- lowing: 1 Select Service & Support > Developers Support from the blue naviga- tion bar on the Intermec home page.
Page 177: 700 Series Color Mobile Computer User's Manual
3 Tap the WWANINITxxxxx.CAB file to perform the installation. 4 Perform a warm-boot on the 760 Computer. 5 From the Today screen, tap the LAN Network icon in the System Tray (circled in the following illustration). 700 Series Color Mobile Computer User’s Manual...
Page 178: 700 Series Color Mobile Computer User's Manual
1 Select Start > Settings > the Connections tab > Connetions. Under My ISP, tap Add a new modem connection. 2 Enter “1XRTT” as the name for the connection, select “WANA on COM4” from the Select a modem drop-down list, then tap Next. 700 Series Color Mobile Computer User’s Manual...
Page 179: 700 Series Color Mobile Computer User's Manual
Select Start > Help for more information or tap use dialing rules to make modifications. Note that this screen may vary based on your dialing rules. 4 Tap Advanced to continue. 700 Series Color Mobile Computer User’s Manual...
Page 180: 700 Series Color Mobile Computer User's Manual
Do the following to run the WWANInit application: 1 From the Today screen, tap the WAN Network icon in the System Tray (circled in the following illustration) or select Start > WWANInit to start the application. 700 Series Color Mobile Computer User’s Manual...
Page 181: 700 Series Color Mobile Computer User's Manual
760 Computer battery This is available from the activat- compartment, begins with 099. ing organization. 5 Click OK. You should see a pop-up message with “Connecting to my → connection then connected”. 700 Series Color Mobile Computer User’s Manual...
Page 182: 700 Series Color Mobile Computer User's Manual
7 Tap ok when prompted. 8 Select Start > Internet Explorer, then tap the large MSN Mobile link. 9 Tap the small connect to MSN Mobile link. After about 20 seconds, you should connect to the web. 700 Series Color Mobile Computer User’s Manual...
Page 183: Gsm/Gprs
Indicates whether serial communications passed (“Serial com OK”) or failed (“Serial com FAIL”) in its last transaction. A status of “Serial com FAIL” typically indicates that the 700 Series Com- puter is unable to establish communication with the radio module installed within.
Page 184: 700 Series Color Mobile Computer User's Manual
Displays the RSSI frequency or lists “Unavailable” if there is no signal or the signal cannot be retrieved from the radio module. SIM Status Identifies whether a SIM card is installed in this 700 Series Computer. 700 Series Color Mobile Computer User’s Manual...
Page 185: Phoneutility
Note: This application is for GPRS radios only, due to E911 requirements issued by the FCC. CDMA radios no longer have voice activation. With the WAN radio module installed in your 700 Series Computer, you can send and receive telephone calls. Use the speaker on the back of the computer as your earpiece and use the connector on the bottom of the computer for your mouthpiece.
Page 186: 700 Series Color Mobile Computer User's Manual
Network Support Notification Tap Settings to set your 700 Series Computer to either ring or vibrate or do both, then tap OK or ok to return to the Audio Mode screen. If you need to adjust the audio settings, tap Advanced Audio to continue.
Page 187: 700 Series Color Mobile Computer User's Manual
Click OK or ok to return to the Notification screen. Speakerphone Output/Input Lev- Handset Output/Input Levels Tap ? for more information on these level settings, then click ok or OK to return to the Output/Input Levels screen. 700 Series Color Mobile Computer User’s Manual...
Page 188: At Command Interface
Use the MC45 AT command interface from Siemens AG to program the GPRS/GSM MC45 radio module. The “MC45 Siemens Cellular Engine AT Command Set” is available either from Intermec Technologies or from Siemens AG. Contact either your Intermec representative or the Siemens AG support personnel at the following URL for more information.
Page 189: 700 Series Color Mobile Computer User's Manual
COM4. Do the following to initiate this con- nection and test these commands to your radio: 1 From the 700 Series Computer, select Start > Settings > the Connections tab > Connections. Under My ISP, tap Add a new modem connection.
Page 190: 700 Series Color Mobile Computer User's Manual
3 Enter a phone number as it should be dialed, then tap Next to continue. Select Start > Help for more information or tap use dialing rules to make modifications. Note that this screen may vary based on your dialing rules. 4 Tap Advanced to continue. 700 Series Color Mobile Computer User’s Manual...
Page 191: 700 Series Color Mobile Computer User's Manual
5 Select “115200” from the Baud rate drop-down list via the General page. 6 Tap the Port Settings tab, check Enter dialing commands manually, then tap ok Finish to return to the Connections screen. , then 700 Series Color Mobile Computer User’s Manual...
Page 192: 700 Series Color Mobile Computer User's Manual
Note that each “AT” com- mand must start with the “at” characters. S To see what you typed onscreen, type “ate1” to initiate the AT Echo command, then press Enter. 700 Series Color Mobile Computer User’s Manual...
Page 193: Wireless Personal Area Networking
The 700 Series Computer retains the Bluetooth state when warm-boots are performed, for example: S If Bluetooth is active, and a warm-boot was performed, the 700 Series Computer boots up with the Bluetooth state activated and Bluetooth virtual COM ports (such as printing) registered. However, you must reactivate connections, as the system does not do these automatically.
Page 194: 700 Series Color Mobile Computer User's Manual
Wireless Printing Use this tab to print via Bluetooth devices. Tap Device Discovery to disco- ver (or scan) for remote Bluetooth devices. When the 700 Series Comput- er is finished scanning, any newly discovered devices appear in the upper Devices box.
Page 195: 700 Series Color Mobile Computer User's Manual
When you enable Wireless Printing, a status message is shown near the bottom of the screen to confirm your action. To print a test page to your printer, tap Print Test Page. Tap ok to return to the Wireless Printing page. 700 Series Color Mobile Computer User’s Manual...
Page 196: 700 Series Color Mobile Computer User's Manual
When the list is complete, tap on a device to which to send the file. Note: in some cases, the user of the target device has to “accept” the file before it is transmitted. 700 Series Color Mobile Computer User’s Manual...
Page 197: Autoip/Dhcp
Note: To extend the number of attempts that a DHCP client makes to get a DHCP address, use the DhcpRetryDialogue and DhcpMaxRetry registry settings. Note: Change the AutoInterval registry key value to make the client retry more often to obtain a DHCP address. 700 Series Color Mobile Computer User’s Manual...
Page 198: Management Information Base
The MIB is a structured collection of such objects. You will find the following MIB files either in the 700 Color Management Tools portion of the Intermec Developer’s Library CD or on the web via http://www.intermec.com: S INTERMEC.MIB...
Page 199: Object Identifiers
IP address of this entry (same as Subnet Mask). Configuring with SNMP The community string allows an SNMP manager to manage the 700 Series Computer with a specified privilege level. The default read-only commu- nity string is “public” and “private” is the default read/write community string.
Page 200: 700 Series Color Mobile Computer User's Manual
Chapter — Network Support 700 Series Color Mobile Computer User’s Manual...
Page 201: Printer Support
Printer Support The 700 Series Color Mobile Computer works with the following printers from Intermec Technologies. Contact an Intermec representative for infor- mation about these printers. S 6820 A full-page, 80-column printer. S 6808 A 4-inch belt-mount printer. S PB20 A 2-inch belt-mount printer with a Bluetooth compatible module from Socket Communications.
Page 202: Printing Ascii
Win32 APIs are required to print di- rectly to the port. Directly to a Generic Serial Port To print directly to a generic serial port printer (non-Intermec printers): S Use CreateFile() to open ports - COM1: can be opened on most de- vices.
Page 203: Npcp Printer Driver
NPCP Driver Installation and Removal Use LPT9: for the NPCP printer device and COM1 for the last parame- ter. COM1 is the connection available via the 700 Series Computer. Applications use the RegisterDevice() function to install the driver. DeregisterDevice() uninstalls the device driver and frees memory space when the driver is not required.
Page 204: Opening The Npcp Driver
The print data written to the driver must contain the proper printer commands for formatting. If the function returns FALSE, the NPCP error may be retrieved using IOCTL_NPCP_ERROR. See the description on the next page. 700 Series Color Mobile Computer User’s Manual...
Page 205: Npcp Driver I/O Controls
If an error oc- curs during the polling process, the operation will return FALSE and the application can get the extended error code by using IOCTL_NPCP_ERROR. No parameters are required. 700 Series Color Mobile Computer User’s Manual...
Page 206: Npcp Printer Communications
IOCTL, then use IOCTL_NPCP_ERROR to get the error and determine the correct recovery procedure. Sample Code See sample code in the “\700C Dev Tools\Installable Drivers\Port Drivers\Npcp\NPCPPrint\” directory for more details on printing, printer communications and error code handling. 700 Series Color Mobile Computer User’s Manual...
Page 207: Npcp Error Codes
#define HEADFAULT (BYTE)228 // printer head short or driver short error #define PFFAULT (BYTE)229 // paper feed motor fault. #define FRAME_NOT_ACKED 0x8000 // frame was not received by printer and need to be resent. 700 Series Color Mobile Computer User’s Manual...
Page 208: Dtr Driver Installation And Removal
You may use DeregisterDevice() to uninstall the driver. Install() HANDLE hDevice; TCHAR port[6]; port[0] = TCHAR(‘C’); port[1] = TCHAR(‘O’); port[2] = TCHAR(‘M’); port[3] = TCHAR(‘1’); port[4] = TCHAR(‘:’); port[5] = TCHAR(0); hDevice = RegisterDevice ( (TEXT(”DTR”), 1, TEXT(”\\WINDOWS\\ONEIL.DLL”), (DWORD)port); 700 Series Color Mobile Computer User’s Manual...
Page 209: Opening The Dtr Driver
1 Use CreateFile(); to open the printer driver. 2 Use WriteFile() to write your data to the printer. Check for errors and that all data were written. 3 Use CloseHandle() to close the driver. 700 Series Color Mobile Computer User’s Manual...
Page 210: 700 Series Color Mobile Computer User's Manual
Chapter — Printer Support 700 Series Color Mobile Computer User’s Manual...
Page 211: Scanner Support
Scanner Support The 700 Series Color Mobile Computer is available with imaging or laser scanning technologies, including the following: APS Linear Imager: (standard for 730 Computers) Reads 1D symbologies and PDF417 bar codes. Linear — includes the EV10 Scan Engine...
Page 212: Scanner Control And Data Transfer
For more information, see the SDK User’s Manual provided with your Windows CE/PocketPC SDK. EasySet Software Use the Intermec EasySet software to print configuration labels you can scan to change your configuration settings. For more information, see the EasySet online help. EasySet is available from the Intermec Data Capture web site.
Page 213: Data Collection Configuration
You can configure scanner settings for the 700 Series Computer via the Intermec Settings control panel applet. From the 700 Series Computer, tap Start > Settings > the System tab > the Intermec Settings icon. See the Intermec Computer Command Reference Manual (P/N: 073529) for infor- mation about the settings you can configure with this applet.
Page 214: Internal Scanners
Reference Manual. The online manual is available from the Intermec web site at www.intermec.com. 1 From the 700 Series Computer, tap Start > Settings > the System tab > the Intermec Settings icon. 2 Double-tap the Scanners, Symbologies folder, then expand (+) the Internal Scanner option.
Page 215: Internal Scanner Supported Symbologies
Depending on what is selected as the scanner model, image settings, de- code security, scanner settings, and virtual wedge are configured from the Intermec Settings applet. See the the Intermec Computer Command Refer- ence Manual, available from the Intermec web site at www.intermec.com, for more information about each enabled option.
Page 216: Tethered Scanners
For Units With PSM Builds Older than 3.00 Enabling and Disabling On the 700 Series Computer, tap Start > Today. Tap the bar code scanner icon in the System Tray (circled below). Initially, the bar code scanner icon indicates that this feature is disabled (shown to the left).
Page 217: Error Message
1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200 S Data Bits: 7 or 8 S Parity: None, Odd, Even, Mark, Space S Stop Bits: 1 or 2 S Flow Control: None or Hardware 700 Series Color Mobile Computer User’s Manual...
Page 218: 700 Series Color Mobile Computer User's Manual
Welch Allyn 1470 Imager Settings You can set the Welch Allyn 1470 Imager to this configuration by scan- ning the Factory Default Settings label. 700 Series Color Mobile Computer User’s Manual...
Page 219: Scanner Cabling
Scanner Cabling A null modem cable is required for the Welch Allyn 1470 Imager to com- municate with the 700 Series Computer when using the 700 Series Serial Cable (P/N: 226-999-001). Sabre 1551E / 1553 Cables connect directly to the Model 700 COM Port.
Page 220: 700 Series Color Mobile Computer User's Manual
&dwLength, // Number bytes returned. NULL, // Time stamp of the received data. NULL. INFINITE // Number of milliseconds to wait. when done using this COM interface, delete it: ITCDeviceClose( (IUnknown **) pIADC); 700 Series Color Mobile Computer User’s Manual...
Page 221: For Units With Psm Build 3.00 Or Newer
1 Connect your tethered scanner to the tethered scanner port. 2 From the 700 Series Computer, tap Start > Settings > the System tab > the Intermec Settings icon. 3 Double-tap the Scanners, Symbologies folder, then expand (+) the Tethered Scanner option.
Page 222: 700 Series Color Mobile Computer User's Manual
5 Make sure a scanner is connected to your 700 Computer properly. Then, tap to check Scanner Port State, then tap File > Save Settings from the bottom of the screen. These changes will take several moments to reset. 700 Series Color Mobile Computer User’s Manual...
Page 223: 700 Series Color Mobile Computer User's Manual
ASCII Selected for Scanner Model To send data coming into the 700 Series Computer through the COM1 port from an external input device, as keyboard data to an application on the desktop, do the following: 1 Select “ASCII”...
Page 224: Troubleshooting The 1551E/1553 Tethered Scanner
Disable that ap- plication to free up the COM1 port before you can enable the scanner. “x” is the COM port number, such as 1, 2, or 3. 700 Series Color Mobile Computer User’s Manual...
Page 225: Tethered Scanner Supported Symbologies
F/w version 2.15 or later RSS Expanded F/w version 2.15 or later F/w version 2.15 or later Codablock A Available in 1551 0808 PDF Codablock F Available in 1551 0808 PDF UCC Composite 700 Series Color Mobile Computer User’s Manual...
Page 226: 700 Series Color Mobile Computer User's Manual
