Summary of Contents for Paradox ParaVox

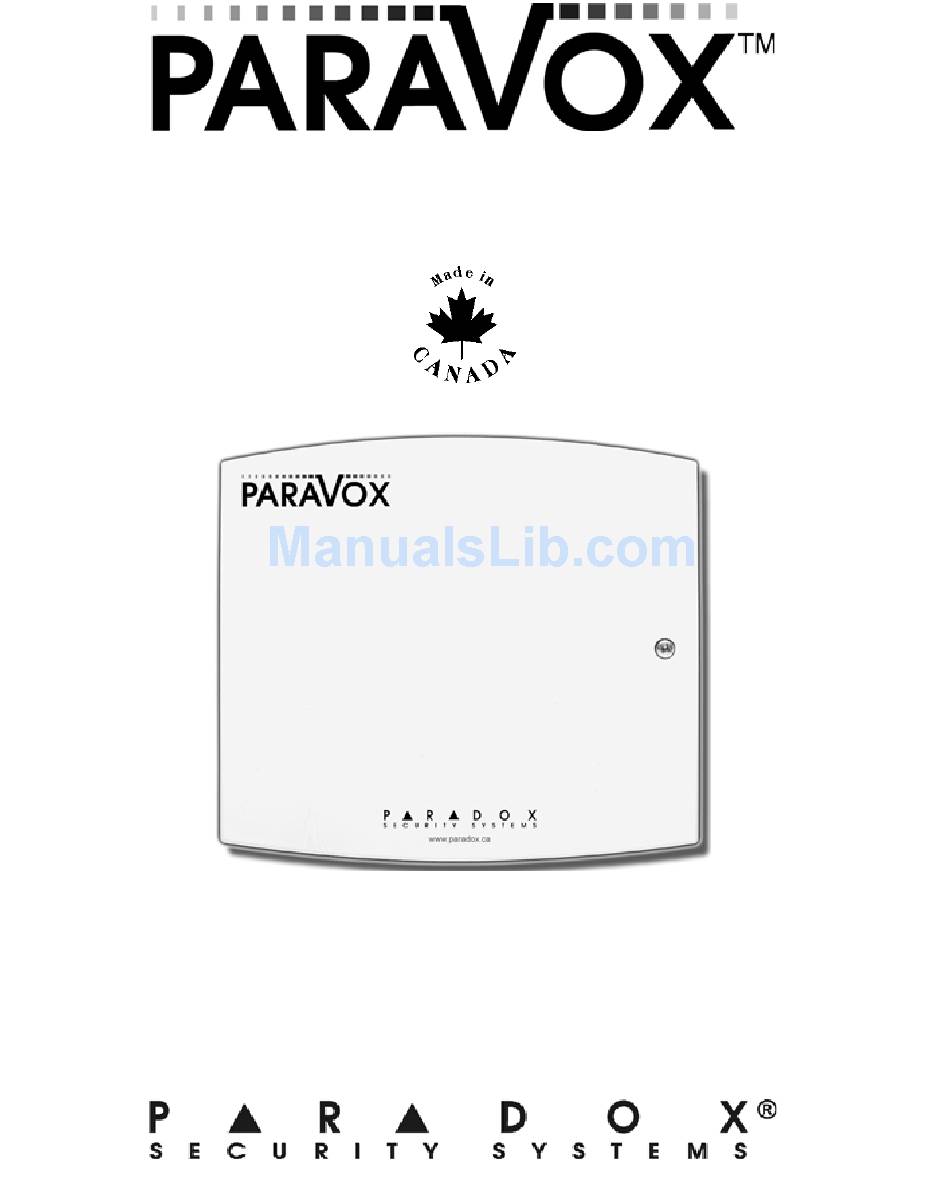

- Page 1 OICE IALER ODULE “S ” ECURITY OICE ’ UIDE...
-
Page 3: Table Of Contents
TABLE OF CONTENTS 1.0 INTRODUCTION ................. 2 1.1 S ..................2 YSTEM EATURES 1.2 G ..................3 LOSSARY OF ERMS 2.0 BASIC OPERATION ................4 2.1 S ................... 4 TAND 2.2 D ....................4 IALER 3.0 USER’S OPENING MENU ..............6 4.0 USER’S PROGRAMMING MODE ............ -
Page 4: Introduction
All the user needs to remember is their P.I.N. (Personal Identification Number) The ParaVox Voice Dialer has four input zones, programmable to accept a variety of input configurations and devices. These zone inputs can be linked to four different 32-digit telephone numbers delivering up to four different messages (voice or pager). -
Page 5: Glossary Of Terms
Pulses Per Second Kiss off User acknowledges receipt of voice messages by pressing the [#] or [*] key twice within 2 seconds. Kiss off can also be performed locally if Zone 4 is programmed as a Local Reset switch. ParaVox 3... -
Page 6: Basic Operation
To cancel all further dialing attempts to all numbers you must press the [*] key twice. 5) After "kiss off", the ParaVox will dial the next number in the dial-out list and it will no longer attempt to dial this number again regardless of the number of "Redials"... - Page 7 9) After transmitting the message, it will hang up and dial the next number in the dial-out list. Since the ParaVox assumes that the pager service has received and relayed the message, acknowledgment ("kiss off") of the message is not required and the ParaVox no longer attempts to dial this number again regardless of the number of "Redials".
-
Page 8: User's Opening Menu
3.0 USER’S OPENING MENU To enter the User’s Opening Menu: The User's Opening Menu allows you to activate or deactivate the programmable outputs. The programmable outputs (PGM1 & PGM2) can be used for remote switching of other devices. For example, a PGM can be used to turn on air conditioning or heat, extinguish lights, activate a sprinkler system, or open a garage door. - Page 9 (except when recording messages). In most situations you can type over voice prompts rather than waiting for the voice prompt to end. The ParaVox will repeat the voice prompts four times, if no actions are made in this time, the ParaVox will automatically hang up.
-
Page 10: User's Programming Mode
2) Once in the User's Programming Mode you will have access to the User's Main Menu. Select the desired action as demonstrated below. Entering the User's Programming Mode allows you to set most of the ParaVox's parameters. Please note that while in the User's Programming Mode, detailed voice prompts will guide you through all available selections. -
Page 11: Store Telephone Numbers
[5] to [8]. When a telephone number location is assigned to a zone (see section 4.5 on page 14), the ParaVox will dial the number programmed here whenever the zone is triggered. The telephone numbers are programmed into the desired locations as described above. -
Page 12: Delete Telephone And Pager Numbers
Select the desired voice message telephone or pager number location. Deletion is confirmed by entering [1] for yes or [2] for no. When delete telephone number, ParaVox will automatically remove the number from all zone assignments. 10 User’s Guide... -
Page 13: Record Voice Or Pager Messages
4.3 R ECORD OICE OR AGER ESSAGES ParaVox 11... -
Page 14: Voice Messages
(see section 4.5 on page 14) and when the number is reached, the ParaVox will play the recorded message linked to the triggered zone. Default Messages: "Trigger of zone x detected. Key hash twice or star twice to accept."... -
Page 15: Change User Pin (Default : 1234)
: 1234) HANGE EFAULT The ParaVox system supports up to four user PINs, which can be 4 or 6 digits in length as programmed by your installer. After entering the User's Programming Mode, press the [4] key to enter the Change User PIN menu and enter the new PIN twice. -
Page 16: Telephone Number Assignment
UMBER SSIGNMENT The ParaVox can assign up to four telephone or pager numbers to each of the four zone inputs. This means each zone has a prioritized sequence of dial-outs customized to suit the input. Since voice and pager messages are linked to specific zones, telephone numbers assigned to a zone will play the same voice messages and pager numbers will send the same numerical message. -
Page 17: Test Message Sending
User’s Main Menu, then press the [4] key to select Telephone Number Location 4. The ParaVox will dial the number stored in Telephone Number Location 4. When the Post Dial Delay has elapsed, the ParaVox will transmit the message programmed in Voice Message Location 1. -
Page 18: Programming Data Sheet
5.0 PROGRAMMING DATA SHEET The following pages have been provided to record the ParaVox's settings. Personal Identification Numbers (PINs) User PIN Length (set by installer): _____ User PIN 1 (section 4.4): __________ Default: 1234 User PIN 2 (section 4.4): __________ Default: 1234 User PIN 3 (section 4.4):... - Page 19 4th Location Zone 1: ____ ____ ____ ____ Zone 2: ____ ____ ____ ____ Zone 3: ____ ____ ____ ____ Zone 4: ____ ____ ____ ____ Notes Zone 1: _______________________________________________________ Zone 2: _______________________________________________________ Zone 3: _______________________________________________________ Zone 4: _______________________________________________________ ParaVox 17...
-
Page 20: Index
........4 Stand-by ....... 8 User’s Programming ..... 14 Telephone Number Assignment ....10 Telephone Numbers, Deleting ....9 Telephone Numbers, Storing Number ........3 Terms, Glossary ..........5 Pager ......15 Test Message Sending ......4 Voice Message Paravox 18... - Page 21 ........ 13 User PIN, Change ......13 User PIN, Changing ......8 User Programming Mode ......6 User’s Opening Menu User’s Programming Mode ......13 Change User PIN ....10 Deleting Pager Numbers ..10 Deleting Telephone Numbers ..... 11 Recording Messages ....9 Store Telephone Numbers ..
- Page 22 WARRANTY The Seller warrants its products to be free from defects in materials and workmanship under normal use for a period of one year. Except as specifically stated herein, all express or implied warranties whatsoever, statutory or otherwise, including without limitation, any implied warranty of merchantability and fitness for a particular purpose, are expr\essly excluded.
- Page 24 PVOXEU-03 PRINTED IN CANADA - 06/2002...
