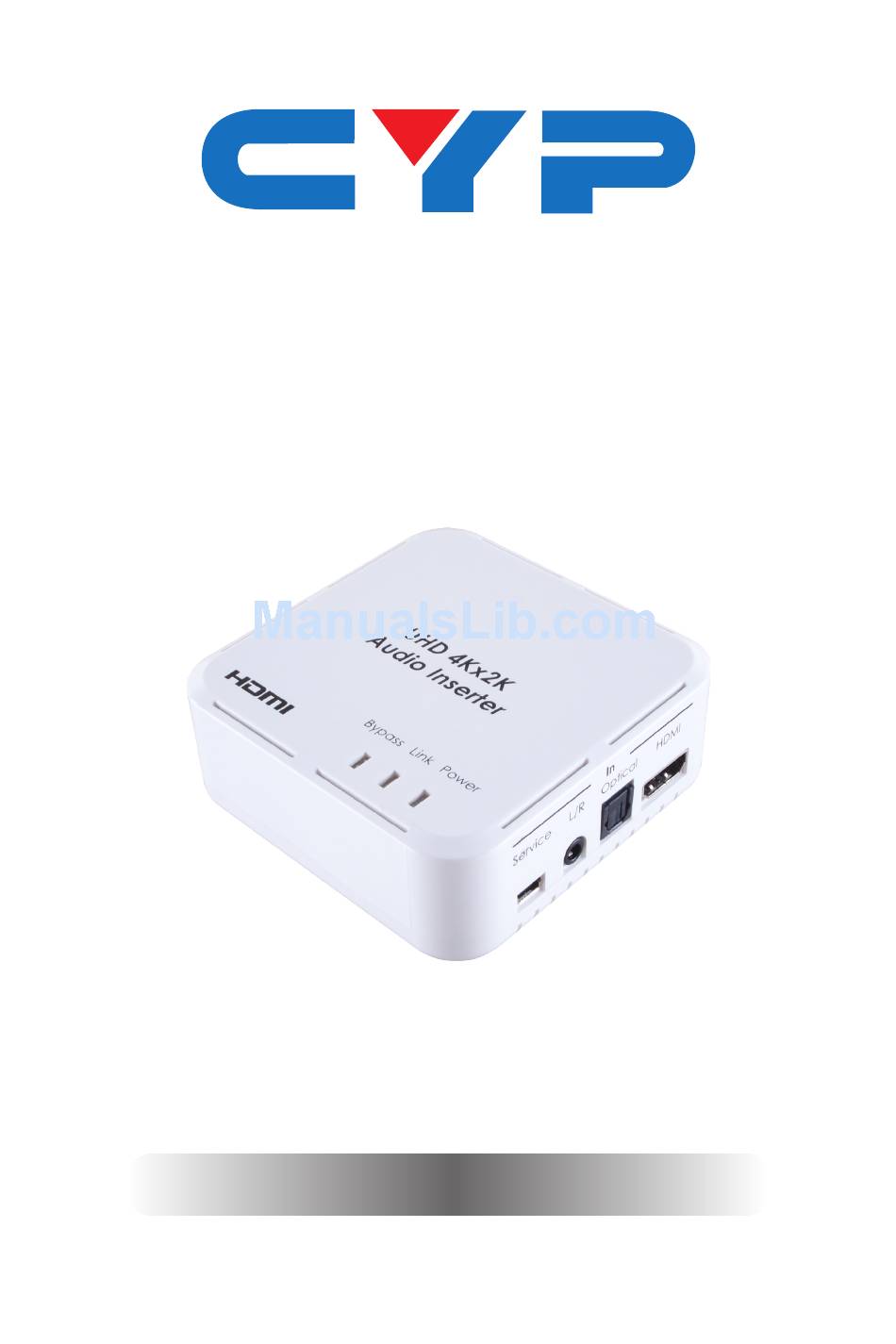

- Page 1 CPRO-11SI HDMI 4K2K Audio Inserter Operation Manual Operation Manual...
- Page 3 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. Cypress Technology assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document.
-
Page 4: Safety Precautions
SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons. -
Page 5: Table Of Contents
CONTENTS 1. Introduction ..........1 2. Applications ........... 1 3. Package Contents ........ 1 4. System Requirements ......1 5. Features ..........2 6. Operation Controls and Functions ..3 6.1 Top Panel ...........3 6.2 Right Panel .........3 6.3 Left Panel ...........4 6.4 Rear Panel .........4 7. -
Page 6: Introduction
1. INTRODUCTION The HDMI ™ 4K × 2K Audio Inserter allows an external audio signal to be inserted into your HDMI or DVI (with an HDMI to DVI adaptor) signal path. The unit allows you to insert analog stereo or multi-channel surround sound (via the digital optical input) giving you the flexibility to add your choice of audio to the video while extending your HDMI signal. -
Page 7: Features
5. FEATURES • Compliant with HDMI, HDCP 1.2 and DVI 1.0 • Supports HDMI audio sampling rates up to 192 kHz • Supports Optical (S/PDIF) digital audio sampling rates up to 192 kHz • Supports selection of original HDMI audio or embedding of external Digital or Analog audio into HDMI signal pathway •... -
Page 8: Operation Controls And Functions
6. OPERATION CONTROLS AND FUNCTIONS UHD 4Kx2K 6.1 Top Panel Audio Inserter Bypass Link Power 1 2 3 Bypass LED: This LED will illuminate when the audio input is switched to HDMI, bypassing the external audio inputs. Link LED: This LED will illuminate when an active HDMI signal is being received. -
Page 9: Left Panel
6.3 Left Panel HDMI Out HDMI Out: Connect to a TV/display with an HDMI cable for output of the combined audio/video HDMI signal. Note: For playback of 4K × 2K/3D HDMI source signals, a 4K × 2K/3D capable display and High Speed HDMI cables are required. 6.4 Rear Panel DC 5V Optical... -
Page 10: Connection Diagram
7. CONNECTION DIAGRAM PC/Laptop Blu-ray Player CD Player HDMI Optical Analog Input Digital Stereo Input Input Power Supply HDMI 4Kx2K Audio Inserter Bypass Link Power HDMI Output AV Receiver HDMI Output HDTV or Monitor... -
Page 11: Specifications
8. SPECIFICATIONS 8.1 Technical Specifications Video Bandwidth 300 Mbps/10.2 Gbps Input Ports 1×HDMI, 1×Optical, 1×3.5mm Mini-jack, 1×Mini-USB (Manufacturer use only) Output Port 1×HDMI Audio Sampling Rates HDMI: Up to 192 kHz S/PDIF (Optical): Up to 192 kHz HDMI Audio Formats LPCM 2/5.1/7.1CH, Dolby Digital 2~5.1CH, DTS 2~5.1CH, Dolby Digital Plus, Dolby TrueHD &... -
Page 12: Supported Audio Formats
8.2 Supported Audio Formats INPUT HDMI Optical Analog FORMAT LPCM 2CH LPCM 5.1CH LPCM 7.1CH Bitstream 5.1CH Bitstream 7.1CH 9. ACRONYMS ACRONYM COMPLETE TERM 4K×2K Ultra HD (3840×2160 / 4096×2160) Digital Theater System EDID Extended Display Identification Data HDCP... - Page 16 CYPRESS TECHNOLOGY CO., LTD Home page: http://www.cypress.com.tw 20130627 MPM-CPRO11SI...
