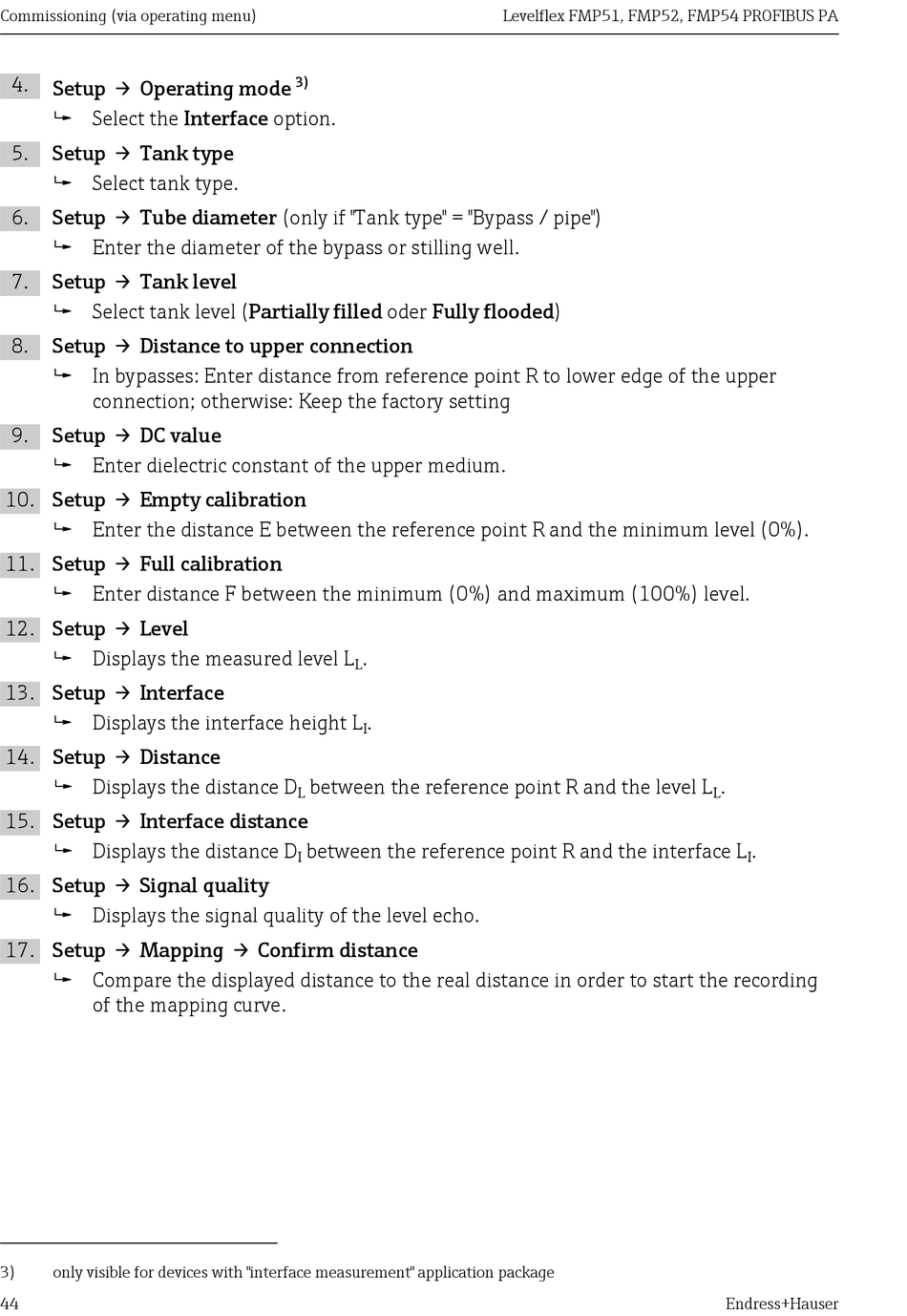

Commissioning (via operating menu)
4.
Setup → Operating mode
 Select the Interface option.
5. Setup → Tank type
 Select tank type.
6. Setup → Tube diameter (only if "Tank type" = "Bypass / pipe")
 Enter the diameter of the bypass or stilling well.
7. Setup → Tank level
 Select tank level (Partially filled oder Fully flooded)
8. Setup → Distance to upper connection
 In bypasses: Enter distance from reference point R to lower edge of the upper
connection; otherwise: Keep the factory setting
9. Setup → DC value
 Enter dielectric constant of the upper medium.
10. Setup → Empty calibration
 Enter the distance E between the reference point R and the minimum level (0%).
11. Setup → Full calibration
 Enter distance F between the minimum (0%) and maximum (100%) level.
12. Setup → Level
 Displays the measured level L
13. Setup → Interface
 Displays the interface height L
14. Setup → Distance
 Displays the distance D
15. Setup → Interface distance
 Displays the distance D
16. Setup → Signal quality
 Displays the signal quality of the level echo.
17. Setup → Mapping → Confirm distance
 Compare the displayed distance to the real distance in order to start the recording
of the mapping curve.
3) only visible for devices with "interface measurement" application package
44
3)
.
L
.
I
between the reference point R and the level L
L
between the reference point R and the interface L
I
Levelflex FMP51, FMP52, FMP54 PROFIBUS PA
.
L
.
I
