Levelflex FMP51, FMP52, FMP54 PROFIBUS PA
GSD file
GSD file version
8.2

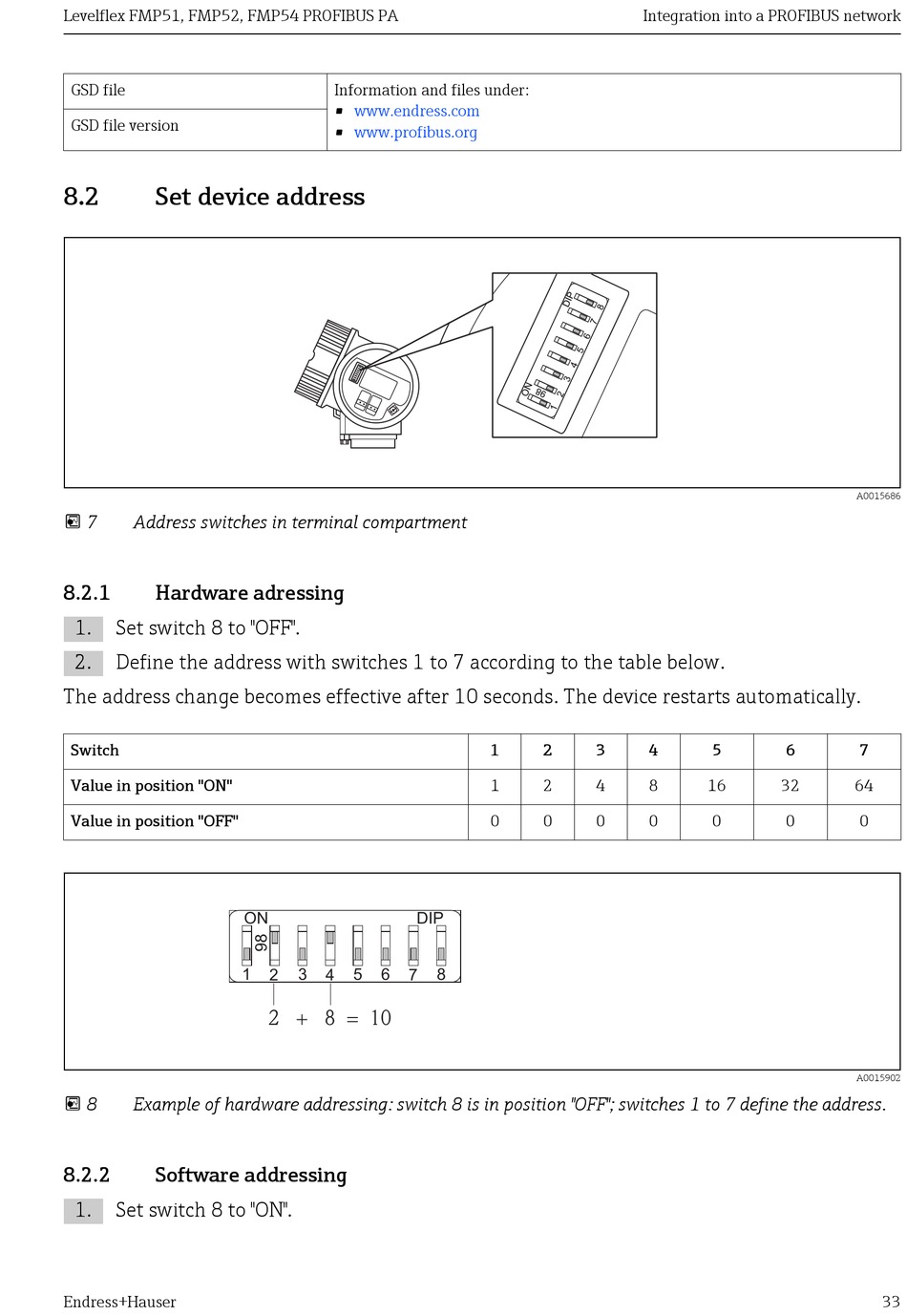

Set device address

 7 Address switches in terminal compartment
8.2.1 Hardware adressing
1. Set switch 8 to "OFF".
2. Define the address with switches 1 to 7 according to the table below.
The address change becomes effective after 10 seconds. The device restarts automatically.
Switch
Value in position "ON"
Value in position "OFF"
 8 Example of hardware addressing: switch 8 is in position "OFF"; switches 1 to 7 define the address.
8.2.2 Software addressing
1. Set switch 8 to "ON".
Endress+Hauser
Information and files under:
• www.endress.com
• www.profibus.org
ON
1 2 3 4 5 6 7
2 + 8 = 10
1 2
1 2
0 0
DIP
8
Integration into a PROFIBUS network
3 4 5
4 8 16
0 0 0
A0015686
6 7
32 64
0 0
A0015902
