Levelflex FMP51, FMP52, FMP54 PROFIBUS PA
10.5

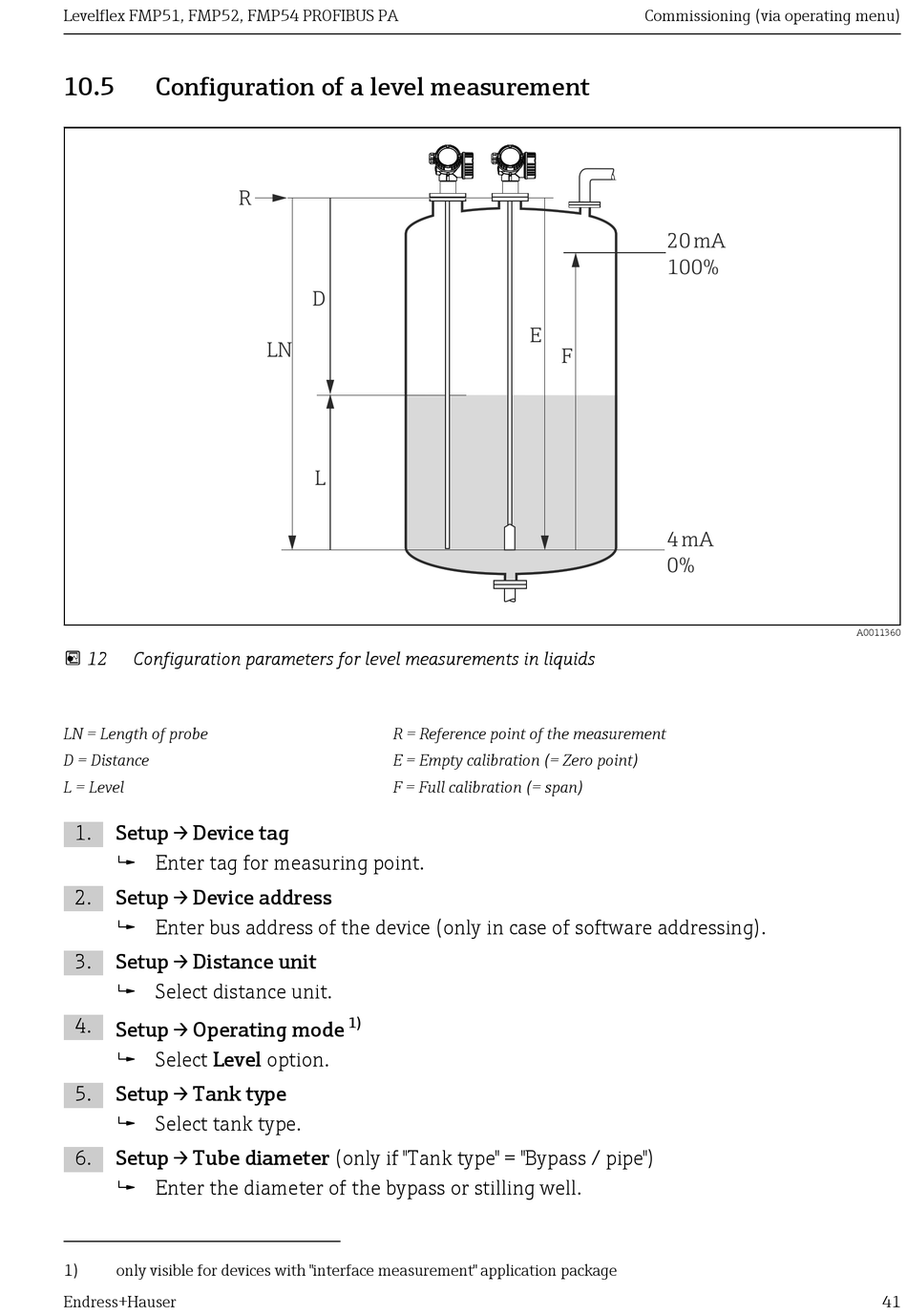

Configuration of a level measurement

 12 Configuration parameters for level measurements in liquids
LN = Length of probe
D = Distance
L = Level
1. Setup → Device tag
 Enter tag for measuring point.
2. Setup → Device address
 Enter bus address of the device (only in case of software addressing).
3. Setup → Distance unit
 Select distance unit.
4.
Setup → Operating mode
 Select Level option.
5. Setup → Tank type
 Select tank type.
6. Setup → Tube diameter (only if "Tank type" = "Bypass / pipe")
 Enter the diameter of the bypass or stilling well.
1) only visible for devices with "interface measurement" application package
Endress+Hauser
R
D
LN
L
R = Reference point of the measurement
E = Empty calibration (= Zero point)
F = Full calibration (= span)
1)
Commissioning (via operating menu)
20 mA
100%
E
F
4 mA
0%
A0011360
41
