Electrical connection
7
Electrical connection
7.1
Connection conditions
7.1.1
Terminal assignment
PROFIBUS PA / FOUNDATION Fieldbus
5
4
1
1
6

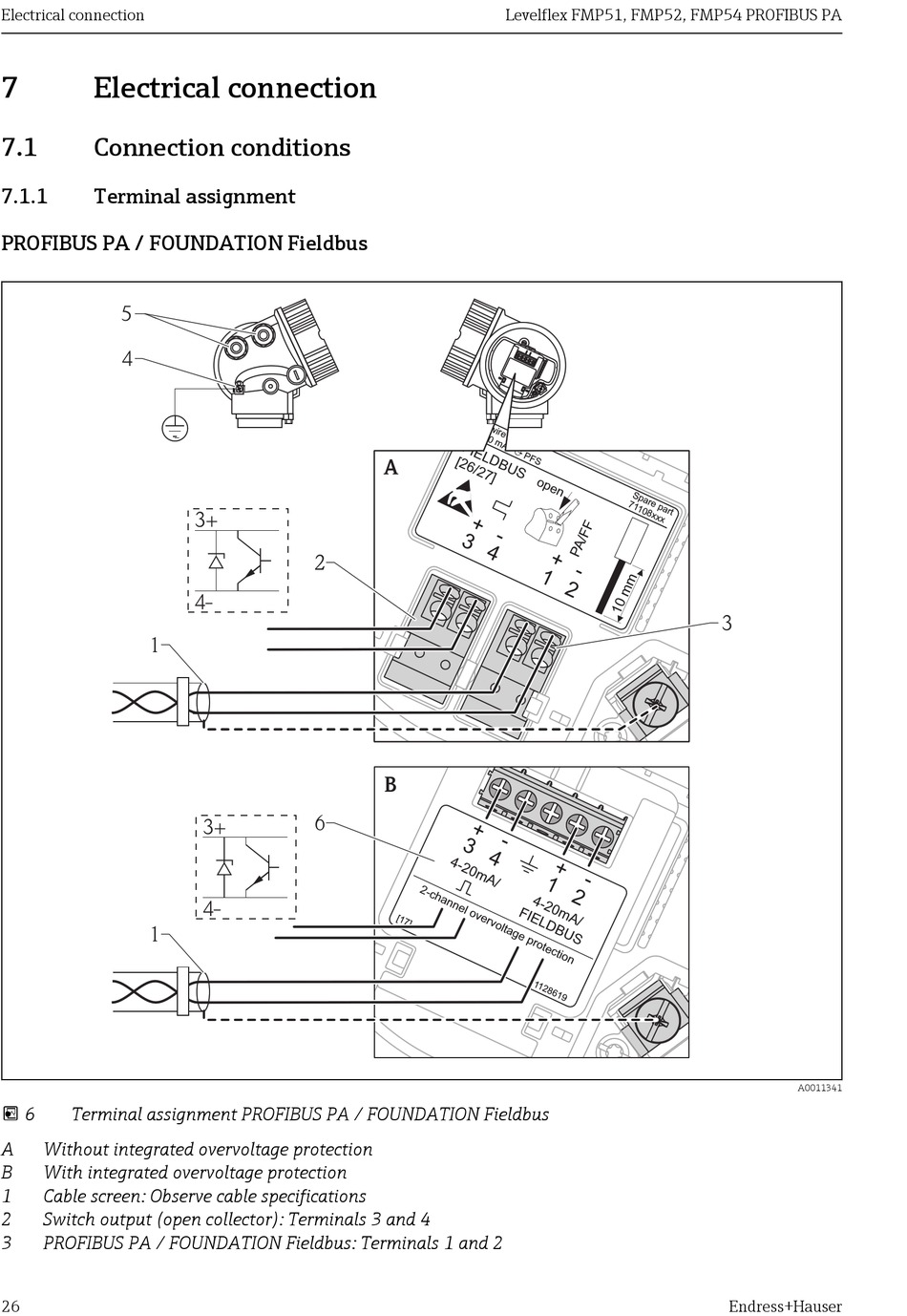

Terminal assignment PROFIBUS PA / FOUNDATION Fieldbus
A
Without integrated overvoltage protection
B
With integrated overvoltage protection
1
Cable screen: Observe cable specifications
2
Switch output (open collector): Terminals 3 and 4
3
PROFIBUS PA / FOUNDATION Fieldbus: Terminals 1 and 2
26
3+
2
4-
6
3+
4-
Levelflex FMP51, FMP52, FMP54 PROFIBUS PA
A
B
3
A0011341
Endress+Hauser
