Mounting
A
r
= 100 (4)
min
6 Nm
(4.42 lbf ft)
 5

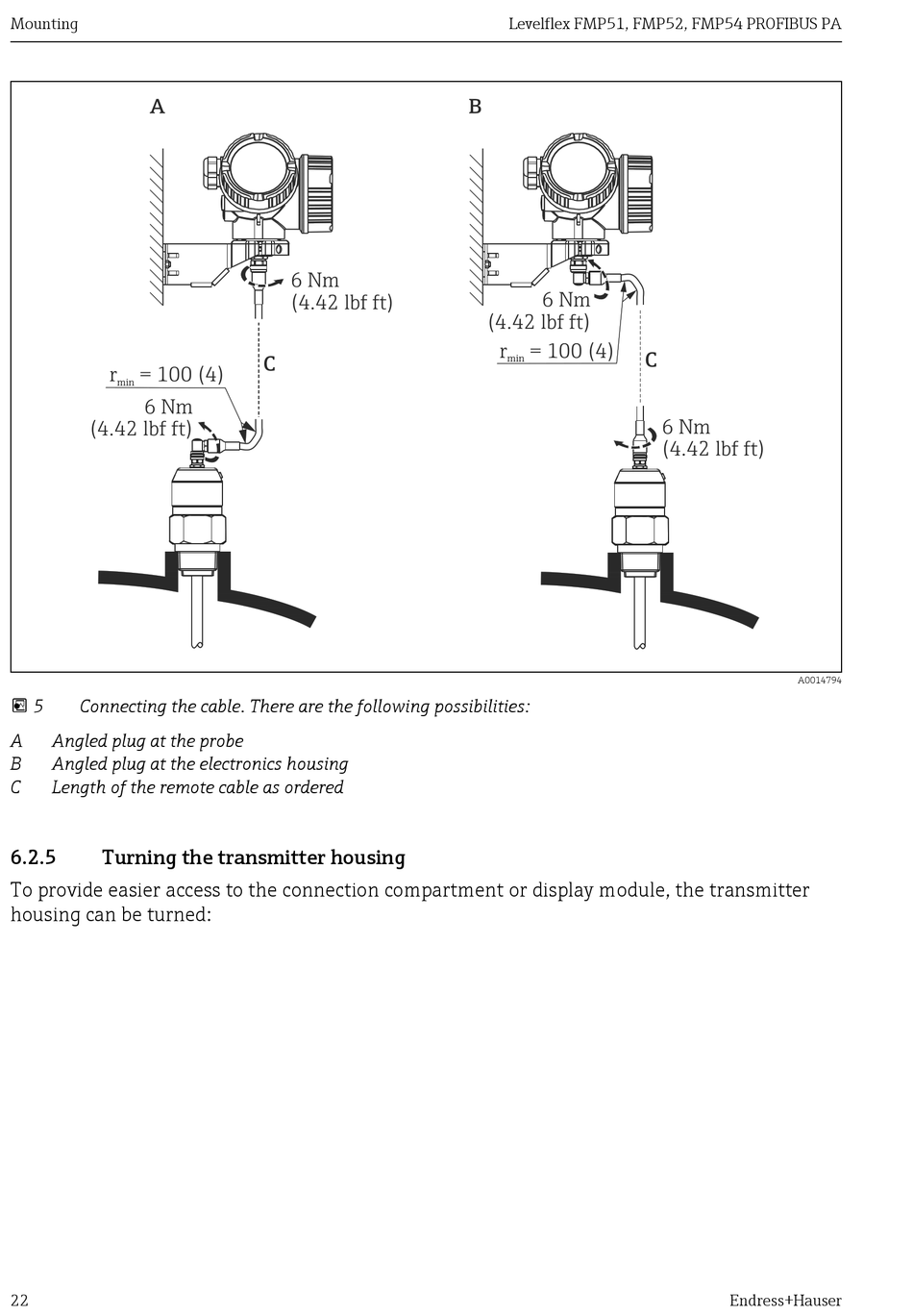

Connecting the cable. There are the following possibilities:
A
Angled plug at the probe
B
Angled plug at the electronics housing
C
Length of the remote cable as ordered
6.2.5
Turning the transmitter housing
To provide easier access to the connection compartment or display module, the transmitter
housing can be turned:
22
6 Nm
(4.42 lbf ft)
C
Levelflex FMP51, FMP52, FMP54 PROFIBUS PA
B
6 Nm
(4.42 lbf ft)
r
= 100 (4)
min
C
6 Nm
(4.42 lbf ft)
A0014794
Endress+Hauser
