Levelflex FMP51, FMP52, FMP54 PROFIBUS PA
10.6

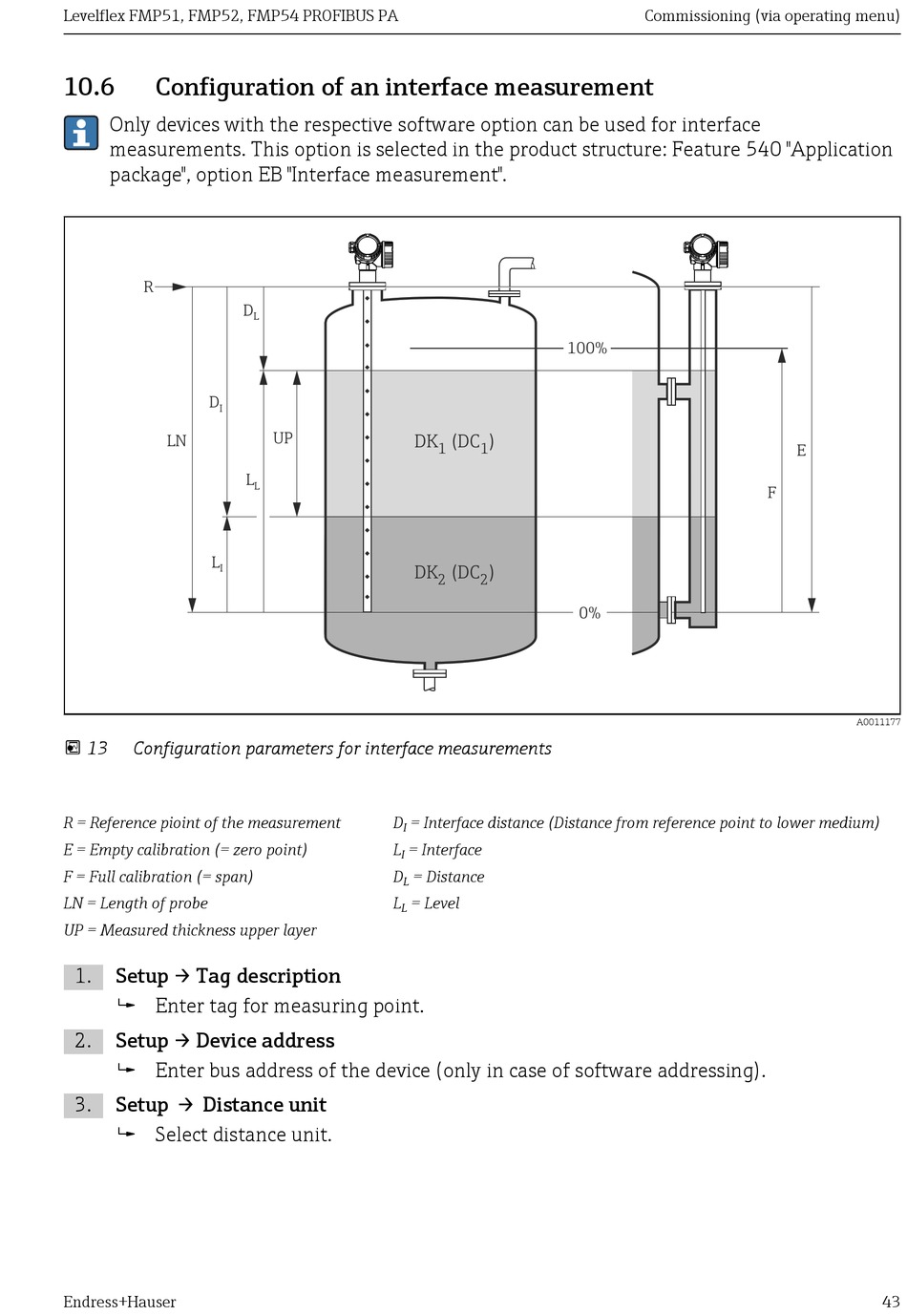

Configuration of an interface measurement

Only devices with the respective software option can be used for interface
measurements. This option is selected in the product structure: Feature 540 "Application
package", option EB "Interface measurement".
R
D
I
LN
L
I
 13
Configuration parameters for interface measurements
R = Reference pioint of the measurement
E = Empty calibration (= zero point)
F = Full calibration (= span)
LN = Length of probe
UP = Measured thickness upper layer
1.
Setup → Tag description
 Enter tag for measuring point.
2.
Setup → Device address
 Enter bus address of the device (only in case of software addressing).
3.
Setup  →  Distance unit
 Select distance unit.
Endress+Hauser
D
L
UP
L
L
D
= Interface distance (Distance from reference point to lower medium)
I
L
= Interface
I
D
= Distance
L
L
= Level
L
100%
DK
(
DC
)
1
1
DK (DC )
2
2
0%
Commissioning (via operating menu)
E
F
A0011177
43
