Overland Storage NEO 8000E Quick Start Manual

Overview

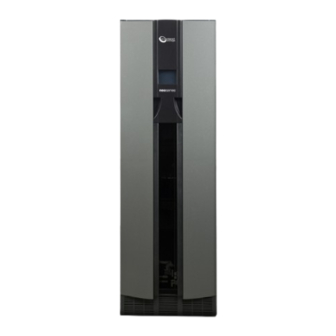

This document describes how to unpack and install a NEO
8000e enterprise library from Overland Storage.
WARNING: To reduce the risk of electric shock or damage
to equipment, always remove any power cords while
working with the unit.
AVERTISSEMENT:
pour réduire le risque de choc
électrique ou endommagement de l'équipement, retirez
toujours les cordons électriques en travaillant avec l'appareil.
CAUTION:
While working with the unit, observe standard
Electrostatic Discharge (ESD) precautions to prevent
damage to micro-circuitry or static-sensitive devices.
Register First
Before starting, it is essential that you activate your
Overland warranty. Technical and warranty support are not
available until this is done:
1. Go to the Overland Storage web site
(http://www.overlandstorage.com/).
2. Click the Service & Support tab.
3. Select My Products > Register New Product.
4. At the
Site Login, enter your e-mail address and
password (Figure 1).
NOTE: If you are not yet a member, click "New member?" and
follow the instructions given. It's free and easy!
Figure 1. Support Site Login
5. Fill in the information and click Submit.
IMPORTANT: Within three business days, you will receive
an e-mail from Overland with your warranty certificate.
Follow the instructions included to complete the process.
10400292-002 05/2013

Quick Start Guide

©2010-13 Overland Storage, Inc.

Unpack the Library

WARNING: Exercise care when unpacking and moving the
NEO 8000e Library. Due to its size and weight, it is
recommended that at least two people be involved with the
unpacking process.
AVERTISSEMENT:
soyez prudent lors du déballage et du
déménagement de la bibliothèque NEO 8000e. En raison
de sa taille et son poids, il est recommandé qu'au moins deux
personnes aident au déballage.
CAUTION:
Read and become familiar with this entire
document before starting this unpacking procedure. Steps
performed out of sequence may cause damage to the library
which voids existing warranties.
NOTE: Retain all packaging materials in a protected place in
case the library needs to be shipped to a different location.
These tools are required to unpack and install the library:
• 9/16" wrench
• 10" adjustable wrench
• Box knife
• #2 Phillips stubby or offset screwdriver
• #2 Phillips screwdriver
• Level, at least 10 inches long (25cm)
Remove the Outer Carton
1. Position the shipping container on a level surface
with adequate clearance to work around it
page 2).
NOTE: The container pallet and box is labeled "RAMP SIDE"
on the removal side.
• Allow at least 10 ft. (3.0m) of clearance on the
removal side of the container.
• Allow about 3 ft. (1.0m) of clearance around the other
three sides.
• Allow at least 8 ft. (2.5m) of vertical clearance.
NEO 8000e
®
(Figure 2 on
 Page 1 of 4
