Notifier AFP-400 Product Installation Manual

AFP-300/AFP-400 Cabinets (AA Series)
P I
RODUCT NSTALLATION
Document 50392 Rev B
Part Number 50392-B
ECN 96-463 03/06/97
Overview
Cabinet Limitations
Unpacking the Cabinet
Preparing for Installation
Standards and Codes
Doc. 50392:B 03/06/97
Technical Manuals Online! - http://www.tech-man.com
D
RAWING

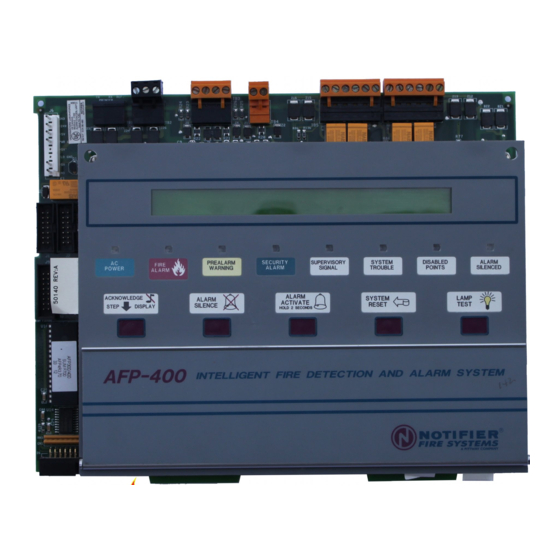

The cabinet is a backbox and door that can contain a small AFP-300/AFP-400
system. A small system supports up to twelve NACs and consists of the CPU
module and one option module. Modules mount to rails in the cabinet, eliminat-
ing the need for optional chassis assemblies. Mounting methods include surface-
mounting or semi-flush mounting on a wall (with an optional TR-500) between 16-
inch-on-center studs.
• Limited power supply capacity (one AVPS-24 expander).
• Backbox can hold 12 amp-hour batteries only.
• Maximum of one module in addition to the CPU-400.
• No voice evacuation capability.
Unpack the cabinet as follows:
Before installing the cabinet, read the following:
• Review the installation precautions listed in the AFP-300/AFP-400 Installation
Manual.
• All wiring must comply with the National and/or Local codes for fire alarm
systems.
• Count the number of conductors needed for all devices and find the appropriate
knockouts.
• Do not draw wiring into the bottom 9 inches of the cabinet, except when using
the BB-17. This prevents interference between the power supply and batteries.
In addition, installers should be familiar with the following standards:
• NEC Article 300 Wiring Methods
• NEC Article 760 Fire Protective Signaling Systems
• Applicable Local and State Building Codes
• Requirements of the Local Authority Having Jurisdiction
12 Clintonville Road.
Northford, CT 06472
