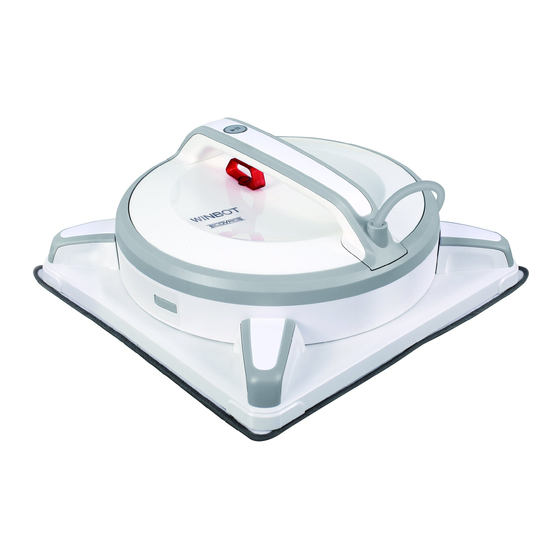

Summary of Contents for ECOVACS WINBOT9 W930

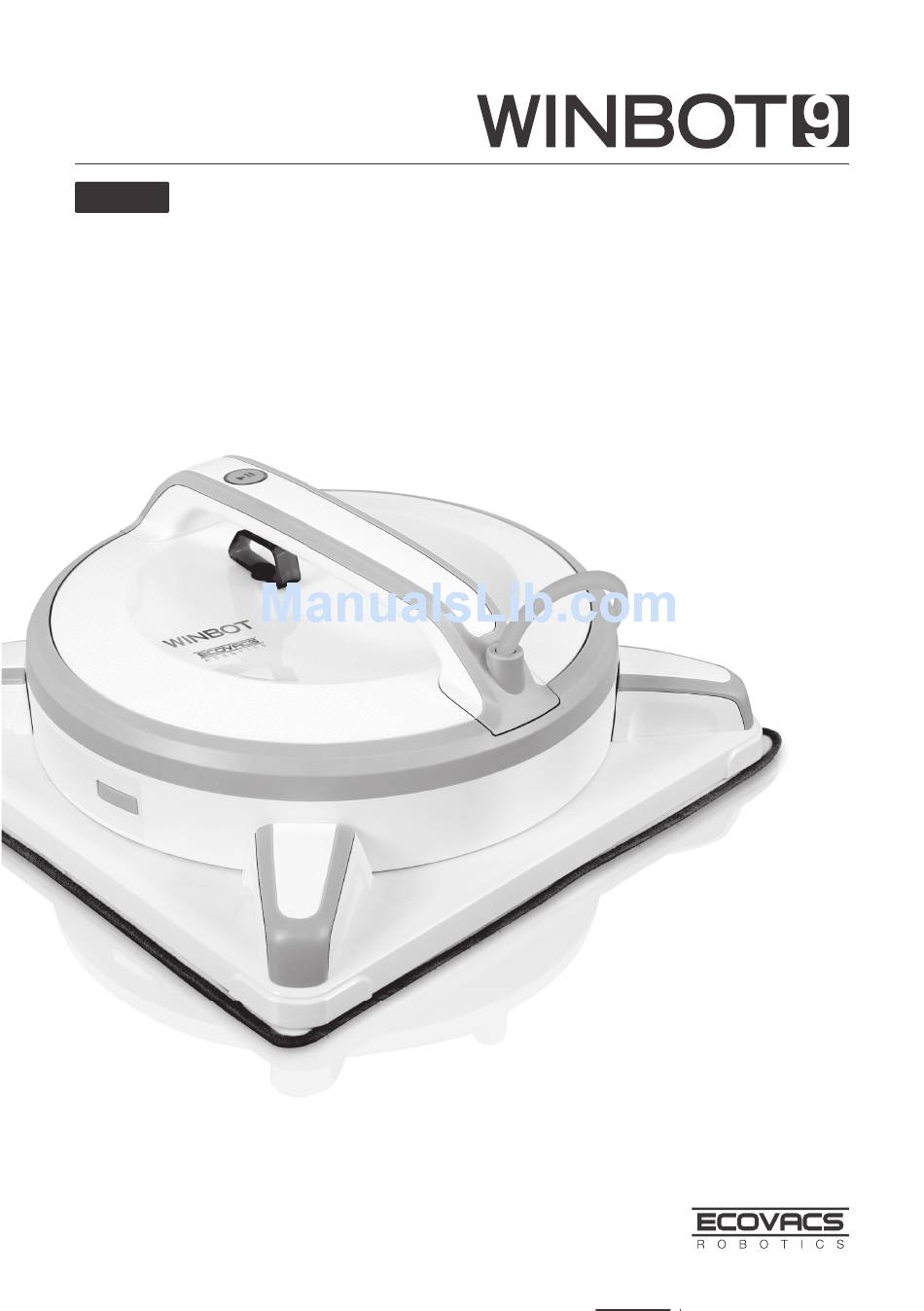

  • Page 1 Instruction Manual FR-CA...
  • Page 2 Before you go any further, please register your product on the ECOVACS ROBOTICS website at www.ecovacsrobotics.com/registration/. We also suggest you record your model number, serial number, date of purchase and attach your receipt to this page for safekeeping.

  • Page 3: Table Of Contents

    Contents 1. Important Safety Instructions...............2 2. Package Contents and Technical Specifications........4 2.1 Package Contents..................4 2.2 Specifications....................4 2.3 Product Diagram..................5 3. Operating the Robot..................6 3.1. Notes Before Cleaning ................6 3.2 Attach the Cleaning Pad ................7 3.3 Assemble the Power Adapter..............7 3.4 Install the Safety Tether................7 3.5 Place the Safety Pod .................9 3.6 Spray Cleaning Solution................9 3.7 Start......................10...

  • Page 4: Important Safety Instructions

    1. Important Safety Instructions When using an electrical appliance, basic precautions should always be followed, including the following: READ ALL INSTRUCTIONS BEFORE USING THIS APPLIANCE. SAVE THESE INSTRUCTIONS 1. This Appliance is not intended to be used by children under 8 or anyone lacking knowledge on proper use.
  • Page 5 28. When not using the Charging Dock for a long period of time, please unplug it. 29. The Appliance must be used in accordance with the directions in this Instruction Manual. ECOVACS ROBOTICS cannot be held liable or responsible for any damages or injuries caused by improper use.

  • Page 6: Package Contents And Technical Specifications

    2. Package Contents and Technical Specifications 2.1 Package Contents Instruction Manual FR-C A Manuel de l'utilisateur ES-L AM Manual de Instrucciones Safety Pod and Remote Control Robot Power Adapter Instruction Manual with Batteries Tether (3) Cleaning Pads WINBOT (1) WINBOT Finishing Cloth Cleaning Solution Extension Cord...

  • Page 7: Product Diagram

    2. Package Contents and Technical Specifications 2.3 Product Diagram Robot 1. Power Cord 6. Squeegee 11. Bottom Power Switch 2. Handle 7. Cupule 12. Edge Detection Sensors 3. Status Indicator Light and 8. Driving Treads 13. Cleaning Pad START/PAUSE Button 9.

  • Page 8: Operating The Robot

    3. Operating the Robot 3.1 Notes Before Cleaning Do not use WINBOT 9 on a framed window WINBOT 9 can be used to clean framed or with frame smaller than 5mm (0.2"). frameless glass, larger than 35cm x 60cm (13.8’’ x 23.6’’). If WINBOT 9’s Status Indicator Light If the window is fully covered with dirt, clean flashes GREEN after powering ON, the...

  • Page 9: Attach The Cleaning Pad

    3. Operating the Robot 3.2 Attach the Cleaning Pad 3.3 Assemble the Power Adapter Turn WINBOT 9 over and attach the Cleaning Pad to the Velcro smoothly. The white side of the Cleaning Pad attaches to the Velcro, and the grey microfiber side faces out.
  • Page 10 3. Operating the Robot Loop one end of the Safety Tether to End A on the Robot Power Cord and tighten. Connect End A and End B and tighten. Loop the other end of the Safety Tether around the Safety Pod’s channel and pull it tight.

  • Page 11: Place The Safety Pod

    3. Operating the Robot 3.5 Place the Safety Pod Wipe the surface of the Safety Pod’s suction cup with the provided Finishing Cloth. If WINBOT 9 is being used to clean an inside window: Press the Safety Pod FIRMLY on the top corner of the inside window.

  • Page 12: Start

    3. Operating the Robot 3.7 Start Plug in WINBOT 9 Power ON Move the Bottom Power Switch to the “ ” position. WINBOT 9 is powered ON when it beeps and the Status Indicator Light flashes BLUE. Place on the Glass Press the START/PAUSE Button on WINBOT 9’s Handle.

  • Page 13: Pause

    3. Operating the Robot Start P r e s s t h e S T A R T / P A U S E B u t t o n o n WINBOT 9 or on the Remote Control to begin cleaning.

  • Page 14: Stop

    3. Operating the Robot 3.9 Stop When WINBOT 9 completes its cleaning cycle, it returns to the place it started and beeps. Remove WINBOT 9 Power OFF Grasp WINBOT 9’s Handle. Pull the Air Move the Power Switch to the “O” position. Release Trigger and remove WINBOT 9 from the window.

  • Page 15: Maintenance

    4. Maintenance Before performing cleaning and maintenance on WINBOT 9, move the Bottom Power Switch to the “ ” position and unplug it from the receptacle. 4.1 Cleaning Pad Turn the robot over and remove the Cleaning Pad. Soak the Cleaning Pad in cool, clean water for 2 minutes.
  • Page 16 4. Maintenance Edge Detection Sensors Squeegee Turn the robot over and wipe the four Edge Turn the robot over and wipe the Squeegee Detection Sensors clean with the provided clean with the provided Finishing Cloth Finishing Cloth to maintain their effectiveness. to maintain its effectiveness.

  • Page 17: Driving Treads

    4. Maintenance 4.3 Driving Treads Move the Bottom Power Switch to the “ ” Inspect the Driving Treads by using the position. buttons on the Remote Control. Stop the Driving Treads if dirt is seen on the Treads. Move the Bottom Power Switch to the “O” position.

  • Page 18: Status Indicator Light And Sounds

    5. Status Indicator Light and Sounds Indicator Description Status Indicator Light flashes Back-Up Battery is low and is charging. WINBOT 9 will not clean GREEN until the Back-Up Battery is properly charged. WINBOT 9 is powered ON. Status Indicator Light flashes If WINBOT 9 is already on the window, please refer to section 6 BLUE Troubleshooting.

  • Page 19: Troubleshooting

    6. Troubleshooting Malfunction Possible Causes Solutions WINBOT 9 is cleaning. Pause WINBOT 9 by pressing the START/ When WINBOT 9 is PAUSE button on the robot or Remote cleaning, only the START/ Control. Other buttons on the Remote Control PAUSE Button works on the will function when WINBOT 9 is paused.
  • Page 20 6. Troubleshooting Malfunction Possible Causes Solutions A. Press the RESET Button on the Remote Control. B. Check for stubborn stains on the window. Clean the stains before using WINBOT 9. WINBOT 9 has encountered C. Check the Cupule for dirt or damage. Clean a problem.
  • Page 22 Designed and Manufactured by/Conception et Fabrication par ECOVACS ROBOTICS, Co., Ltd. Made in China/Fait en Chine Distributed by/Distribué par ECOVACS ROBOTICS, Inc. WINBOT 9-018-IM2014R02 Canton, OH, USA/Canton, OH, É.-U.
