3–Fibre Channel Configuration
Using a Fabric-Assigned Boot LUN
Using a Fabric-Assigned Boot LUN with QConvergeConsole
Plug-ins
For information about using a fabric-assigned boot LUN for QConvergeConsole
VMware vSphere Web Client Plug-in, see the section "Configure Fibre Channel
Port Boot Parameters" in the User's Guide—QConvergeConsole Plug-ins for
VMware vSphere (part number SN0054677-00).
To configure a 2700 Series Adapter boot device with QConvergeConsole
VMware vCenter Server Plug-in:
1. In the QConvergeConsole VMware vCenter Server Plug-in, click the
QConvergeConsole tab.
2. In the tree pane on the left, select a 2700 Series Adapter port.
3. Click the Boot tab.
4. On the Boot Device Selection page, select the Enable Fabric Assigned
Boot LUN check box.

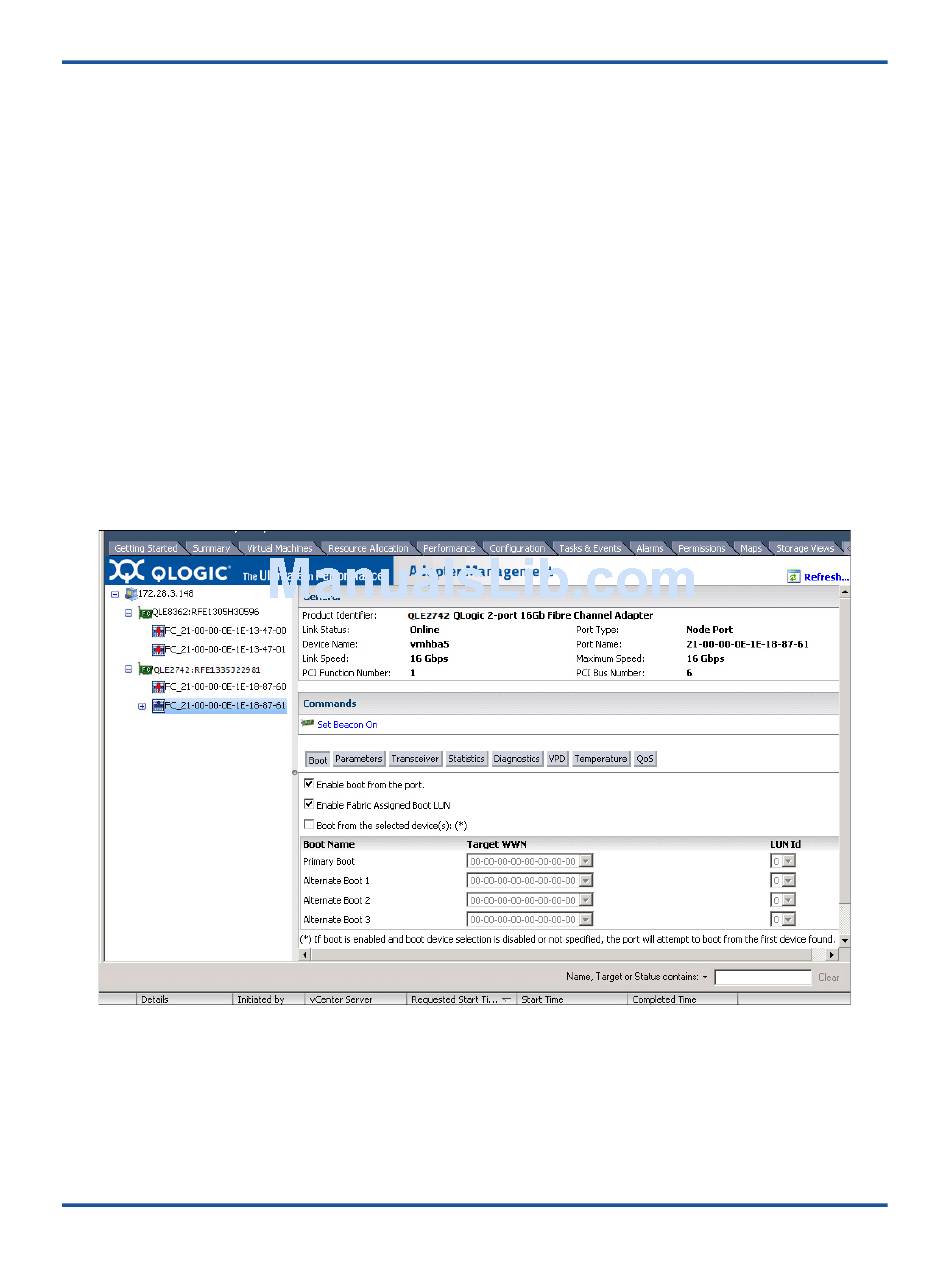

Figure 3-29. Fabric-Assigned Boot LUN in QConvergeConsole VMware vCenter
For details, refer to the "Boot Device Selection" topic in QConvergeConsole
Help.
Figure 3-29 shows an example.
Server Plug-in
