Qlogic QLE7280 Specifications

QLE7280
InfiniBand 4X DDR to PCI
Express Host Channel Adapter
Benefits
• Provides application scaling to 1000s of CPUs,
increasing cluster efficiency and overall productivity
• Accelerates application run times for faster
time-to-solution
• Increases utilization of computing infrastructure and
increases ROI of computing assets
High Performance
• Exceptionally low point-to-point latency of 1.2 μs
essential for High Performance Computing (HPC)
• For bandwidth-intensive applications, delivers
1930 MBps (unidirectional)
1, 2
Superior Scalability
• 26M messages/sec delivers high I/O transfers for
clustering applications
2, 4
• Comprehensive Linux operating system support
®
Enhanced Reliability
• Advanced management capabilities with InfiniBand
Fabric Suite (IFS) toolset
• Ideal for high volume server deployments, the Host
Channel Adapter (HCA) consumes 6.0W of power
(typical)
• 3-year hardware warranty
1 Ping-pong latency, unidirectional bandwidth, and message rate are based on the
Ohio State University MPI benchmarks.
2 Actual performance may vary depending on the system process and chip set.
3 An additional 150–160 ns is expected per switch hop.
4 On eight processes per node (ppn)

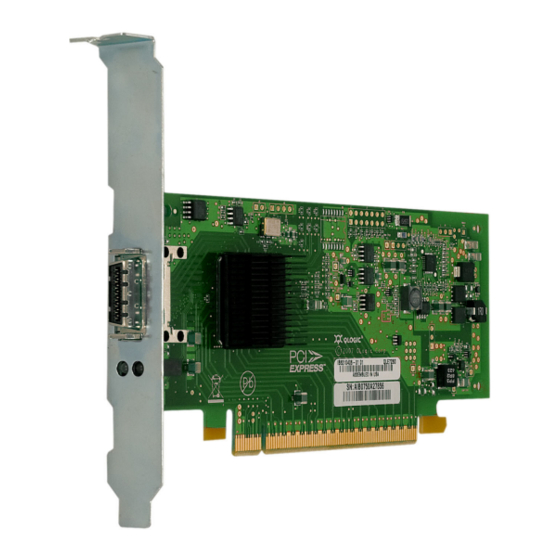

QLE7280 Host Channel Adapter.
Data Rate (DDR) HCA delivers industry-leading performance for a cluster
interconnect and allows organizations to gain maximum advantage and
return from their investment in clustered systems. As a result, organizations
relying on clustered systems for critical computing tasks will experience a
significant increase in productivity.
High Performance Computing (HPC).
high messaging rate, and increased bandwidth, provides the key building
block for HPC clustering systems.
Data Center and Enterprise.
based high performance sockets, a Linux TCP/IP stack, an OpenFabrics
(OFED) stack, and QLogic's value added Upper Layer Protocols (ULPs) over
OFED. For data center applications, the QLE7280 supports storage and
networking.
1, 2, 3
With three different stacks available, the high performance sockets and
the Linux TCP/IP stack can be used simultaneously with the OFED stack.
QLogic also provides management features such as IFS tools and subnet
management.
Interoperability. InfiniBand ecosystem partner certifications, combined with
agency and regulatory testing, ensures all products meet industry compliance
with hardware and software specifications. All HCAs are tested extensively
with third-party hardware, along with multiple software applications, to
ensure best-in-class InfiniBand interoperability and compatibility.
Investment Protection.
leader with products that address the current needs of customers, yet
provide strong investment protection to support emerging technologies and
standards. QLogic stands alone in the industry with its product portfolio
depth and experience in successfully delivering technological solutions that
address the needs of today and tomorrow.
D A T A S H E E T
The QLE7280 InfiniBand (IB) Double
The QLE7280, with its low latency,
The supporting software includes standards-
For over 15 years, QLogic has been a technological
