Flange mounting

See Flange mounting kit installation supplement (3AXD50000019100 [English]).

Cabinet installation

This section gives the basic cabinet installation instructions for the drive. For more
information, see ACS880-01 +P940 drives for cabinet installation supplement
(3AUA0000145446 [English]).

Cooling

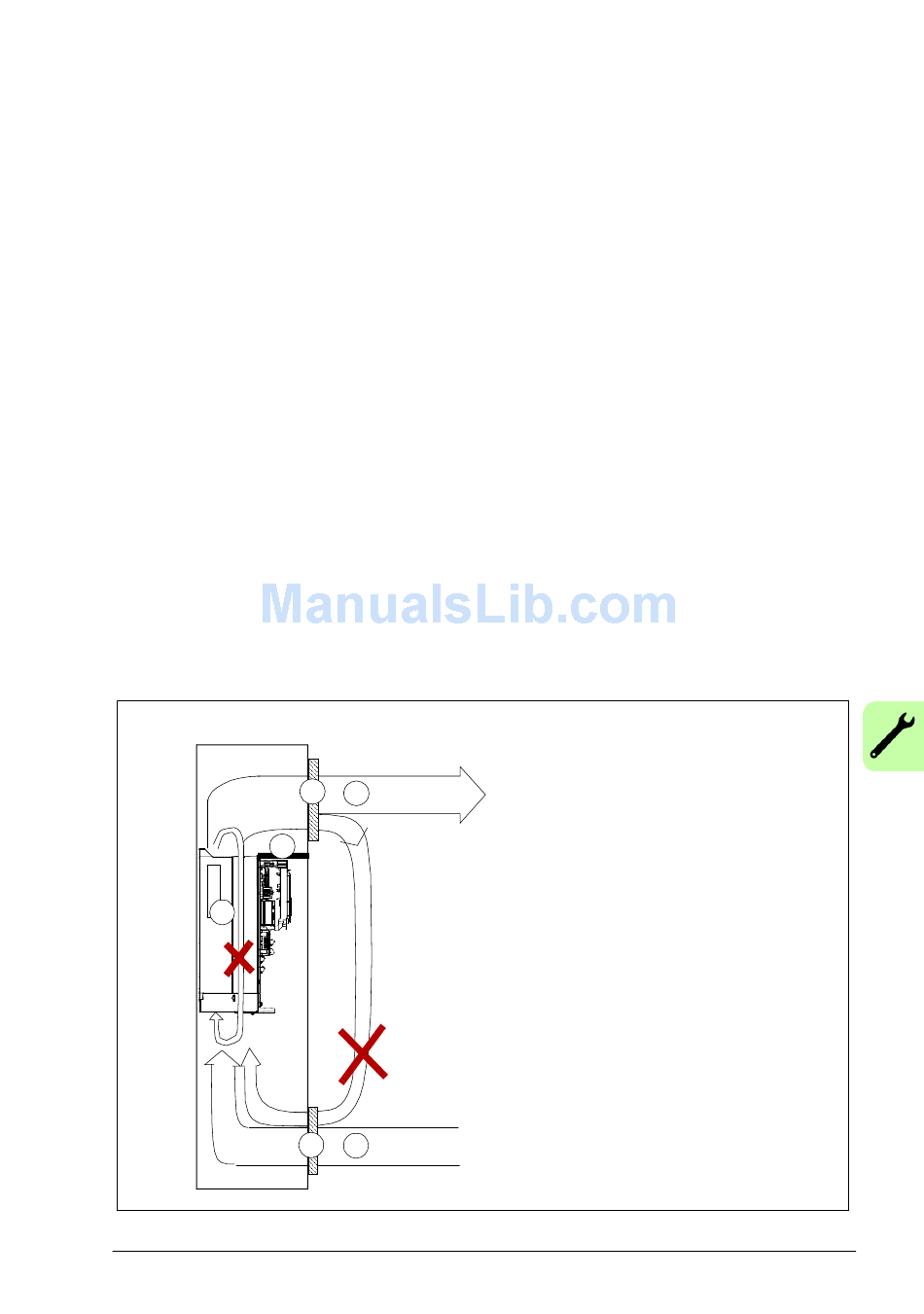

Make sure that there is sufficient cooling:
• Make sure that the temperature of the cooling air that goes into the drive does not
exceed +40 °C (+104 °F).
• Prevent cooling air recirculation inside the cabinet. You can use air baffle plates or
an extra fan at the inlet or outlet of the cabinet. if you use a fan, we recommend
an inlet fan with a filter. Such a fan causes an overpressure inside the cabinet
which helps to keep the dust out.
• Prevent cooling air recirculation outside the cabinet. Let the outlet air away from
the inlet: to the other side of the cabinet or upwards.
• Make sure that there is sufficient cooling in the room in which the cabinet is
.
placed
3
4
6
2
5 1
Mechanical installation 57
1 Main air flow in
2 Main air flow out
3 Air baffle plate
4 Drive
5 Air inlet filter
6 Air outlet filter
