I Continuous rms output current allowing 10% overload for 1 minute every 5
Ld
minutes
I Continuous rms output current allowing 50% overload for 1 minute every 5
Hd
minutes
* Continuous rms output current allowing 40% overload for 1 minute every 5
minutes
** Continuous rms output current allowing 25% overload for 1 minute every 5
minutes
* Contact ABB

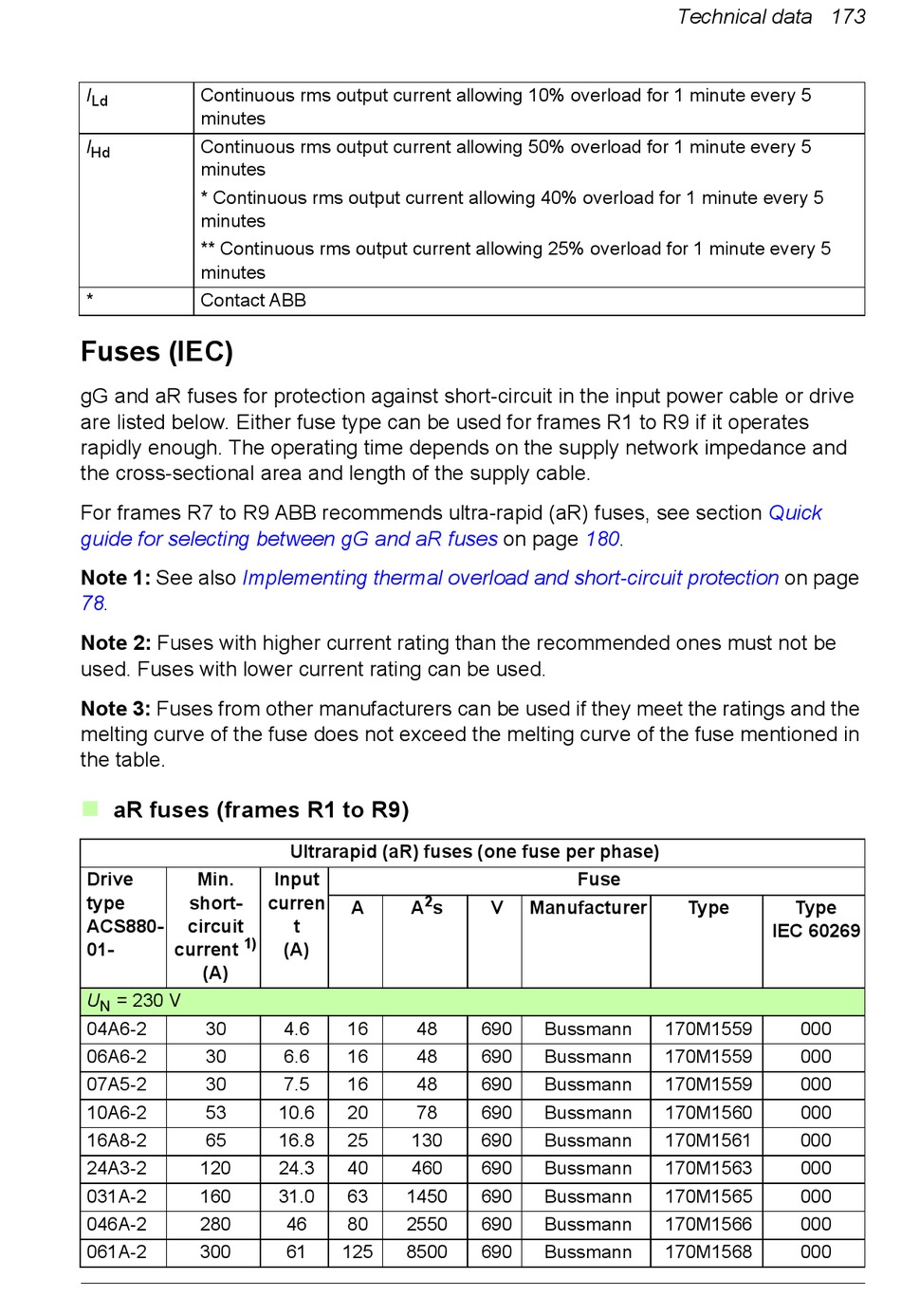

Fuses (IEC)

gG and aR fuses for protection against short-circuit in the input power cable or drive
are listed below. Either fuse type can be used for frames R1 to R9 if it operates
rapidly enough. The operating time depends on the supply network impedance and
the cross-sectional area and length of the supply cable.
For frames R7 to R9 ABB recommends ultra-rapid (aR) fuses, see section
guide for selecting between gG and aR fuses
Note 1: See also Implementing thermal overload and short-circuit protection
78.
Note 2: Fuses with higher current rating than the recommended ones must not be
used. Fuses with lower current rating can be used.
Note 3: Fuses from other manufacturers can be used if they meet the ratings and the
melting curve of the fuse does not exceed the melting curve of the fuse mentioned in
the table.


aR fuses (frames R1 to R9)

Drive Min.
type short-
ACS880- circuit
1)
01- current
(A)
U = 230 V
N
04A6-2 30
06A6-2 30
07A5-2 30
10A6-2 53
16A8-2 65
24A3-2 120
031A-2 160
046A-2 280
061A-2 300
Ultrarapid (aR) fuses (one fuse per phase)
Input
curren
2
A A s
t
(A)
4.6 16 48
6.6 16 48
7.5 16 48
10.6 20 78
16.8 25 130
24.3 40 460
31.0 63 1450
46 80 2550
61 125 8500
on page 180.
Fuse
V Manufacturer
690 Bussmann
690 Bussmann
690 Bussmann
690 Bussmann
690 Bussmann
690 Bussmann
690 Bussmann
690 Bussmann
690 Bussmann
Technical data 173
Quick
on page
Type Type
IEC 60269
170M1559 000
170M1559 000
170M1559 000
170M1560 000
170M1561 000
170M1563 000
170M1565 000
170M1566 000
170M1568 000
