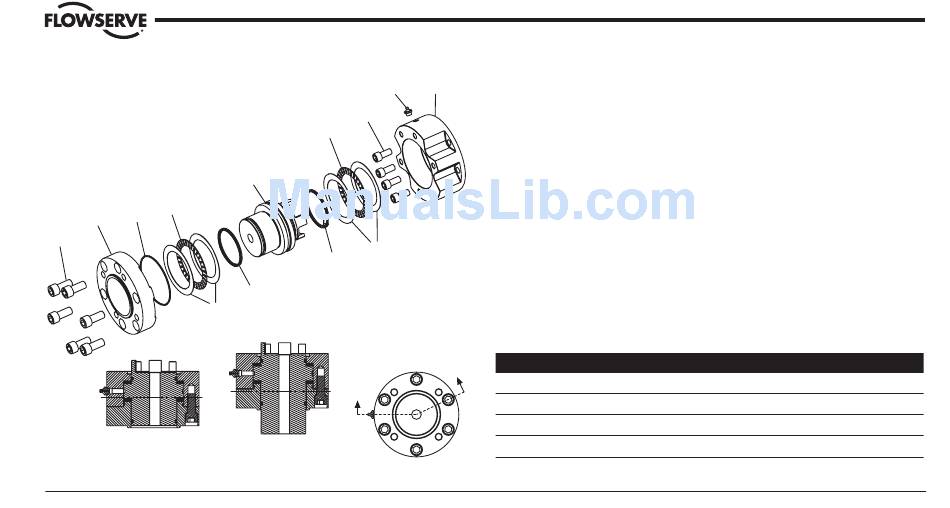

Exploded view of thrust base (MX-85 only)
10-12
10-15
10-2
10-17
10-13
Section A-A
View shown
with standard nut
Accutronix MX Quick Mounting Instructions • LMENIM2312
10-11
10-10
10-12
10-3
10-13
10-14
10-14
A
Section A-A
View shown
with extended nut
Reassembly – Unit MX-85
10-1
Refer to the figure at left.
1. Clean the stem nut, washers, and bearing(s) thoroughly.
2. Slide the second set of thrust washers and bearing in place if removed.
3. Install stem nut.
4. Install first set of thrust washers and bearing.
NOTE: Order of assembly for thrust washers and bearing must be as
follows: washer, thrust bearing, washer.
Thrust baseplate installation
Mount baseplate to thrust base housing and install the six socket head cap
screws to the proper torque per the table below.
Mechanical Installation of MX
Screw Size
A
M8 or 5 / inch
16
M10 or 3 / inch
8
M12 or 1 / inch
2
M16 or 5 / inch
8
M20 or 3 / inch
4
Flow Control
Limitorque Actuation Systems
Torque (ft-lb)
12-14
25-30
40-50
90-100
180-200
