Page 1: User Manual
Kramer Electronics, Ltd. Preliminary USER MANUAL Model: VM-2HDCPxl 1:2 DVI Distributor... -
Page 2: Table Of Contents
Connecting a VM-2HDCPxl 1:2 DVI Distributor Acquiring the EDID Technical Specifications Figures Figure 1: VM-2HDCPxl 1:2 DVI Distributor Figure 2: Connecting a VM-2HDCPxl 1:2 DVI Distributor Tables Table 1: VM-2HDCPxl 1:2 DVI Distributor Features Table 2: Technical Specifications of the VM-2HDCPxl 1:2 DVI Distributor... -
Page 3: Introduction
GROUP 7: Scan Converters and Scalers; GROUP 8: Cables and Connectors; GROUP 9: Room Connectivity; GROUP 10: Accessories and Rack Adapters; GROUP 11: Sierra Products 2 Download up-to-date Kramer user manuals from our Web site at http://www.kramerelectronics.com 3 The complete list of Kramer cables is on our Web site at http://www.kramerelectronics.com... -
Page 4: Quick Start
Getting Started Quick Start This quick start chart summarizes the basic setup and operation steps. KRAMER: SIMPLE CREATIVE TECHNOLOGY... -
Page 5: Overview
Protection) compatible 1:2 distribution amplifier for DVI-D (Digital) signals. Since high-resolution DVI signals are very sensitive to cable quality and to PCB layout, the VM-2HDCPxl uses a uniquely designed PCB which includes all buffering, conditioning and amplifying circuitry to provide two high-level output signals. -
Page 6: Defining Edid
) is a data-structure, provided by a display, to describe its capabilities to the source. The EDID enables the VM-2HDCPxl to “know” what kind of monitor is connected to the output. The EDID includes the manufacturer’s name, the product type, the timing data supported by the display, the display size, luminance data and (for digital displays only) the pixel mapping data. -
Page 7: Your Vm-2Hdcpxl 1:2 Dvi Distributor

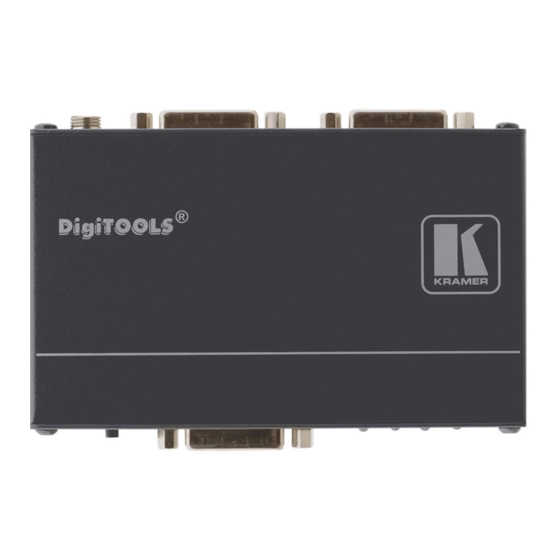

Your VM-2HDCPxl 1:2 DVI Distributor Figure 1 Table 1 define the VM-2HDCPxl: Figure 1: VM-2HDCPxl 1:2 DVI Distributor Table 1: VM-2HDCPxl 1:2 DVI Distributor Features Feature Function 5V DC +5V DC connector for powering the unit OUTPUT 2 DVI Connector... -
Page 8: Connecting A Vm-2Hdcpxl 1:2 Dvi Distributor
Connecting a VM-2HDCPxl 1:2 DVI Distributor Connecting a VM-2HDCPxl 1:2 DVI Distributor To connect the VM-2HDCPxl as illustrated in the example in Figure 2, do the following: 1. Connect a computer graphics source to the INPUT connector. 2. Connect the OUTPUT connectors... -
Page 9: Acquiring The Edid
2 The VM-2HDCPxl reads the EDID, which is stored in the non-volatile memory 3 The EDID acquired is a weighted average of all the connected outputs. For example, if several displays with different... -
Page 10: Technical Specifications
0.3kg (0.67lbs) approx. ACCESSORIES: Power supply, mounting bracket OPTIONS: RK-3T 19" rack adapter, Kramer DVI cables 1 Specifications are subject to change without notice 2 The complete list of Kramer cables is on our Web site at http://www.kramerelectronics.com KRAMER: SIMPLE CREATIVE TECHNOLOGY... - Page 11 EXCLUSION OF DAMAGES The liability of Kramer for any effective products is limited to the repair or replacement of the product at our option. Kramer shall not be liable for: 1. Damage to other property caused by defects in this product, damages based upon inconvenience, loss of use of the product, loss of time, commercial loss;...
- Page 12 For the latest information on our products and a list of Kramer distributors, visit our Web site: www.kramerelectronics.com, where updates to this user manual may be found. We welcome your questions, comments and feedback. Safety Warning: Disconnect the unit from the power supply before opening/servicing.
