Summary of Contents for Kramer VM-22HD
-
Page 1: User Manual
Kramer Electronics, Ltd. USER MANUAL Model: VM-22HD 2 x 1:2 HD/SD-SDI DA... -
Page 2: Table Of Contents
Figure 2: Connecting the VM-22HD in Single Link Mode Figure 3: Connecting the VM-22HD in Dual Link Mode Tables Table 1: VM-22HD 2 x 1:2 HD/SD-SDI DA Functions Table 2: VM-22HD 2 x 1:2 HD/SD-SDI DA Technical Specifications ... -
Page 3: Introduction
GROUP 7: Scan Converters and Scalers; GROUP 8: Cables and Connectors; GROUP 9: Room Connectivity; GROUP 10: Accessories and Rack Adapters; GROUP 11: Sierra Products 2 Download up-to-date Kramer user manuals from our Web site at http://www.kramerelectronics.com 3 The complete list of Kramer cables is on our Web site at http://www.kramerelectronics.com... -
Page 4: Quick Start
Getting Started Quick Start This quick start chart summarizes the basic setup and operation steps. KRAMER: SIMPLE CREATIVE TECHNOLOGY... -
Page 5: Overview
Overview Overview The VM-22HD 2 x 1:2 HD/SD-SDI DA is a high-performance 2 x 1:2 distributor for all SDI video signals. In particular, the VM-22HD: • Transmits up to 200m • Accepts two inputs and distributes each signal to two pairs of identical outputs using BNC connectors •... -
Page 6: Your Vm-22Hd 2 X 1:2 Hd/Sd-Sdi Da

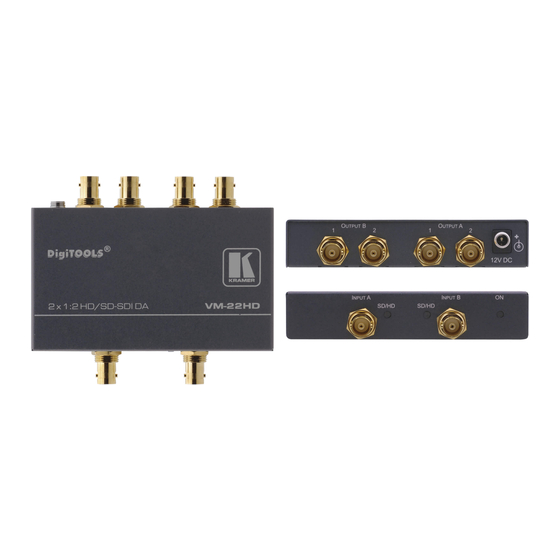

Your VM-22HD 2 x 1:2 HD/SD-SDI DA Figure 1 Table 1 define the unit. Figure 1: VM-22HD 2 x 1:2 HD/SD-SDI DA Table 1: VM-22HD 2 x 1:2 HD/SD-SDI DA Functions Feature Function 12V DC Connector +12V DC for powering the unit... -
Page 7: Connecting The Vm-22Hd 2 X 1:2 Hd/Sd-Sdi Da
Figure 2: Connecting the VM-22HD in Single Link Mode 1 Switch OFF the power on each device before connecting it to your VM-22HD. After connecting your VM-22HD, switch on its power and then switch on the power on each device... -
Page 8: Connecting The Vm-22Hd In The Dual Link Mode
Figure 3: Connecting the VM-22HD in Dual Link Mode 1 Switch OFF the power on each device before connecting it to your VM-22HD. After connecting your VM-22HD, switch on its power and then switch on the power on each device... -
Page 9: Technical Specifications
Technical Specifications Technical Specifications The VM-22HD technical specifications are shown in Table Table 2: VM-22HD 2 x 1:2 HD/SD-SDI DA Technical Specifications INPUTS: 2 SMPTE-259M, 292M, 344M, 372M serial video inputs, 75Ω on BNC connectors OUTPUTS: 4 equalized and reclocked SMPTE-259M, 292M, 344M, 372M serial video outputs, 75Ω... - Page 10 EXCLUSION OF DAMAGES The liability of Kramer for any effective products is limited to the repair or replacement of the product at our option. Kramer shall not be liable for: 1. Damage to other property caused by defects in this product, damages based upon inconvenience, loss of use of the product, loss of time, commercial loss;...
- Page 11 For the latest information on our products and a list of Kramer distributors, visit our Web site: www.kramerelectronics.com where updates to this user manual may be found. We welcome your questions, comments and feedback. Safety Warning: Disconnect the unit from the power supply before opening/servicing.
