Page 1: User Manual
K R A ME R E LE CT R O N IC S L T D . USER MANUAL MODEL: VM-2HDxl 3G HD/SD – SDI DA P/N: 2900-000318 Rev 3... -
Page 3: Table Of Contents
Contents Introduction Getting Started Achieving the Best Performance Overview Defining the VM-2HDxl Connecting the VM-2HDxl Technical Specifications Figures F igure 1: VM-2HDxl 3G HD/SD – SDI DA F igure 2: Connecting to the VM-2HDxl VM-2HDxl – Contents... -
Page 4: Introduction
Scan Converters and Scalers; GROUP 8: Cables and Connectors; GROUP 9: Room Connectivity; GROUP 10: Accessories and Rack Adapters and GROUP 11: Sierra Video Products. Congratulations on purchasing your Kramer VM-2HDxl 3G HD/SD – SDI DA, which is ideal for the following typical applications: •... -
Page 5: Getting Started
• Avoid interference from neighboring electrical appliances that may adversely influence signal quality • Position your Kramer VM−2HDxl away from moisture, excessive sunlight and dust Caution: No operator serviceable parts inside the unit Use only the Kramer Electronics input power wall... -
Page 6: Overview
• Cable equalization up to 300m 300m for SD signals; 200m for 1.5GHz HD signals; 100m for 3GHz HD signals (measured with Kramer BC-1X 1 Coax RG-6 Super High-Resolution Cable). • One input and two identical outputs on BNC connectors •... -
Page 7: F Igure 1: Vm-2Hdxl 3G Hd/Sd - Sdi Da

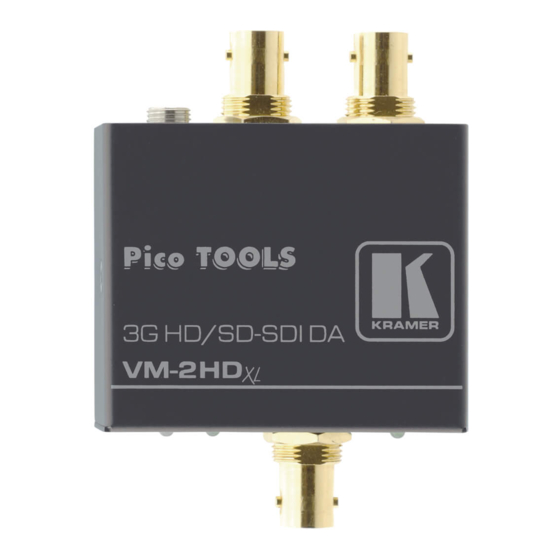

Figure 1: VM-2HDxl 3G HD/SD – SDI DA Feature Function 12V DC +12V DC connector for powering the unit OUT 2 BNC connector Connects to the SDI acceptor 2 OUT 1 BNC connector Connects to the SDI acceptor 1 HD LED... -
Page 8: Connecting The Vm-2Hdxl
Connecting the VM-2HDxl Always switch off the power to each device before connecting it to your VM-2HDxl. After connecting your VM-2HDxl, connect its power and then switch on the power to each device. To connect the VM-2HDxl, as the example in... -
Page 9: Technical Specifications
6.22cm x 5.24cm x 2.41 cm (2.45" x 2.06" x 0.95") W, D, H. WEIGHT: 0.14kg (0.31lbs) approx. ACCESSORIES: Power supply, mounting bracket OPTIONS: RK-4PT 19” rack adapter, BC-1X cable Specifications are subject to change without notice at http://www.kramerelectronics.com VM-2HDxl - Technical Specifications... - Page 11 For the latest information on our products and a list of Kramer distributors, visit our Web site where updates to this user manual may be found. We welcome your questions, comments, and feedback. Web site: www.kramerelectronics.com E-mail: info@kramerel.com SAFETY WARNING...
