5.3.2

Alarm program 2 (factory setting)

18
Siemens AB
Security Products
All the alarm programs are described in detail in the programming software manual. An overview of
the alarm programs is included in the appendix.
When processing alarms using alarm program 2, the following functions are
available in addition to basic unit functionality:
A detection group can be connected for each camera.
The 32 alarm inputs are programmed for signal connection in reaction to
external contact switching.
Alarm program 2 displays alarm images on monitors 1, 2 and 4. Monitor 3 is
reserved for basic functions.
In the event of an alarm, alarm image 1 is displayed on monitor 1. A subsequent
alarm image is displayed on monitor 2 (see below, schematic representation of
the stepped switching display mode)

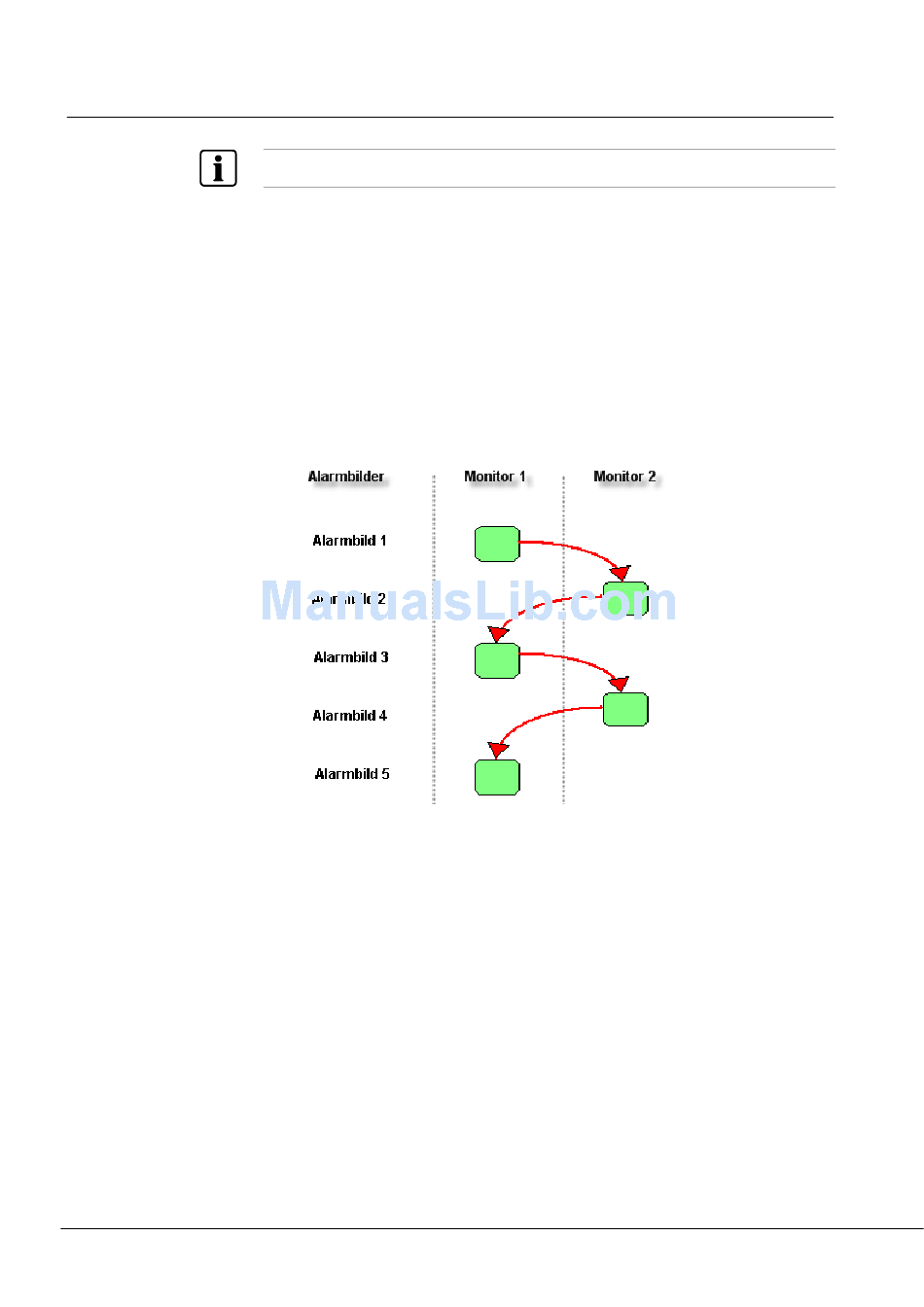

Fig. 3
Schematic representation of the serial display mode (stepped switching)
The most recent alarm images always appear on monitors 1 and 2. The most
recent alarm image successively replaces the oldest alarm image. The most
recent alarm image is therefore displayed successively on monitors 1 and 2.
Each alarm requires manual acknowledgement. The most recent alarms are
acknowledged first.
All the other alarms that have yet to be acknowledged are displayed as an alarm
image sequence on monitor 4 to allow gap-free video recording.
