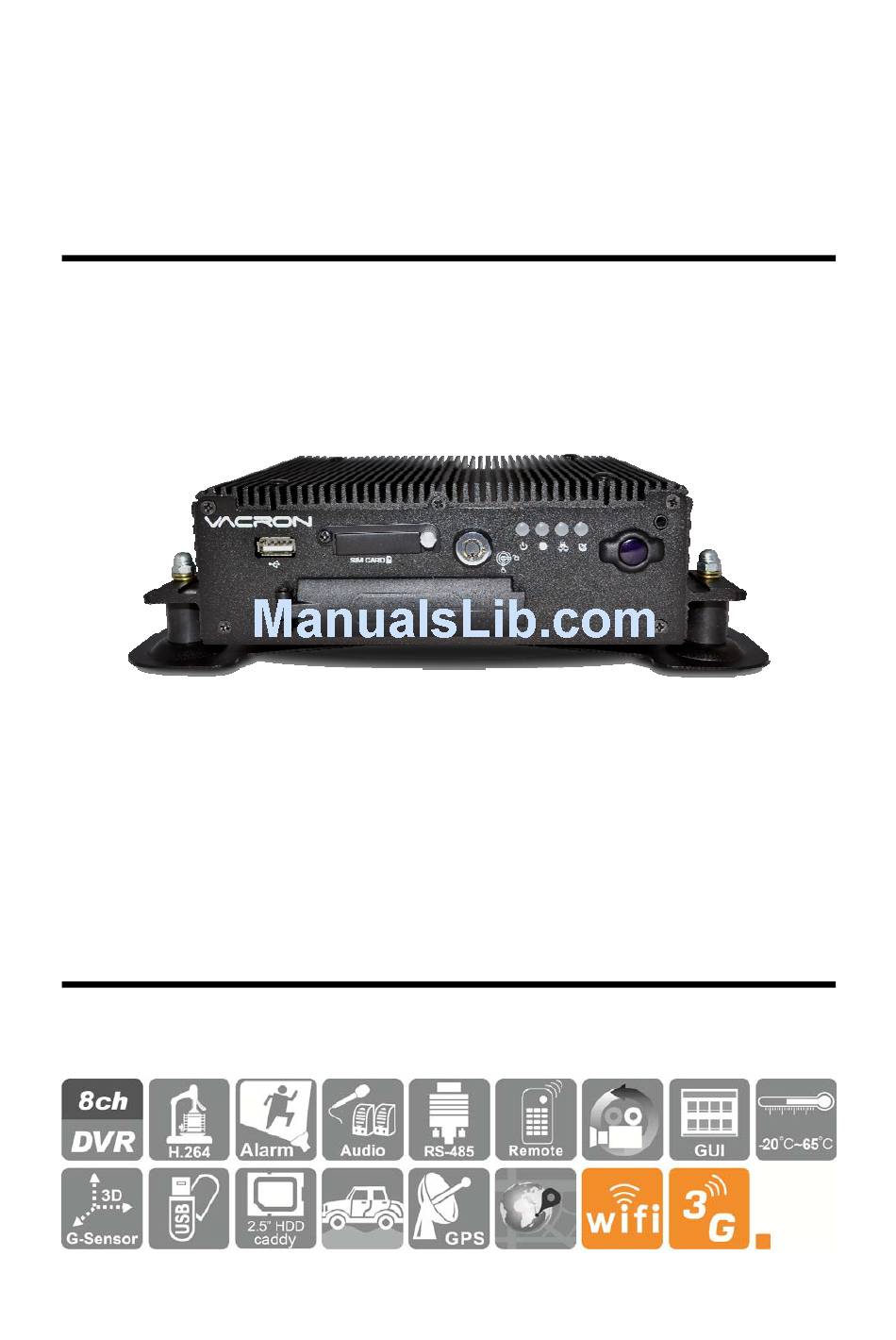

- Page 1 4/8 CH Vehicle Mobile DVR 2013 OCT V1.0 optional...
-
Page 2: Safety Precautions
Safety Precautions Take and review some testing video initially to make sure the images were recorded correctly. Please note that manufacturer, its subsidiaries and affiliates, and its distributors are not liable for consequential damages arising from any malfunction of main device accessory, including memory device that results in the failure of an image to be recorded or to be recorded in a way that is machine readable. -
Page 3: Table Of Contents
Index Features ......................... 1 Specification ......................2 Record / Stop-Record ..................7 System operating instruction ............... 8 Through IR Remote controller instruction ..........8 Main menu page switch .................. 9 System Setup instruction ................10 LIVE Display......................17 ... -
Page 4: Features
A. Features ‧ Provide Video output for playing-back mode in mainframe. ‧ Recording format: D1 and CIF ‧ User friendly player software, easy to operation. ‧ Overall quick search event log. ‧ The full recording time and date can be showing in the monitor directly. -
Page 5: Specification
B. Specification Type 8CH Vehicle DVR Video Format NTSC/PAL Operating System Embedded Linux Video Input 8CH Input Max. Cam Power 12V/250mA/Each supplier Video Output 1CH Output Audio Input 1CH Input Audio Output 1CH Output Alarm Input 4 Alarm Input Control Mode Multi-Language English / Chinese / Others NTSC... - Page 6 NTSC 720 x 480 Display 720 x 576 360x240@CIF/ Resolution NTSC 720x480@D1/ Recording 360x288@CIF 720x576@D1/ Compression H.264(1~ 5) Algorithm 2.5”SATA HDD Caddy Max. 1Tb Backup Device USB Storage or through Carbox Player Search Function: Time / Event Playback Mode Full Screen LED Indicator 4 LED (LAN、REC、GPS、Power) Signal Loss...
- Page 7 Watchdog Extended Record Mode Power Supply DC 8V~36V Dimension 250mm x 174.8mm x 69.5mm Operation -20℃ ~ +65℃ Temperature Weight 1.85kg(with bracket and HDD) *Version updating is not going to inform, please check the on-going updating information...
- Page 8 C. Product Appearance FRONT PANEL SIM lock Power light Record light Network light Sim card slot USB connection GPS light HD slot lock HD slot Infrared receiver...
- Page 9 REAR PANEL RS-485 Connection Hollow connection 1 set of video/ audio USB Connection output 4 set of alarm input Audio output Video output Hollow connection Video recorder Power Connection connectino 1-8 CH Audio input 3G antenna connection G-Mouse Network Connection WIFI antenna connection connection...
-
Page 10: Record / Stop-Record
D. Record / Stop-Record 1. Power on / Record Turn on the power, and it will take approximately 40 seconds to boot up. During the recorder booting up, the HDD indicator LED will start flashing as the recording is in progress. -
Page 11: System Operating Instruction
E. System operating instruction Vehicle DVR can be operated through two methods: IR remote controller and PC software application. Through IR Remote controller instruction 1. As following is the key mapping table for IR Remote controller： Arrow Select the options in the menu list. Open the main menu or back to Menu previous page. -
Page 12: Main Menu
Four parts switch divisions display Eight parts Separate the screen to eight switch divisions display Mute Do not record the audio data Play Start play under Manual recording under watching mode Stop and back to up layer under Stop play mode Pause Pause under review mode Speed... -
Page 13: System Setup Instruction
◆ IR Remote controller Instruction (1) Select Item: [up/down/left/right] (2) Change setting for selected item: [up/down/left/right] (3) Change setting for Bar item：[Enter] (4) Full Screen display for each CH: [CH1~CH4] (5) Open OSD menu, back to previous page：[menu] (6) Quad display：[Quad] (7) Enter playback mode：[play] (8) Stop Play/exit playback mode：[Stop] Suspend recording:[Pause]... - Page 14 2. Set Parking Mode Controller explanation increase frame decrease frame Setting Encode frame rate: 5, 10, 15, 20, 25, 30, (D1 Maximum 15, CIF Maximum 30 and cannot over than original setting) 3. Set Video Parameter ...
- Page 15 4. Set Time IR Remote controller operating instruction (1) Up key→ Plus one, Down key→ Reduce one. (2) Left key→ Left one space, Right key→ Right one space. 5. Set Plate Number IR Remote controller operating instruction (1) Up key→ Numbers plus one or alphabetical order to increase.
- Page 16 (1) Delete All Record Data Use right key or left key to select the selection then click “enter” to confirm. ★ Caution! All data will be deleted when you click “Yes”. 7. Default Live View Channel Display (1) Select the default live view CH after startup: Item selected will be default live view display mode after DVR booting completed.
- Page 17 9. Check Firmware Version (1) To check current firmware version, please select version and press enter key. ★ Check the current firmware version first before firmware upgraded. 10. Check MDVR ID Information (Only available when DVR with specific 3G module) (1) If you need to check current MDVR ID information, please click MDVR ID and press enter key on remote controller.
- Page 18 remote controller to select channel, then press the “confirm” key set the channel. ★ Check the explanation of back panel, in order to facilitate triggering alarm information setting. ★ Alarm system works only after finishing both hardware and software setting. 12.
- Page 19 (1) Before execute, please save the firmware files to the SD card, and insert the SD card into DVR (2) DVR can not interrupt power source when updating the firmware. After firmware update, the DVR system will reboot automatically. 15. Version (1) You can check the firmware version here to make sure if you need to update the firmware...
-
Page 20: Live Display
LIVE Display Statue definition Recording GPS signal on line Microphone on Manuel force record G-sensor on (1) Select CH1~CH8 to full display mode; If you want to return to quad display, please press quad key; Press 8 division key to back to 8 divisions screen mode. (2) On Live view mode, click “menu’... -
Page 21: Playback Mode
Playback mode (1) Select CH1~CH8 as full display for each CH; If you want to return to quad display, please press quad key. Press 8 division key to back to 8 divisions screen mode. (2) On Playback mode, please click “stop” to exit the playback mode. -
Page 22: Carbox Player On Pc Site
F. Carbox Player on PC site 1. Through Carbox Player on PC site (1) Use HDD to playback directly Execute the CarBox2.exe from CD-ROM , the display as showing below. Click Play button to select HDD; or click open file to choose the files from hard disk, and then double-click the file you want to play. - Page 23 (1). Control interface description Snapshot Configuration Disk backup Playback Tool, HDD format, language setting. Previous File Previous Frame Backward Play Pause Stop Play Next Frame Next file...
-
Page 24: Snapshot
(1). Snapshot Capture：Screen shoot Click the icon to capture the footage screen. The Image will be save as .bmpfile format. Player will show the backup folder automatically. The default directory is the Snapshot folder. (Under the Player installation folder) (2). - Page 25 Image Choose the resolution: Quality High / Normal / Low Set the fps D1 resolution：5~15 CIF resolution：5~30 Image Two format: D1 / CIF Format Car License, Driver (For Company car, Taxi, or Information fleet) Encrypt the SD card to prevent others who not permitted to access the Password SD card.
- Page 26 actions, like Playback footage, setting, format SD, need the password. ★ Note： Upper character and lower is different. GMT setting, to adjust the time zone. ( need GPS signal to adjust the accurate time zone Time Zone automatically) If choose 「Time setting」, you need to set the time by yourself.
-
Page 27: Backup
(3). Backup Backup folder: Choose the folder that backup file will save. You can backup the footage on the SD card to your computer for data backup. Choose icon to start the backup function as the following : Step1.Choose the Local Disk, Removable Storage or Backup File. - Page 28 Step2.Choose the file you want to backup on the SD card. Step3.Choose backup file audio and format Backup format： ● SD format *.sd ● AVI format .avi Note：*.sd format file contain image/ speed/ location and G-SENSOR data. *.avi format only can backup the video and audio.
-
Page 29: Playback
Step4.You also can choose a period to backup the footage during the period. Step5.Choose the backup folder. Step6.Start to backup. Step7. Backup Completed. (4). Playback Playback the footage: Choose the file in SD Card or in the computer to playback. -
Page 30: Format
1. Choose the Local Disk, Removable Storage or Backup File 2. Choose the file (5). Format Format：Format the SD Card、Restore the SD card format to windows format. Language setting, Firmware version. For Format and restore SD card, please reference the next item... -
Page 31: Playback Date Selection
(6). Playback date selection Selecting by date Quick switching by minutes Selecting by Hours/Minutes (24-hours) (7). Latitude & Longitude Coordinates Position Latitude & Longitude (8). Speed meter Speed (9). G SENSOR G-sensor: Detect & record G-force data. - Page 32 G SENSOR X: The G-force from left & right of the car. Y: The G-force from front & back of the car. Z: The G-force from upside & downside of the (10). Volume control Volume BAR: Click the left button of mouse control to adjust the volume degree.
-
Page 33: Client Software For Viewing Directly(Select Models With 3G Modules)
G. 3G client software for viewing directly(select models with 3G modules) Executive Playback software “3G ClientApp.exe ” , the playback screen shown as below. Enter the username and password and then press “Login” button to login screen. ★ Note: To perform this software will require DirectX 9.0 or more. ■... - Page 34 Equipments list display all the connecting equipments. Be able to play real-time image form all channels. Lift click mouse to open equipment channel than click on chennel to view the real-time image. Functional explaination Single display Quad display 9 divisions display 16 disvisions display Muti-divisions...
- Page 35 Real-time message interface (be able to turn matter, equipment list, and map display mode) ■ Satiline-map Click the icon to connect real-time image. ■ Tracking screen Display 3G real-time tracking to know the driving path.
- Page 36 ■ Setting (page 1) Setting the FPS, recording function, auto turn over page, and language.
- Page 37 ■ Setting page 2 Setting 3G function, recording, and e-mail. 3G Client alarm: Setting the alarm function after server. When the alarm start, the message would show on the message box. If the e-mail function trun on, the message would send to your e-mail box at the sametime.
- Page 38 SMTP list table...
-
Page 39: Hdd Format
H. HDD Format When should you format the HDD? For brand new HDD or an used HDD which is used in other equipment before, it should be formatted before using. (1) Format in your computer Step1.Pulg your SD card into card reader or SD slot in your computer. - Page 40 Step 5. When the format procedure finish, the following pop window will show on your screen. (After finish the SD card format, please remove your SD card from the computer and insert into the slot again. Then you can start to proceed the related setup on the Player can do.
- Page 41 2. Select “Yes” and Click “Enter’’ to start formatting. 3. When the screen back to LIVE mode ,the formatting is completed.
-
Page 42: Restore Storage Device
Restore Storage Device Before restore the SD card, remember to backup your footage on the SD card, if needed. Q. When you need to restore the SD card? A. When you want to use the SD card on other purpose, you need to proceed the “Restore”... - Page 43 Step3.The following window will pop up, Click 『Yes』to start restore the SD. Step4.Now system will pop up the window to proceed the format procedure, please choose 『Quick format』， then click 『Start』.
- Page 44 Step5. Click 「Yes」 to start formatting the SD card Step6. Click "OK" to finish restore SD card. Step7.After finished, press 『OK』。Then the SD card format is normal windows format.
-
Page 45: Internet Setting
J. 3G INTERNET SETTING Please confirm whether the code number is closed or not. Confirm if The Telecommunication providers’ APN is the same with Dial-Up Number’s information, if not, please follow all 3G Config Tool setting file steps. Please double click and open the setting page as below: The explanation for setting up:... - Page 46 1. UserName: No need in common 2. Password: No need in common 3. Server Address: Enter Server IP address setting----Default Server IP Address is 61.221.66.200 4. Server Port: Default Sever Port is 13579, Not recommend to change the original setting). 5.
- Page 47 ii. Please put USB FLASH DRIVER into the PC’s USB drive port, choice & click the proper disk storage. And input the following data as below: iii. After inputting, pick <o.k.> and process saving, the 3G Module information setting would be finished at this moment.
- Page 48 v. After re-start, please pick the 3G internet item up in contents to confirm whether the 3G information updating successful or not. When updating successfully, all the updating information would shown on the 3G module related web information. When 3G connecting successfully, the right upper screen would show signal.
-
Page 49: Capacity Evaluation Of Continuous Recording Storage Device
K. Capacity Evaluation of Continuous Recording Storage Device Assumption of the minimum record time for Mobile DVR: 8Ch/15FPS , Statics Recording and different capacity of Hard Disk. The following recording table is evaluated by 1TB. - Page 50 More product information Please visit VACRON web-site http://www.vacron.com Made in Taiwan...
