7. Fault finding the product

7.1 Grundfos Eye operating indications

Grundfos Eye

7.2 Fault resetting

You can reset a fault indication in one of the following ways:
• When you have eliminated the fault cause, reset the pump
manually by pressing the
normal duty.
• If the fault disappears by itself, the pump attempts to reset
automatically and the fault indication disappears if automatic
reset is successful and provided that you have enabled "Auto
reset" in the service menu.

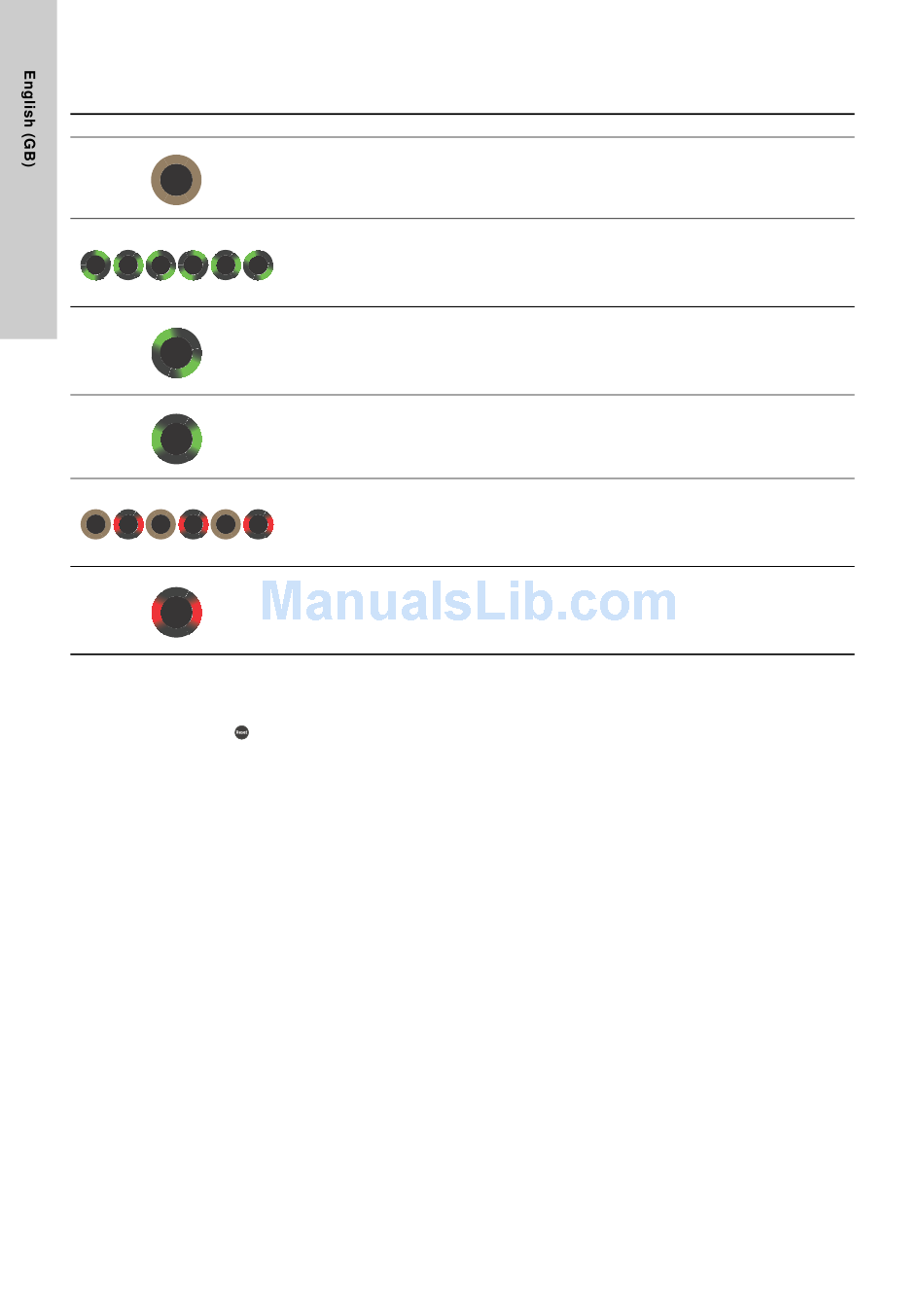

10
Indication
No lights are on.
Two opposite green indicator lights running in the
direction of rotation of the pump.
Two opposite green indicator lights at a 45 °
angle is the icon used throughout this document
for pump running.
Two opposite green indicator lights permanently
on.
Two opposite red indicator lights flashing
simultaneously.
Two opposite red indicator lights is the icon used
throughout this document for pump stopped.
button. The pump then reverts to
Description
The power is off.
The pump is not running.
The power is on.
The pump is running.
The power is on.
The pump is running.
The power is on.
The pump is not running.
Alarm.
The pump has stopped.
Alarm.
The pump has stopped.
