LAUNCH X431 PAD Scopebox User's Manual

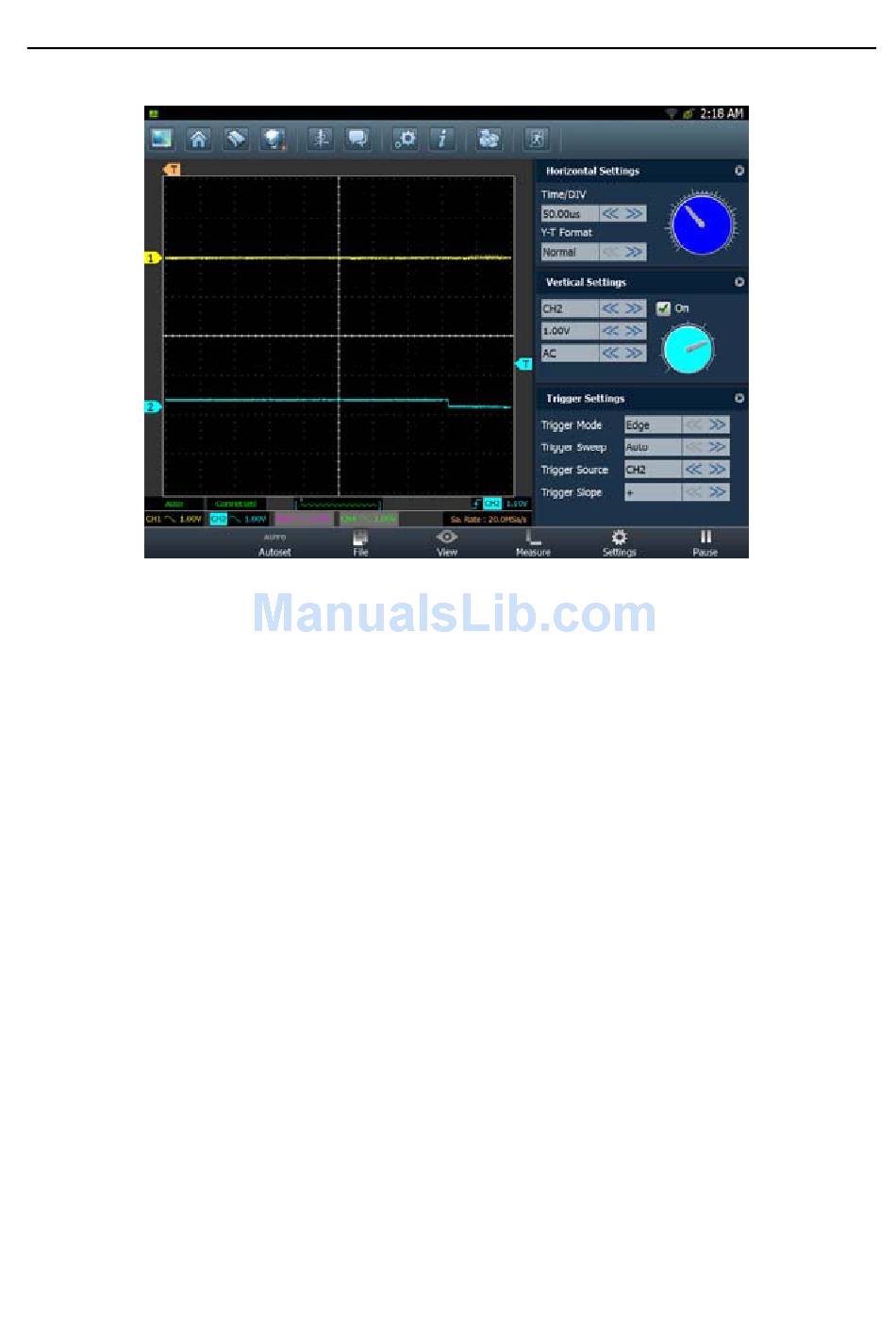

Fig.3-1
Button descriptions:
[Autoset]: It indicates auto trigger setting. Based on the characteristics of
measured signal, the oscilloscope will automatically set the horizontal baseline,
vertical sensitivity and trigger condition so that the waveform can be displayed.
[File]: provides waveform record and waveform replay.
[View]: Calibration and display settings are available.
[Measure]: includes signal source measurement, cursor measurement and
clear measurement.
[Settings]: displays or hides the parameter settings area including horizontal
settings, vertical settings and trigger settings.
[Start/stop]: starts/stops collecting oscilloscope waveforms.

3.3 Operations

3.3.1 Channel selection and attributes setting

<1> Channel selection
There are two ways available for channel selection: (See Fig. 3-2)
A. Select from the channel column shown at the bottom of the waveform
7
