2 Structure and Accessories

2.1 Scopebox structure

Table 2-1 shows the ports and indicators for X-431 PAD Scopebox
No. Name
1 CH1
2 CH2
3 CH3
4 CH4
5 External trigger
6 Fixed
generator

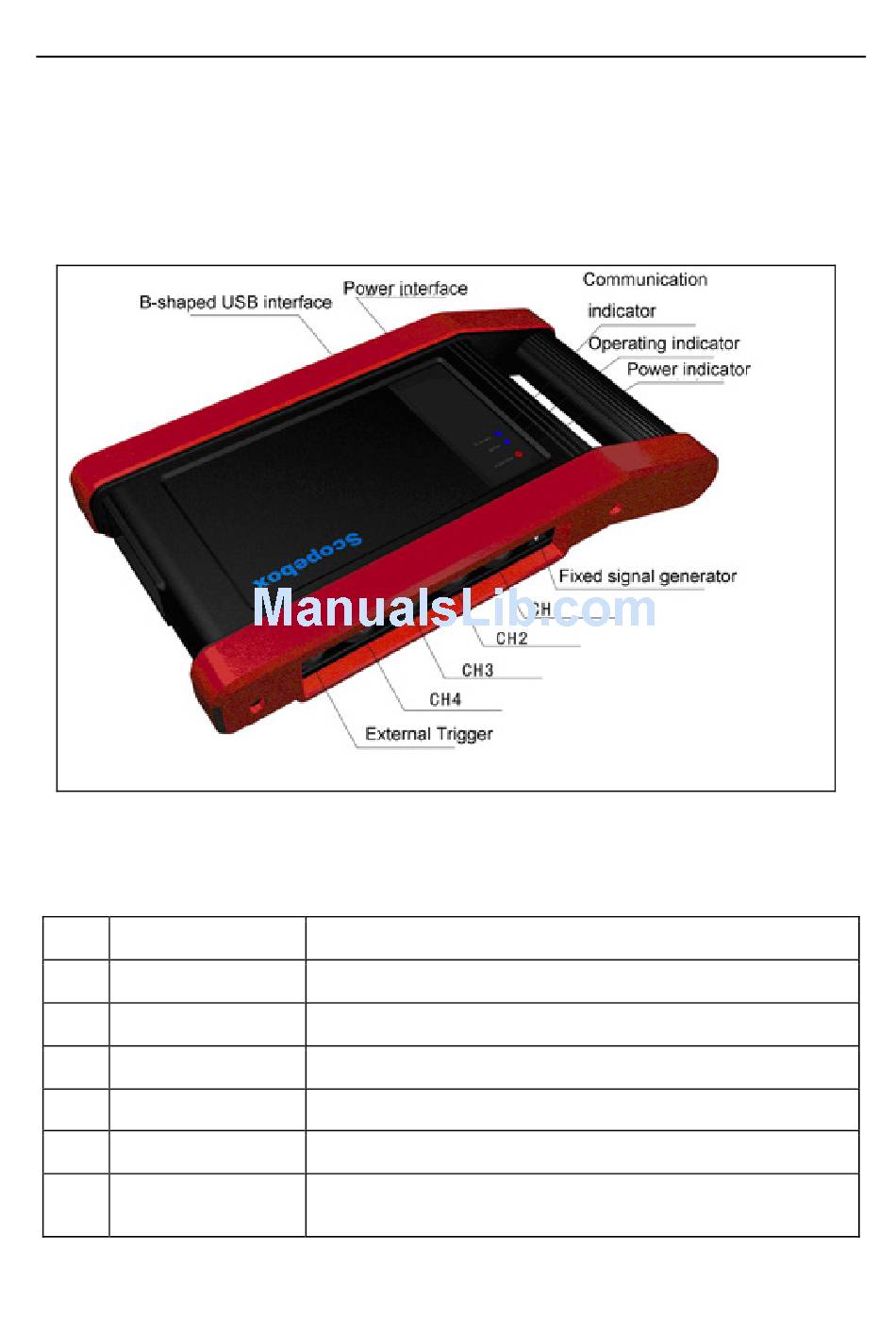

Fig 2-1 Scopebox Structure Diagram
Description
Channel 1
Channel 2
Channel 3
Channel 4
External trigger signal
signal Generate a square signal with fixed 1K frequency
