display area;
B. Select from Vertical settings.
Note: For better comparison and identification, each channel and waveform
are marked in different colors.
<2> Channel attributes setting
Channel attributes can be set via horizontal settings and vertical settings.
Horizontal Settings
User can make some settings directly by clicking << or >> next to options.
Alternatively, Click

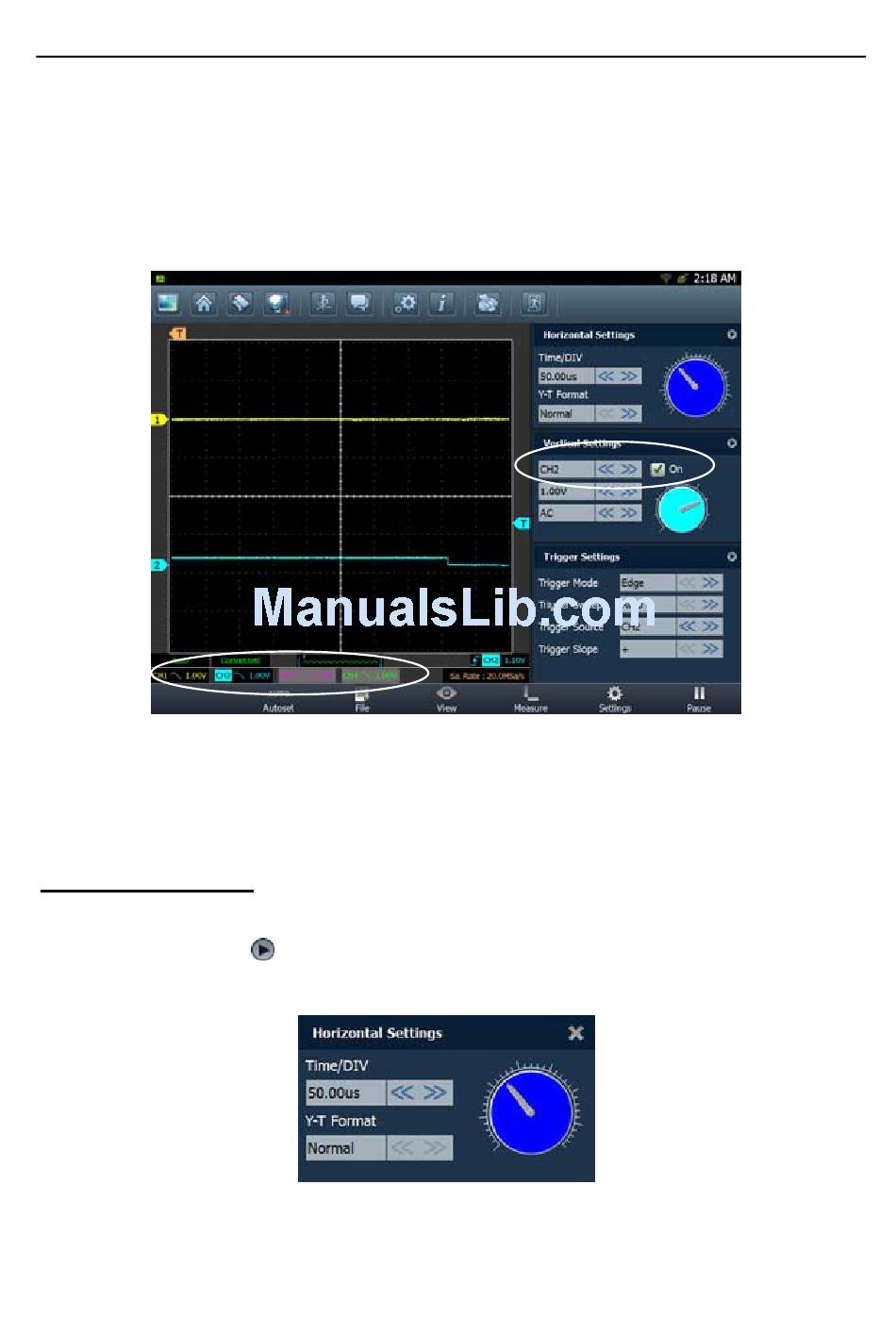

settings to make more settings. See Fig. 3-3.
Fig.3-2
located in the upper right corner of the horizontal
Fig. 3-3
