LAUNCH X431 GDS Scopebox Manual

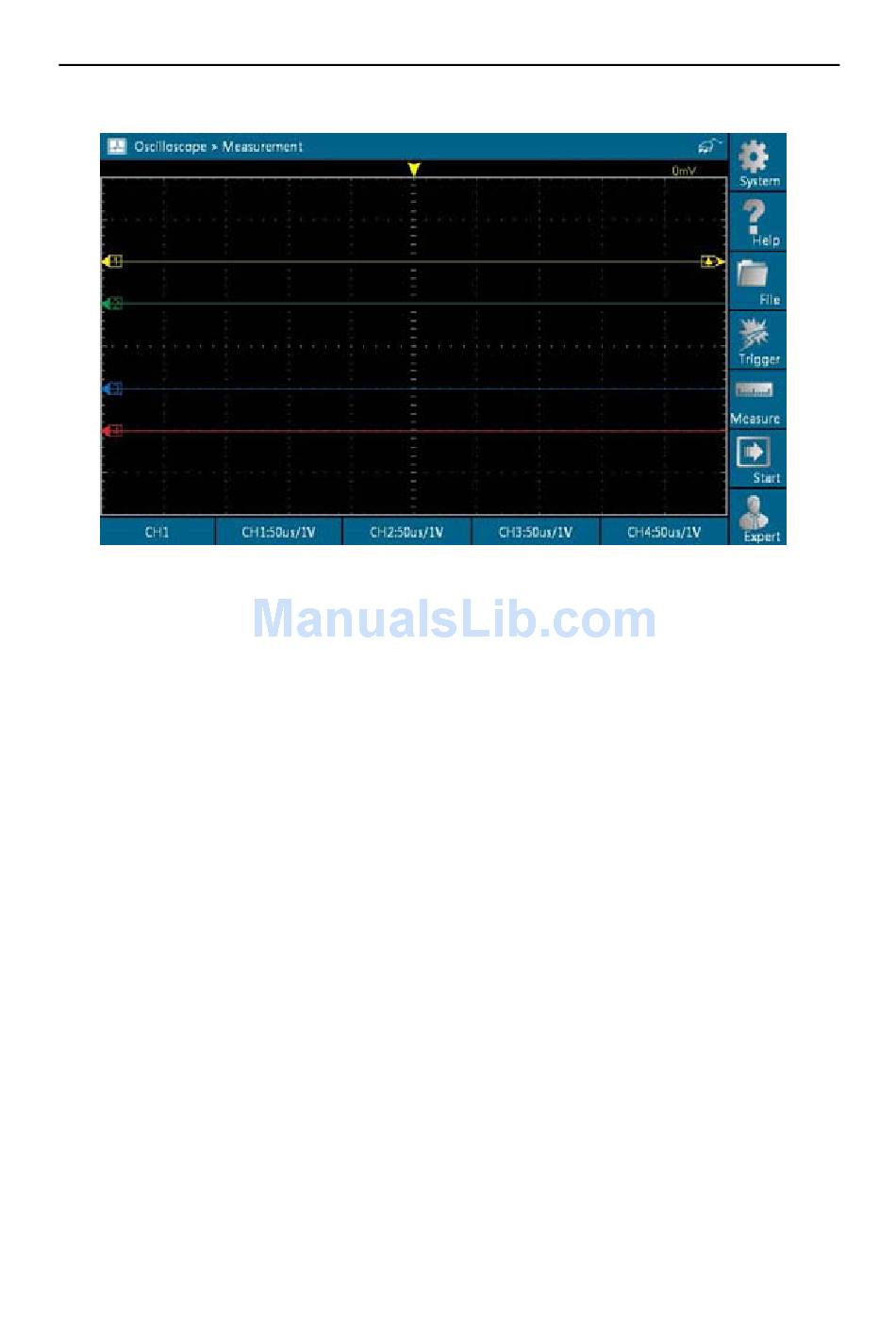

Fig.3-1
Button descriptions:
[System]: includes show desktop, Wi-Fi setting, current version and
exit the program.
[Help]: displays help files.
[File]: supports import waveform, store waveform, store graphics,
record waveform, print waveform, show/hide the grid, display cached
interface, turn pages, and clear.
[Trigger]: The following options are available: one-channel trigger /
alternation trigger, trigger channel source, trigger types, trigger
modes, horizontal trigger hold-off setting and auto calibration.
[Measure]: measures the time and the voltage for the waveforms.
[Start/stop]: starts/stops collecting oscilloscope waveforms.
[Expert]: provides automatic pre-setting function of specialized
sensors.
