Clarke PW2 Operation & Maintenance Instructions Manual

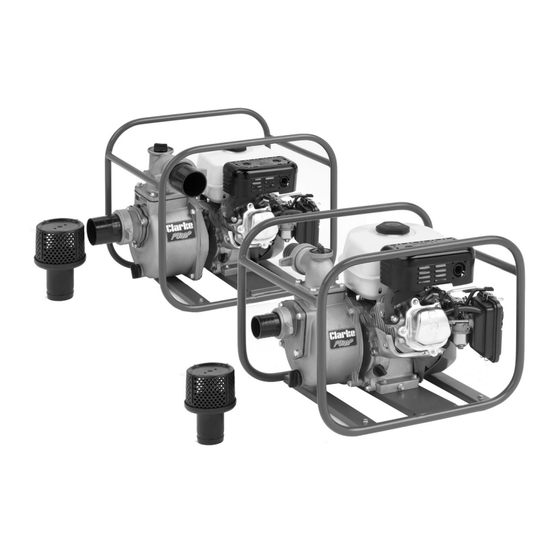

Petrol driven water pump
Hide thumbs
Also See for PW2:
- Operating & maintenance instructions (25 pages) ,
- Operating & maintenance instructions (25 pages)
Related Manuals for Clarke PW2
Summary of Contents for Clarke PW2
- Page 1 PETROL DRIVEN WATER PUMP MODEL NO: PW2 & PW3 PART NO: 7140640 & 7140645 OPERATION & MAINTENANCE INSTRUCTIONS ORIGINAL INSTRUCTIONS GC0317...
-
Page 2: Environmental Recycling Policy
GUARANTEE This CLARKE product is guaranteed against faulty manufacture for a period of 12 months from the date of purchase. Please keep your receipt as proof of purchase. -
Page 3: Safety Precautions
SAFETY PRECAUTIONS CAUTION: As with all machinery, there are certain hazards involved with its operation and use. Exercising caution will reduce the risk of personal injury. 1. Always observe all safety precautions for the handling of fuel. 2. Thoroughly familiarise yourself with this unit & its operation, and follow all instructions in this manual. - Page 4 The suction strainer supplied must always be used to ensure that large stones or other objects cannot be drawn up, as this would cause severe damage to the pump. The images may show a PW3 pump although PW2 pumps are similar.
-
Page 5: Before Use
BEFORE USE REMEMBER: Contaminated water is water containing small solids in suspension, NOT slurry, sludge, sand or mud. Place the pump on a firm foundation as near to the water source as possible. Ensure there is adequate drainage for the discharged water and that there is no danger of damage to property as a result of water being dischaged. - Page 6 GENERAL USE OF THE PUMP 1. Connect the suction and discharge hoses to the pump housing using the hose clamps and gaskets supplied to achieve an airtight seal. There must be no damage of any kind to the hoses which must be well protected and supported.
-
Page 7: Operation
This air bleed may he accomplished by providing a 1/4" line from the top of the pump back to the liquid source. Clarke International will not assume any responsibility for damage to the pump if no check valve is used in the discharge line. -
Page 8: Shutting Down
• Clearance should be 0.70-0.80mm. • The recommended spark plug for both the PW2 and PW3 pump is “Torch/F6RTC”. Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com... -
Page 9: Changing The Oil
CHANGING THE OIL The oil in the engine should be changed after the first 20 hours use and thereafter every 6 months or 100 running hours. Remove the dipstick and drain plug and then drain the oil. Re-fill and check the level as described on page 5. CAUTION: PROLONGED EXPOSURE TO USED OIL IS HARMFULL. -
Page 10: Troubleshooting
TROUBLESHOOTING Problem Cause Solution Engine fails to start Lack of fuel in the tank Fill the tank as necessary No fuel reaching the Fuel cock is isolated carburetor Engine switch is in the Off Set the engine switch to the position On position. - Page 11 Problem Cause Solution Low output from Engine speed too low. Increase the engine speed. pump Impeller clogged Clean the strainer and ensure it is not submerged in mud or sediment etc. Suction or delivery line Clear any obstruction and obstructed. ensure there are no kinks in the delivery line.
- Page 12 ENGINE COMPONENTS DIAGRAM Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com...
- Page 13 ENGINE COMPONENTS LIST ESCRIPTION ESCRIPTION Oil Drain Plug Oil Plug Washer 31 Seal Bearing 6205 32 Crankcase Cover Crankshaft Oil Seal 33 Bearing 6205 Crankcase 34 Crankcase Gasket Regulating Sway Bar 35 Set Pin Washer 36 Oil Dipstick Split Pin 37 Oil Dipstick Assembly Oil Sensor 38 Crankshaft Oil Seal...
- Page 14 ENGINE COMPONENTS LIST (CONT) ESCRIPTION ESCRIPTION Rocker Parts Set 88 Exhaust Muffler Pusher Guide 89 Exhaust Gasket Pushrod 90 Nut M6 Tappet 91 Bolt M6 x 22 Camshaft Assembly 92 Crankcase Sideplate Exhaust Valve 93 Bolt M6 x 8 Intake Valve 94 Fan Hood Assembly Valve Spring 95 Recoil Starter Assembly...
- Page 15 PUMP COMPONENTS DIAGRAM - PW2 Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com...
- Page 16 PUMP COMPONENTS LIST - PW2 Description Description 114 23” Frame sub-assembly 131 Bolt 115 Nut M6 132 O-Ring 116 Rubber Foot 133 Drain Plug 117 Bolt M6 x 12 134 2” Hose Union 118 Nut M8 135 2” Inlet Flange...
- Page 17 PUMP COMPONENTS DIAGRAM - PW3 Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com...
- Page 18 PUMP COMPONENTS LIST - PW3 Description Description 114 23” Frame sub-assembly 130 Drain Plug 115 Nut M6 131 3” Hose Union 116 Rubber Foot 132 3” Inlet Flange 117 Bolt M6 x 12 133 Gasket 118 Nut M8 134 Front Housing 119 Bolt M8 x 32 135 Gasket 120 Rear Housing...
-
Page 19: Specifications
SPECIFICATIONS Model Engine Engine Model 168F-2A 168F-2A Engine Type 4-stroke OHV single 4-stroke OHV single cylinder with forced cylinder with forced air cooling air cooling Motor HP 6.5HP (4.0kw) 6.5HP (4.0kw) Rotational velocity 3600 rpm 3600 rpm Fuel tank Capacity 3.6L 3.6L Oil Capacity 0.6L... - Page 20 DECLARATION OF CONFORMITY - PW2 Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com...
- Page 21 DECLARATION OF CONFORMITY - PW2 Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com...
- Page 22 DECLARATION OF CONFORMITY - PW3 Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com...
- Page 23 DECLARATION OF CONFORMITY - PW3 Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com...
