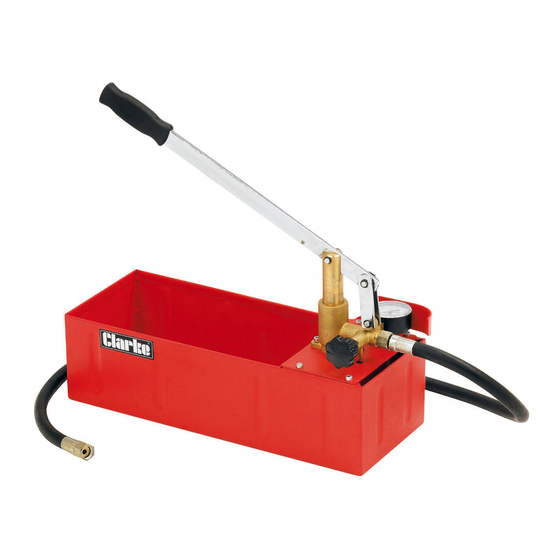

- Page 1 PRESSURE TEST PUMP MODEL NO: PTP100 PART NO: 5060205 OPERATION & MAINTENANCE INSTRUCTIONS ORIGINAL INSTRUCTIONS GC0720 - REV 2...
- Page 2 INTRODUCTION Thank you for purchasing this CLARKE Pressure Testing Pump. Before attempting to use the product, it is essential that you read this manual thoroughly and carefully follow all instructions given. In doing so you will ensure the safety of yourself and that of others around you, and you can also look forward to the product giving you long and satisfactory service.
- Page 3 PARTS SUPPLIED When unpacking, check for damage and /or shortages etc. Any found should be reported to your CLARKE dealer where the pump was originally purchased. This Pressure testing pump should include the following: 1 x Pressure testing pump assembly 1 x Locking pin &...
- Page 4 GENERAL SAFETY RULES WARNING: AS WITH ALL EQUIPMENT, THERE ARE CERTAIN HAZARDS INVOLVED WITH THE USE AND OPERATION OF THIS PRODUCT. EXERCISING CAUTION WILL REDUCE THE RISK OF PERSONAL INJURY. 1. ALWAYS thoroughly familiarise yourself with this product and its operation, and follow all instructions in this manual.
- Page 5 USING THE PRESSURE TEST PUMP POINTS TO CONSIDER 1. If you are not a trained plumber or heating engineer, seek professional guidance on the correct use of this equipment in conjunction with the system to be tested. 2. Establish the correct test pressure for the installation to be tested by referring to the system specification and /or the manufacturer’s recommendations.
- Page 6 5. If the system is free from leaks, the pressure shown on the gauge will not drop during the test period. If the pressure is being lost, there is a leak in the system and a visual inspection should be made to locate the leak. 6.
- Page 7 O-ring seal Oil filter Connecting tube Oil hose Pressure gauge Reservoir Steel ball M6 x 16 screw Spring Pin and chain Screw plug O-ring seal O-ring PARTS DIAGRAM Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com...
