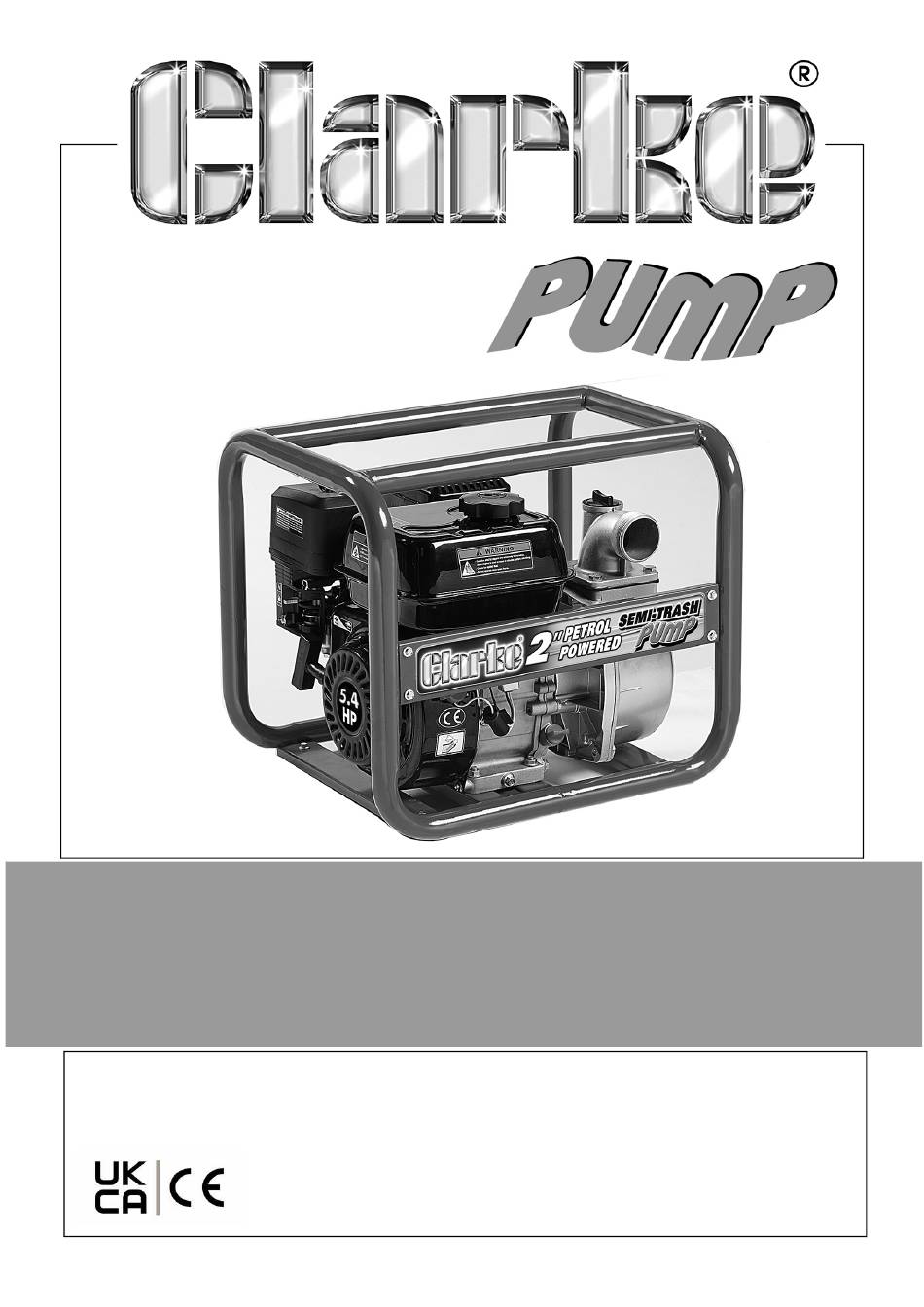

- Page 1 ENGINE DRIVEN SEMI TRASH 2” PUMP MODEL NO: PS50 PART NO: 7230167 OPERATION & MAINTENANCE INSTRUCTIONS ORIGINAL INSTRUCTIONS GC1124...
- Page 2 INTRODUCTION Thank you for choosing this CLARKE Pump. Before attempting to use this product, please read this manual thoroughly and follow the instructions carefully. In doing so you will ensure the safety of yourself and that of others around you, and you can look forward to your purchase giving you long and satisfactory service.
-
Page 3: General Safety Rules
GENERAL SAFETY RULES WARNING: WHEN USING PUMPS, ALWAYS FOLLOW BASIC SAFETY PRECAUTIONS TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK AND PERSONAL INJURY. READ ALL INSTRUCTIONS BEFORE YOU OPERATE THIS PUMP AND SAVE THEM FOR FUTURE REFERENCE. 1. ALWAYS obey all safety precautions for the handling of fuel. 2. -
Page 4: General Safety In The Workplace
5. ALWAYS wear safety glasses. (Everyday glasses are not safety glasses). CARE OF PUMPS 1. The CLARKE service department can replace damaged components. 2. ALWAYS examine the pump for damage that can effect the operation of the pump. Repair any damaged parts. - Page 5 ASSEMBLY INSTALL THE SUCTION HOSE 1. Fit the rubber washer into the adaptor making sure that it is seated correctly. 2. Screw the adaptor onto the pump securely. 3. Slide the hose on to the adaptor and lock in position with the jubilee clip supplied.
- Page 6 INSTALL THE DISCHARGE HOSE 1. Fit the rubber washer into the other adaptor making sure it is seated correctly. 2. Screw the adaptor onto the pump securely. 3. Slide the hose on to the adaptor and lock in position with the jubilee clip supplied.
-
Page 7: Before Use
BEFORE USE PUMP PLACEMENT For best pump performance, place the pump near the water level, and use hoses that are no longer than necessary. That will enable the pump to produce the greatest output with the least self-priming time. As head (pumping height) increases, pump output decreases. The length, type, and size of the suction and discharge hoses can also significantly affect pump output. - Page 8 • Fill until the oil touches the threads in the oil fill tube. • Oil capacity (See page 20). • We recommend that you use CLARKE SAE10W30 oil (Part No: 3050845) in this pump available from your CLARKE dealer. 5. Replace the oil filler cap.
-
Page 9: Recommended Fuel
ADD FUEL WARNING: REFUEL IN A VENTILATED AREA, AWAY FROM SOURCES OF IGNITION. WARNING: IF THE ENGINE IS HOT, LET IT COOL BEFORE REFUELING. WARNING: KEEP FUEL OUT OF THE REACH OF CHILDREN. RECOMMENDED FUEL Only use unleaded petrol. 1. Remove the fuel tank cap. •... -
Page 10: Operation
OPERATION WARNING: WHEN YOU OPERATE THE PUMP, THE EXHAUST MUFFLER WILL BE VERY HOT. WARNING: DO NOT OPERATE THE ENGINE IN A CLOSED SPACE, MAKE SURE THAT THERE IS SUFFICIENT AIRFLOW AROUND THE PUMP DUE TO HARMFUL EMMISSIONS/ FUMES FROM THE ENGINE. PRIME THE PUMP The pump must be primed before use. -
Page 11: Starting The Engine
STARTING THE ENGINE 1. Set the fuel valve to the ON position. 2. To start a cold engine, move the choke lever to the ‘ON’ position. • To restart a warm engine, move the choke lever to the ‘OFF’ position. 3. -
Page 12: Setting The Engine Speed
5. Pull the starting handle lightly until you start to feel resistance. Then pull up and away suddenly to start the engine. NOTE: You might need to do this more than once. WARNING: WHEN THE PUMP HAS STARTED, RELEASE THE STARTING HANDLE SLOWLY TO PREVENT INJURY/DAMAGE AS IT RETURNS. -
Page 13: Shutting Down The Pump
SHUTTING DOWN THE PUMP To stop the pump in an emergency, set the engine switch to ‘OFF’. 1. Use the throttle lever to decrease engine speed to minimum. 2. Set the engine switch to “OFF”. 3. Turn the fuel valve to “OFF”. AFTER USE 1. -
Page 14: Maintenance
MAINTENANCE CLEARING BLOCKAGES 1. Remove the hoses and adaptors from the pump. 2. Remove the four bolts shown in the picture. 3. Remove the front cover. 4. Clear debris and clean the inner parts using clean water. 5. Replace the front cover and secure using the four bolts removed in step CHANGING THE ENGINE OIL CAUTION: PROLONGED EXPOSURE TO USED ENGINE OIL IS DANGEROUS,... -
Page 15: Changing The Spark Plug
• Fill until the oil touches the threads in the oil fill tube. • Oil capacity (0.6 L). • We recommend that you use CLARKE SAE10W30 oil (Part No: 3050845) in this pump available from your CLARKE dealer. 6. Replace the oil filler cap/dipstick. -
Page 16: Changing The Air Filter
2. Use the spark plug spanner supplied to remove the spark plug. 3. Remove any carbon that has collected around the electrode. 4. Check the spark plug gap (a), it should be between 0.7 and 0.8 mm, adjust if necessary. 5. -
Page 17: Maintenance Record
4. Once it is dry, Dip in clean engine oil and squeeze out excess oil. • DO NOT operate the pump without the air cleaner installed as this will cause premature wear to the engine. STORAGE 1. Always keep the pump in a dust and damp free environment away from children. MAINTENANCE RECORD OIL CHANGE: ____________________________________________________________... -
Page 18: Troubleshooting
If a spark is present but engine will not start, consult your CLARKE dealer. The engine stops No fuel in tank. Add fuel to the tank. -
Page 19: Environmental Protection
Damaged impeller. Disassemble the pump and replace the impeller. If you cannot correct the fault, speak to your local dealer or the CLARKE International service department. ENVIRONMENTAL PROTECTION At the end of its working life, DO NOT discard this pump or its components with general household waste. -
Page 20: Specification
SPECIFICATION Item Specification Model No PS50 Pump Dimensions (L X W X H) 505 x 405 x 440 mm Pump Weight (Kgs) 22 kg Water Classification Semi-dirty water Max Solids In Suspension 15 mm Inlet/outlet Size 2” BSP Maximum Flow... -
Page 21: Component Parts
COMPONENT PARTS A full set of engine parts list and diagrams are available from the CLARKE International service department. WATER PUMP ASSEMBLY Description Description Hose clip Pump body Filter cover Case sealing Filter body Casing Bolt Washer Washer Impeller Adaptor ring nut... - Page 22 DECLARATIONS OF CONFORMITY -UK Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com...
- Page 23 DECLARATIONS OF CONFORMITY -CE Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com...
