Summary of Contents for Clarke psp125b

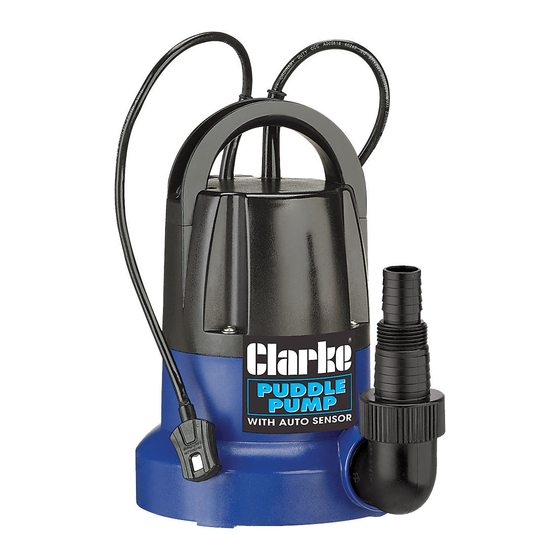

- Page 1 400W PUDDLE PUMP WITH AUTO SENSOR MODEL NO: PSP125B PART NO: 7230694 OPERATION & MAINTENANCE INSTRUCTIONS LS0216...
-
Page 2: Environmental Recycling Policy
INTRODUCTION Thank you for purchasing this CLARKE 400W Puddle pump with Auto Sensor. This pump is designed for pumping clean water only. It is NOT designed for pumping slurry, sludge, mud or heavily polluted water, or any water containing chemicals or other acidic contaminants including salt water. -
Page 3: Safety Instructions
SAFETY INSTRUCTIONS GENERAL PUMP SPECIFIC 1. Read all instructions before use 1. Do not pump explosive / and save these instructions for flammable liquids or chemicals. future use. 2. Never allow the pump to run dry 2. An approved residual current or operate out of the water device (RCD) which has a (manual mode only). -
Page 4: Electrical Connections
ELECTRICAL CONNECTIONS WARNING: READ THESE ELECTRICAL SAFETY INSTRUCTIONS THOROUGHLY BEFORE CONNECTING THE PRODUCT TO THE MAINS SUPPLY. Connect the mains lead to a standard, 230 Volt (50Hz) electrical supply through an approved 13 amp BS 1363 plug, or a suitably fused isolator switch. If the plug has to be changed because it is not suitable for your socket, or because of damage, it must be removed and a replacement fitted, following the wiring instructions shown below. -
Page 5: Fitting The Elbow
2. Connect a suitable hose (not supplied) to the pump outlet. • Suitable hoses are available from your local Clarke dealer. FITTING THE HOSE ADAPTER The 3 step hose adaptor can be screwed onto the elbow if required. -
Page 6: Manual Operation
MANUAL OPERATION The pump can also be switched on manually by inserting the sensor into the socket on the side of the pump. NOTE: If the sensor is inserted into the socket, the pump will run continuously. NOTE: Do not allow the pump to run dry. -
Page 7: Maintenance
IS UNPLUGGED FROM THE MAINS SUPPLY. IF THE UNIT IS HARD WIRED, ENSURE THE CIRCUIT BREAKER IS OPEN. This pump should require no maintenance other than regular cleaning. If the pump starts to show signs of wear or damage, contact your CLARKE dealer for advice. CLEANING 1. -
Page 8: Troubleshooting
6. Water level too low. - Try using the pump in manual operation mode. 7. If the pump still fails to start, consult your CLARKE dealer for advice. PUMP WILL 1. Check that the inlet is not blocked. -
Page 9: Parts List And Diagram
PARTS LIST & DIAGRAM Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com... -
Page 10: Parts List
PARTS LIST Power Cable And Plug 23-3 Yellow-green Wire Water Sensor 23-4 Lug Plate Self Tapping Screw 23-5 Heat Shrinkable Tube Handle 23-6 Gasket Self Tapping Screw 23-7 Bolt O-ring Wave Washer Customized Self Tapping Screw Bearing Gasket Rotor Pump Housing Stator Nylon Secure Pressing Cap Bush... -
Page 11: Declaration Of Conformity
DECLARATION OF CONFORMITY Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com...
