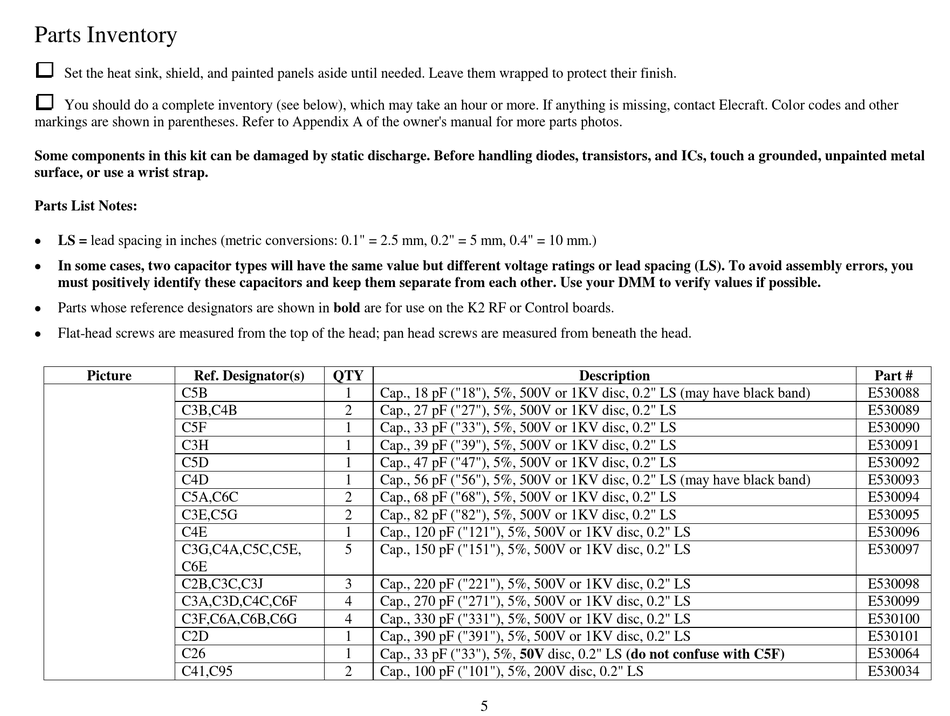

Parts Inventory

Set the heat sink, shield, and painted panels aside until needed. Leave them wrapped to protect their finish.
You should do a complete inventory (see below), which may take an hour or more. If anything is missing, contact Elecraft. Color codes and other
markings are shown in parentheses. Refer to Appendix A of the owner's manual for more parts photos.
Some components in this kit can be damaged by static discharge. Before handling diodes, transistors, and ICs, touch a grounded, unpainted metal
surface, or use a wrist strap.
Parts List Notes:

LS = lead spacing in inches (metric conversions: 0.1" = 2.5 mm, 0.2" = 5 mm, 0.4" = 10 mm.)

In some cases, two capacitor types will have the same value but different voltage ratings or lead spacing (LS). To avoid assembly errors, you
must positively identify these capacitors and keep them separate from each other. Use your DMM to verify values if possible.

Parts whose reference designators are shown in bold are for use on the K2 RF or Control boards.

Flat-head screws are measured from the top of the head; pan head screws are measured from beneath the head.
Picture Ref. Designator(s)
C5B
C3B,C4B
C5F
C3H
C5D
C4D
C5A,C6C
C3E,C5G
C4E
C3G,C4A,C5C,C5E,
C6E
C2B,C3C,C3J
C3A,C3D,C4C,C6F
C3F,C6A,C6B,C6G
C2D
C26
C41,C95
QTY
1 Cap., 18 pF ("18"), 5%, 500V or 1KV disc, 0.2" LS (may have black band)
2 Cap., 27 pF ("27"), 5%, 500V or 1KV disc, 0.2" LS
1 Cap., 33 pF ("33"), 5%, 500V or 1KV disc, 0.2" LS
1 Cap., 39 pF ("39"), 5%, 500V or 1KV disc, 0.2" LS
1 Cap., 47 pF ("47"), 5%, 500V or 1KV disc, 0.2" LS
1 Cap., 56 pF ("56"), 5%, 500V or 1KV disc, 0.2" LS (may have black band)
2 Cap., 68 pF ("68"), 5%, 500V or 1KV disc, 0.2" LS
2 Cap., 82 pF ("82"), 5%, 500V or 1KV disc, 0.2" LS
1 Cap., 120 pF ("121"), 5%, 500V or 1KV disc, 0.2" LS
5 Cap., 150 pF ("151"), 5%, 500V or 1KV disc, 0.2" LS
3 Cap., 220 pF ("221"), 5%, 500V or 1KV disc, 0.2" LS
4 Cap., 270 pF ("271"), 5%, 500V or 1KV disc, 0.2" LS
4 Cap., 330 pF ("331"), 5%, 500V or 1KV disc, 0.2" LS
1 Cap., 390 pF ("391"), 5%, 500V or 1KV disc, 0.2" LS
1
Cap., 33 pF ("33"), 5%, 50V disc, 0.2" LS (do not confuse with C5F)
2 Cap., 100 pF ("101"), 5%, 200V disc, 0.2" LS
5
Description Part #
E530088
E530089
E530090
E530091
E530092
E530093
E530094
E530095
E530096
E530097
E530098
E530099
E530100
E530101
E530064
E530034
