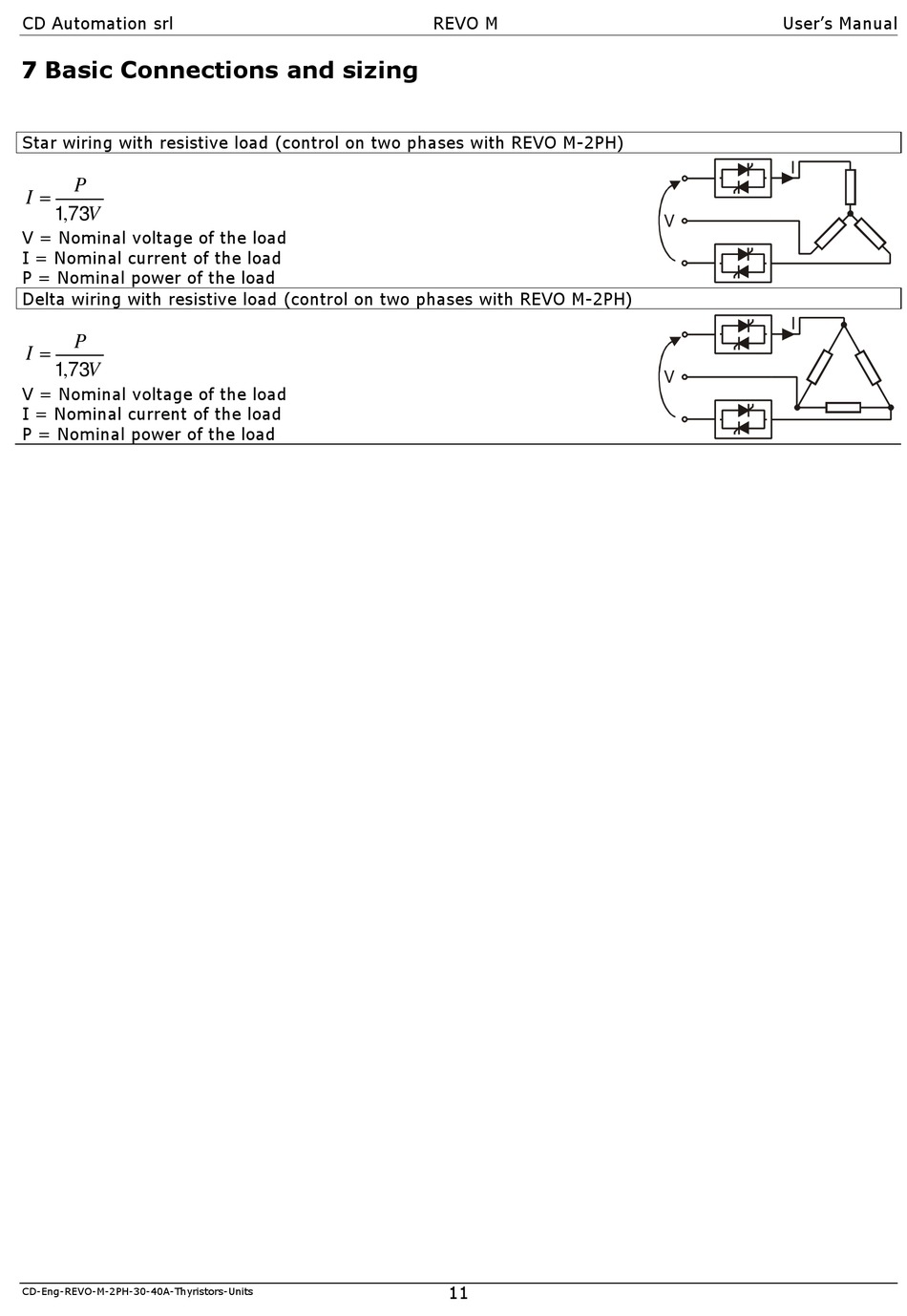

7 Basic Connections and sizing

Star wiring with resistive load (control on two phases with REVO M-2PH)
P

I
1, 73 V
V = Nominal voltage of the load
I = Nominal current of the load
P = Nominal power of the load
Delta wiring with resistive load (control on two phases with REVO M-2PH)
P

I
1, 73
V
V = Nominal voltage of the load
I = Nominal current of the load
P = Nominal power of the load
