Summary of Contents for CYP PRO-SDI44

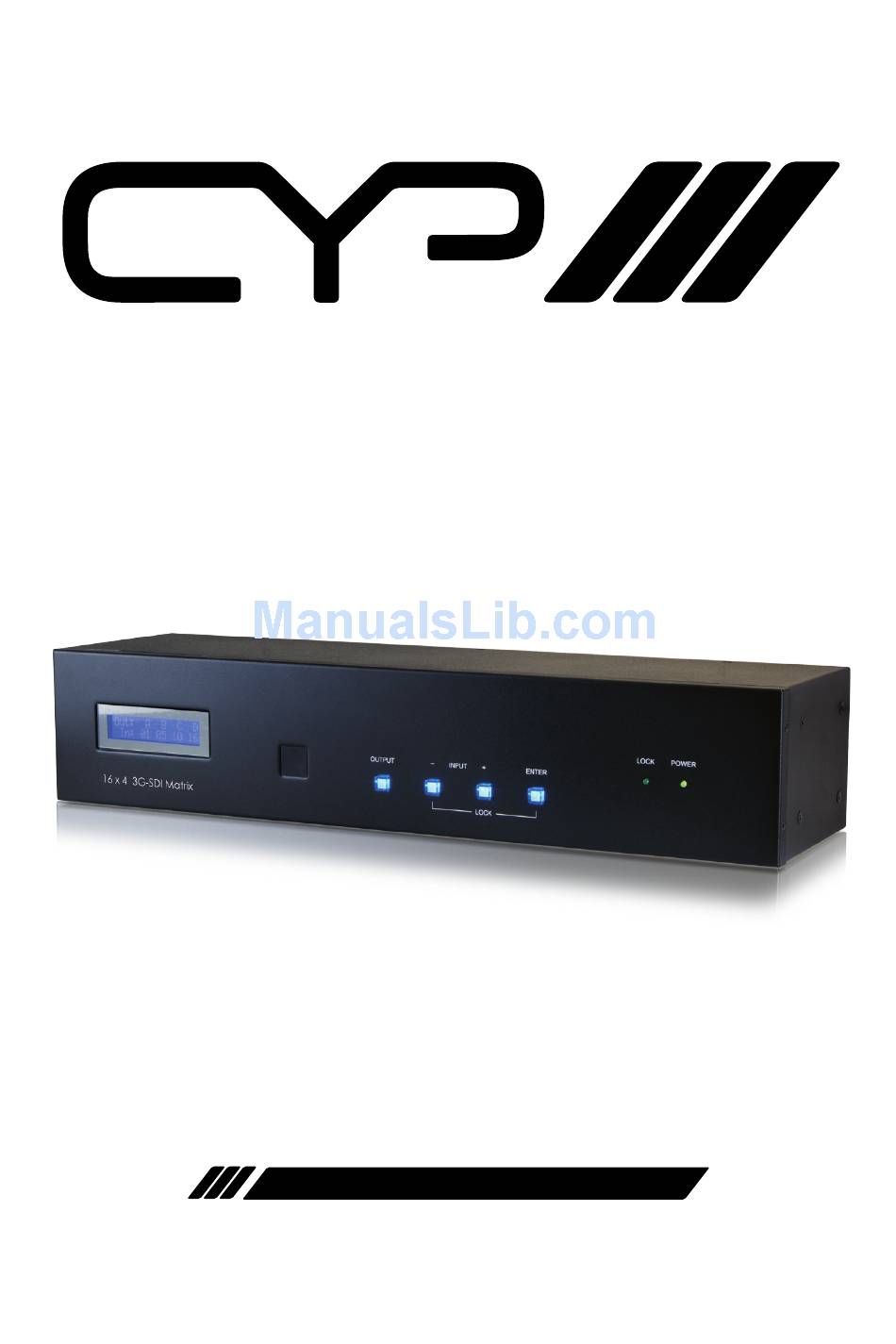

- Page 1 PRO-SDI44/84/124/164 4x4/8x4/12x4/16x4 3G-SDI Matrix Switchers OPERATION MANUAL...
- Page 3 DISclaIMerS The information in this manual has been carefully checked and is believed to be accurate. CYP (UK) Ltd assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. CYP (UK) Ltd assumes no responsibility for any inaccuracies that may be contained in this document.
-
Page 4: Safety Precautions
Safety precautIoNS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons. -
Page 5: Table Of Contents
coNteNtS 1. Introduction ...........6 2. applications ...........6 3. package contents ........6 4. System requirements ......6 5. features ..........7 6. operation controls and functions ..8 6.1 Front Panel ........... 8 6.2 Rear Panel ............. 9 7. rS-232 protocols ......... 10 7.1 Pin Assignment ........10 7.2 Commands ..........10 8. -
Page 6: Introduction
1. INtroDuctIoN The 3G-SDI Matrix series allows SD-SDI, HD-SDI and 3G-SDI signals to be shown on SDI displays while ensuring high bit-rates of 2.970 Gbps to give fast signal transmission without signal loss. The PRO-SDI164 allows 16 3G-SDI sources to be switched between 4 SDI equipped displays to distances of up to 300m. -
Page 7: Features
5. featureS 3G-SDI input sources can be selected and split or switched to four 3G-SDI displays simultaneously Operation at 2.970 Gbps, 2.970/1.001 Gbps, 1.485 Gbps, 1.485/1.001 Gbps and 270 Mbps Supports SMPTE 425M (Level A and Level B), SMPTE 424M, SMPTE 292M, SMPTE 259M-C Provides the Equalized and re-clocked transmission Supports signal input and output distance of up to 300m for SD... -
Page 8: Operation Controls And Functions
6. operatIoN coNtrolS aND fuNctIoNS 6.1 front panel LOCK POWER OUTPUT INPUT ENTER LOCK lcD Monitor: This LCD monitor displays the configuration of the input and output selections. The upper line displays the outputs A, B, C, & D. The lower line displays each output’s selected input. Ir receiver: Receives the IR signal from the remote control included in the package. -
Page 9: Rear Panel
SDI player. The amount of input slots will depend on the model. MoDel INputS outputS PRO-SDI164 PRO-SDI124 PRO-SDI84 PRO-SDI44 SDI output: Connect to the SDI displays with an SDI cables for displaying the output. It can also be connected to another SDI converter/extender to extend the signal. -
Page 10: Rs-232 Protocols
7. rS-232 protocolS 7.1 pin assignment Pins definition of modem cable unit remote controller Definition Definition Baud Rate: 19200 bps Data bit: 8-bits Parity: None Stop bit: 1-bit 7.2 commands command Description poweron enter Power ON poweroff enter Power OFF portx xx enter x= a~d output, xx=01~16 input... -
Page 11: Remote Control
8. reMote coNtrol power: Press the button to power the unit on/off. output: Press an output port from A~D first then select an input number and press enter to confirm the selection. INput: Press the number keys to select the desired input source from 01~16 after selecting the output then press enter to confirm the selection. -
Page 12: Connection Diagram
9. coNNectIoN DIaGraM SDI INPUT SDI OUTPUT DC 5V RS-232 Note: The above diagram shows the 16 by 4 SDI matrix (PRO-SDI164). -
Page 13: Specifications
10. SpecIfIcatIoNS SMpte Standard 425M Level A & B, 424M, 292M, 259M-C SDI transmission rates2.970 Gbps and 2.970/1.001 Gbps, 1.485Gbps, 1.485/1.001 Gbps and 270 Mbps Input ports 16/12/8/4×BNC (SDI/HD-SDI/3G-SDI) output ports 4×BNC (SDI/HD-SDI/3G-SDI) SDI Support 480i, 576i, 720p@50/59.94,60 resolution 1080i@50/59.94/60 1080p@23.98/24/25/29.97/30/50/59.94/60 1080PsF@23.98/24/25/29.97/30 power Supply... -
Page 14: Acronyms
11. acroNyMS acroNyM coMplete terM Bandwidth 2.97Gbit/s ≈ 3G Bayonet Neill-Concelman Serial Digital Interface... - Page 16 CYP (UK) Ltd., Unit 7, Shepperton Business Park, Govett Avenue, Shepperton, Middlesex, TW17 8BA Tel: +44 (0) 20 3137 9180 | Fax: +44 (0) 20 3137 6279 Email: sales@cypeurope.com www.cypeurope.com...
