ASSEMBLY

Assembly requires two persons. Set the treadmill in a cleared area and remove all packing materials. Do not
dispose of the packing materials until assembly is completed. Note: The underside of the treadmill walking belt is
coated with high-performance lubricant. During shipping, a small amount of lubricant may be transferred to the
top of the walking belt or the shipping carton. This is a normal condition and does not affect treadmill perfor-
mance. If there is lubricant on top of the walking belt, simply wipe off the lubricant with a soft cloth and a mild,
non-abrasive cleaner.
Assembly requires the included hex keys and your own phillips screwdriver
cutters .

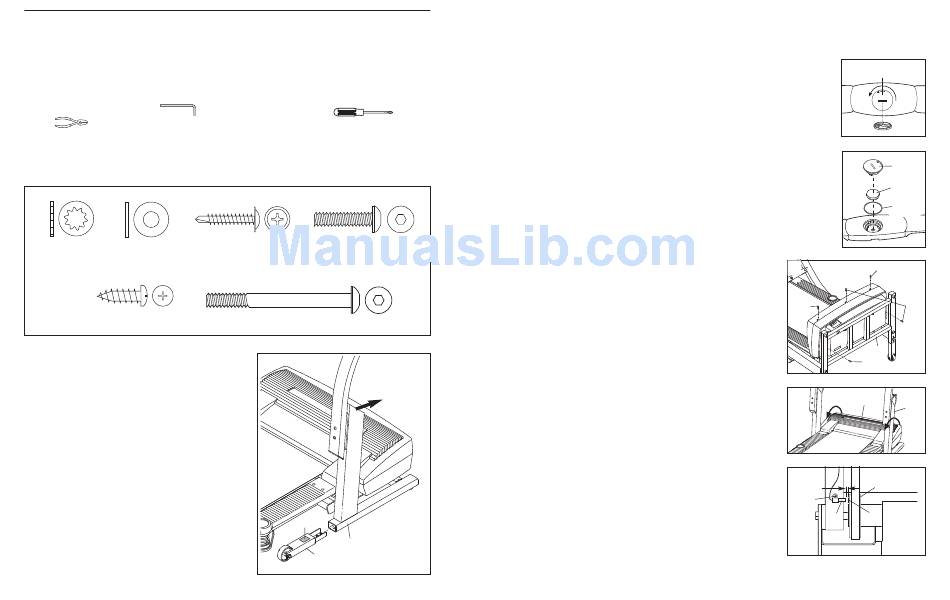

Use the drawings below to identify the assembly hardware. The number in parentheses below each drawing is
the key number of the part, from the PART LIST on pages 34 and 35. The number after the parentheses shows
the quantity needed for assembly. Note: If a part is not in the parts bag, check to see if it is preattached to
one of the parts to be assembled.
Internal Star
1/4" Washer
Washer (77)–4
(39)–4
Latch Screw (134)–2
1. Make sure that the power cord is unplugged.
With the help of a second person, carefully raise the
Upright Base (97) to the position shown. Insert one of
the Extension Legs (92) into the Upright Base. (Note: It
may be helpful to tip the Upright Base forward as you in-
sert the Extension Leg.) Make sure that the Warning
Decal (91) is in the indicated location.
Insert the other Extension Leg (not shown) in the same
way.
1" Tek Screw (135)–2 Extension Leg Bolt (96)–4
Console Bolt (76)–4
1
91
97
92
6
PROBLEM: The chest pulse sensor does not function properly
SOLUTION: a. If the chest pulse sensor does not function properly, see CHEST PULSE SENSOR TROU-
BLESHOOTING on page 9.
b. If the chest pulse sensor still does not function properly, the battery
should be changed. To replace the battery, locate the battery cover
on the back of the sensor unit. Insert a coin into the slot in the cover
and turn the cover counterclockwise to the "open" position. Remove
the cover.
and wire
Remove the old battery from the sensor unit. Insert a new CR 2032
battery, making sure that the writing is on top. In addition, make sure
that the rubber gasket is in place in the sensor unit. Replace the bat-
tery cover and turn it to the closed position.
PROBLEM: The displays of the console do not function properly
SOLUTION: a. Remove the key from the console and UNPLUG THE
POWER CORD. With the help of a second person,
carefully tip the Upright Base (97) down as shown.
Remove the five Hood Screws (44). Note: A phillips
screwdriver with at least a 5" shaft is required.
With the help of a second person, carefully raise the
Upright Base (97) as shown. Carefully pivot the Hood
(123) off.
Locate the Reed Switch (22) and the Magnet (19) on
the left side of the Pulley (18). Turn the Pulley until the
Magnet is aligned with the Reed Switch. Make sure
that the gap between the Magnet and the Reed
Switch is about 3 mm (1/8 in.). If necessary, loosen
the Screw (23) and move the Reed Switch slightly.
Retighten the Screw. Reattach the Hood, and run the
treadmill for a few minutes to check for a correct
speed reading.
31
b
Battery Cover
Battery
Cover
Battery
Rubber
Gasket
a
44
44
44
97
44
123
97
18
3 mm
23
19
22
Top
