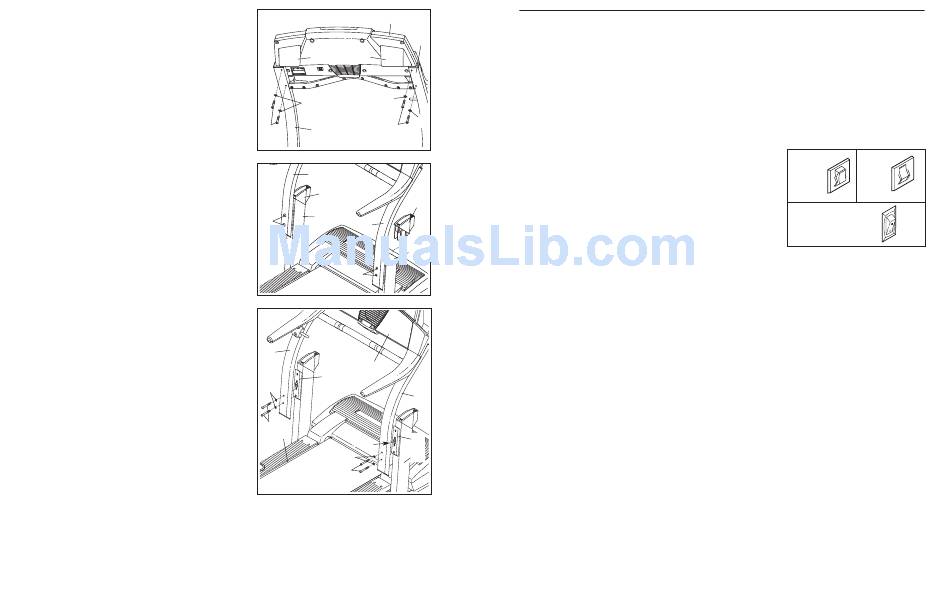

5. Set the Console Base (101) on the Uprights (80, 84).
Attach the Console Base to the each Upright with two
Console Bolts (76) and two Internal Star Washers (77).
Be careful not to pinch the Wires (not shown) in the
Uprights. Note: Start all four Console Bolts before tight-
ening any of them.
Make sure that the Left and Right Trays (109, 111) are
pressed into the Console Base (101).
6. Press a CD Holder (85) into each side of the Upright Base
(97).
If the Wheels (not shown) are touching the floor, or if the
treadmill rocks slightly, see HOW TO LEVEL THE
TREADMILL on page 26.
If you wish to adjust the height of the Uprights (80, 84),
go to step 7. If the Uprights are at the desired height,
tighten the four Upright Bolts (86) and go to step 8.
7. Note: The Uprights (80, 84) can be attached at three dif-
ferent heights. The Uprights are preattached in the mid-
dle position. Adjusting the Uprights requires two persons.
Whilst a second person holds the Console Base (101)
and the Uprights (80, 84), loosen the four Upright Bolts
(86). Then, remove the two Upright Bolts and Upright Star
Washers (127) from the Right Upright (80). Raise or lower
the Right Upright to the desired height, being careful not
to damage the Wire Harness (74). If the Upright Spacer
(79) falls, press it back onto the Upright Base (97).
Loosely thread the two Upright Bolts and Upright Star
Washers back into the Right Upright and the Upright Base.
Adjust the Left Upright (84) in the same way. (Note:
There is not a wire harness in the Left Upright.) Make
sure that both Uprights are at the same height. Lift
the Walking Platform (13) to make sure that it is cen-
tred between the Uprights. Retighten all four Upright
Bolts (86).
8. Make sure that all parts are properly tightened before you use the treadmill. Note: Extra hardware may
be included. Keep the included hex keys in a secure place. The large hex key is used to adjust the walking
belt (see page 30). To protect the floor or carpet, place a mat under the treadmill. If there are thin sheets of
clear plastic on the decals, remove them.
5
101
111
109
77
77
76
76
80
6
84
85
97
86
80
86
7
84
101
79
127
86
13
74
127
86
8
TROUBLESHOOTING
84
Most treadmill problems can be solved by following the steps below. Find the symptom that applies, and
follow the steps listed. If further assistance is needed, please call our Customer Service Department.
PROBLEM: The power does not turn on
SOLUTION: a. Make sure that the power cord is plugged into a properly earthed outlet. (See page 8.) If an ex-
tension cord is needed, use only a 3-conductor, 1 mm
m (5 ft.). Important: The treadmill is not compatible with GFCI-equipped outlets.
77
b. After the power cord has been plugged in, make sure that the key is fully inserted into the console.
c. Check the circuit breaker located on the treadmill
near the power cord. If the switch protrudes as
shown, the circuit breaker has tripped. To reset the
circuit breaker, wait for five minutes and then press
the switch back in.
85
d. Check the on/off switch located on the treadmill near
the power cord. The switch must be in the on position.
97
PROBLEM: The power turns off during use
SOLUTION: a. Check the circuit breaker located on the treadmill frame near the power cord (see c. above). If
the circuit breaker has tripped, wait for five minutes and then press the switch back in.
b. Make sure that the power cord is plugged in. If the power cord is plugged in, unplug it, wait for
five minutes, and then plug it back in.
c. Remove the key from the console. Reinsert the key fully into the console.
d. Make sure that the on/off switch is in the on position.
e. If the treadmill still will not run, please call our Customer Service Department.
PROBLEM: The console is too high or too low
80
SOLUTION: a. The height of the console is adjustable. See assembly step 7 on page 8 for instructions.
PROBLEM: The treadmill rocks during use
79
SOLUTION: a. See HOW TO LEVEL THE TREADMILL on page 26.
