14.

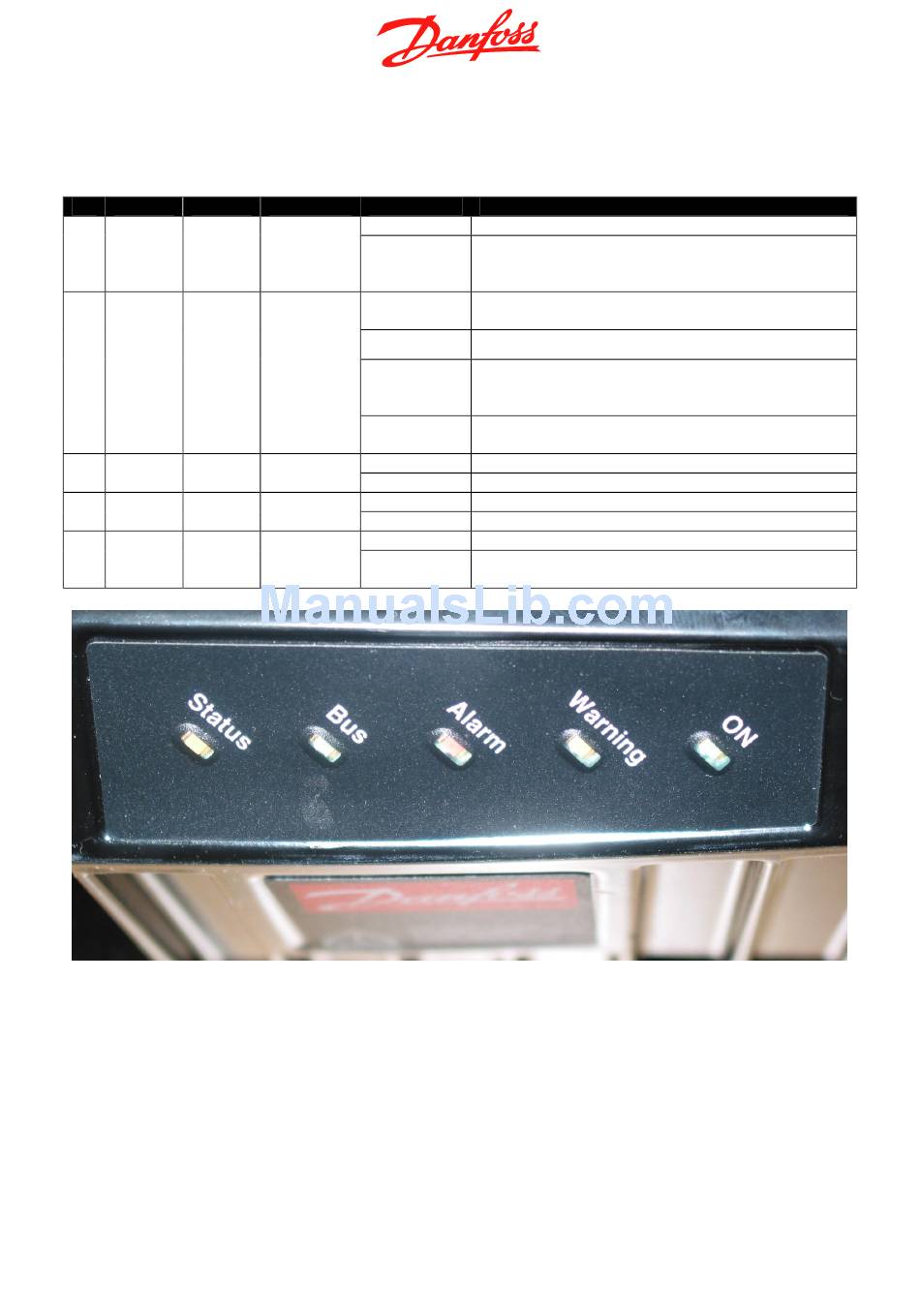

LED indications

No. Name Colour
1 Status Yellow
2 Bus Green
3 Alarm Red
4 Warning Yellow
5 On Green
Release 01/2003
Revise 08/01/2003 by DD Service Manager, Steffen Sundbæk
Service Manual FCD 300
OK status Alternatives
Off Off
On
On On
(If bus
option is
Slow flashing
present, else
Fast flashing
Off)
Off
Off Off
Flashing
Off Off
Flashing
On On
Off
Function
Status is OK of the FCD
Corresponding to parameter setting. For further
information see design guide - parameter number 26 and
DeviceNet manual for specific DeviceNet signalling.
OK status for the field bus used
(not relevant for non field bus device)
Local operation or local stop
Interface working, but no communication with master
(see also field bus manual for more specific info)
(not relevant for non field bus device)
Not OK status for the field bus used
(not relevant for non field bus device)
No alarm is present
Flashing while trip/trip lock is present
No warring is present
Flashing while warning situation is present
The unit is powered from either line in or 24V DC
Power to the unit is missing from either line in or 24V
DC
